3TC5217-0AG4

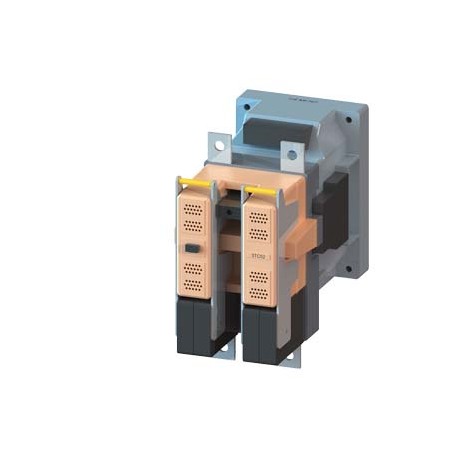

3TC5217-0AG4 SIEMENS Contactor, Size 8, 2-pole, DC-3 and 5, 220 A Auxiliary switch 22 (2 NO + 2 NC) 125V DC ..
$0.00USD
4917 in stock
Key Specifications
:
EAN:4011209134256
UPC:754554185217
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209134256 |
| UPC | 754554185217 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 236 mm |
| width | 135 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 240 mm |
| ● at DC | 12g / 5 ms, 5,5g / 10 ms |
| Group Code | R711 |
| arcing time | 20 ... 30 ms |
| — upwards | 10 mm |
| ● at DC-1 | |
| Date5/4/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LDP----- |
| — forwards | 20 mm |
| Product Group | 5807 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| — backwards | 0 mm |
| — downwards | 10 mm |
| Commodity Code | 85364900 |
| Product family | 3TC contactors for switching DC voltage, 1-pole and 2-pole |
| last modified: | 12/2/2021 |
| Net Weight (kg) | 9,825 Kg |
| number of poles | 2 |
| operating power | |
| type of voltage | DC |
| — at the side | 10 mm |
| ● rated value | 125 V |
| fastening method | screw fixing |
| required spacing | |
| Country of origin | Germany |
| Marine / Shipping | other |
| mounting position | +/-22,5° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface; standing, on horizontal mounting surface |
| product extension | |
| size of contactor | 8 |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| ● during storage | -50 ... +80 °C |
| ● for live parts | |
| Packaging Dimension | 329,00 x 329,00 x 210,00 |
| Product Description | Contactor, Size 8, 2-pole, DC-3 and 5, 220 A Auxiliary switch 22 (2 NO + 2 NC) 125V DC DC operation |
| ambient temperature | |
| closing delay at DC | 120 ... 400 ms |
| opening delay at DC | 22 ... 35 ms |
| operating frequency | |
| operational current | |
| product designation | Contactor |
| ● at DC-1 maximum | 1 000 1/h |
| ● at DC-3 at DC-5 | |
| ● at DC-3 maximum | 600 1/h |
| ● at DC-5 maximum | 600 1/h |
| ● auxiliary switch | Yes |
| ● during operation | -25 ... +55 °C |
| — solid or stranded | 2x (1 ... 2,5 mm²) |
| ● for grounded parts | |
| Product Lifecycle (PLM) | PM300:Active Product |
| design of the fuse link | |
| — at 24 V rated value | 220 A |
| ● at 24 V rated value | 10 A |
| ● at 48 V rated value | 10 A |
| ● at 60 V rated value | 10 A |
| General Product Approval | Functional Safety/Safety of Machinery |
| product type designation | 3TC |
| — at 110 V rated value | 220 A |
| — at 220 V rated value | 220 A |
| — at 440 V rated value | 220 A |
| — at 600 V rated value | 220 A |
| — at 750 V rated value | 220 A |
| ● at 110 V rated value | 8 A |
| ● at 125 V rated value | 6 A |
| ● at 220 V rated value | 2 A |
| ● at 230 V rated value | 5.6 A |
| ● at 400 V rated value | 3.6 A |
| ● at 500 V rated value | 2.5 A |
| ● at 600 V rated value | 0.4 A |
| ● of contactor typical | 10 000 000 |
| relative humidity minimum | 10 % |
| ● instantaneous contact | 2 |
| ● side-by-side mounting | Yes |
| Export Control Regulations | AL : N / ECCN : N |
| Modular version (EF001126) | true |
| ● for auxiliary contacts | |
| Standard lead time ex-works | 15 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Type Examination Certificate | UK Declaration of Conformity |
| control supply voltage at DC | |
| operational current at AC-15 | |
| operational current at DC-12 | |
| operational current at DC-13 | |
| ● for main current circuit | screw-type terminals |
| Substance Prohibitance (Date) | 03/01/2017 |
| type of electrical connection | screw-type terminals |
| ● at 1 current path at DC-1 | |
| insulation voltage rated value | 1 000 V |
| ● with side-by-side mounting | |
| closing power of magnet coil at DC | 30 W |
| holding power of magnet coil at DC | 30 W |
| operational current at AC-12 maximum | 10 A |
| Article Number (Market Facing Number) | 3TC5217-0AG4 |
| Functional Safety/Safety of Machinery | Declaration of Conformity |
| Voltage type for actuating (EF008242) | DC |
| ● at 1 current path at DC-3 at DC-5 | |
| ● for auxiliary and control circuit | screw-type terminals |
| ● function module for communication | No |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| — with type of assignment 2 required | 3NE1332-4D (400 A) (750 V, 6 kA) |
| number of NC contacts for main contacts | 0 |
| number of NO contacts for main contacts | 2 |
| reference code according to IEC 81346-2 | Q |
| shock resistance at rectangular impulse | |
| number of poles for main current circuit | 2 |
| — with type of coordination 1 required | 3NE1332-4D (400 A) (750 V, 6 kA) |
| mechanical service life (switching cycles) | |
| ● with 2 current paths in series at DC-1 | |
| number of CO contacts for auxiliary contacts | 0 |
| number of NC contacts for auxiliary contacts | 2 |
| number of NO contacts for auxiliary contacts | 2 |
| type of connectable conductor cross-sections | |
| — finely stranded with core end processing | 2x (0.75 ... 1.5 mm²) |
| type of voltage of the control supply voltage | DC |
| Rated control supply voltage Us at DC (EF003980) | ['125', '125'] |
| ● with 2 current paths in series at DC-3 at DC-5 | |
| Region Specific PriceGroup / Headquarter Price Group | 41B / 41B |
| contact rating of auxiliary contacts according to UL | A600 / P600 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front with cover |
| ● for short-circuit protection of the main circuit | |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| identification number and letter for switching elements | 22 |
| protection class IP on the front according to IEC 60529 | IP00; IP20 with box terminal/cover |
| Rated operation power at DC-3 / DC-5 at 440 V (EF007026) | 82.0 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| product function mirror contact according to IEC 60947-4-1 | Yes |
| Number of main contacts as normally open contact (EF001374) | 2 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Rated operation current Ie at DC-3 / DC-5 at 440 V (EF007035) | 220 |
| ● of the contactor with added auxiliary switch block typical | 10 000 000 |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| ● for short-circuit protection of the auxiliary switch required | gG: 16 A (500 V, 1 kA) |
| Number of auxiliary contacts as normally closed contact (EF001377) | 2 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.03.2017 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| maximum permissible voltage for safe isolation between coil and main contacts according to EN 60947-1 | 660 V |
| General Product ApprovalFunctional Safety/Safety of MachineryConfirmationType Examination CertificateFunctional Safety/Safety of MachineryDeclaration of ConformityTest CertificatesType Examination CertificateUK Declaration of ConformitySpecial Test CertificateType Test Certificates/Test ReportMiscellaneousMarine / ShippingotherRailwayDangerous GoodConfirmationConfirmationTransport Information | General Product Approval |
Product Description
SIRIUS Contactor TAMANO 8, 2 POLOS DC-3 Y 5, 220ASIRIUS ContactorS AUXIL. 22 (2NA+2NC) ACCIONAM. BY DIRECT CURRENT DC 125V. Manufactured to order. Non-Cancelable Non-Returnable.
