3SX5601-3SB55

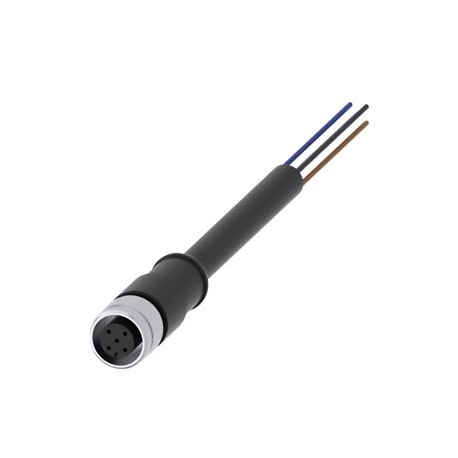

3SX5601-3SB55 SIEMENS Connecting cable with M12 socket 5-pole and free cable end, 5 m long for connecting po..
$0.00USD
4448 in stock
Key Specifications
:VersionClassificationeClass627-27-92-25eClass7.127-27-92-25eClass827-27-92-25eClass927-27-06-92eClass9.127-27-06-92ETIM5EC002594ETIM6EC002594ETIM7EC002594ETIM8EC002594IDEA45229UNSPSC1539-12-22-21
EAN:4047621064512
UPC:195125070530
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-27-92-25eClass7.127-27-92-25eClass827-27-92-25eClass927-27-06-92eClass9.127-27-06-92ETIM5EC002594ETIM6EC002594ETIM7EC002594ETIM8EC002594IDEA45229UNSPSC1539-12-22-21 | |
| EAN | 4047621064512 |
| UPC | 195125070530 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 15 |
| eClass | 6 |
| material | |
| Group Code | R711 |
| Confirmation | |
| Metal Factor | None |
| Date5/14/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 3750 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85444290 |
| Product family | Accessories and spare parts |
| last modified: | 1/12/2021 |
| Net Weight (kg) | 0,206 Kg |
| number of poles | 5 |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| ● of the contact | CuSn |
| Packaging Dimension | 248,00 x 257,00 x 43,00 |
| Product Description | Connecting cable with M12 socket 5-pole and free cable end, 5 m long for connecting position switch 3SE51/52 wired with M12 connector 5-pole |
| degree of pollution | 3 |
| protection class IP | IP67 |
| overvoltage category | 2 |
| insulation resistance | 100 MΩ |
| ● of contact coating | Au |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| color coding of the core | Pin 1 = BN, pin 2 = WH, pin 3 = BU, pin 4 = BK, pin 5 = GY |
| ● of contact main body | PUR |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| operating voltage rated value | 60 V |
| type of electrical connection | connector M12 |
| wire length of connection cable | 5 m |
| ambient temperature during operation | -25 ... +85 °C |
| Article Number (Market Facing Number) | 3SX5601-3SB55 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| operational current at 40 °C rated value | 4 A |
| connector coding of the M12 circular connector | A - Standard |
| Region Specific PriceGroup / Headquarter Price Group | 41K / 41K |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityConfirmation | General Product Approval |
Product Description
Connection cable with female M12 of 5 poles and end of free cable, 5 m long. To connect 3SE51/52 wired position switches with M12 connector, 5 poles.
