In Stock Hot Product
3SU1900-0JB10-0AA0

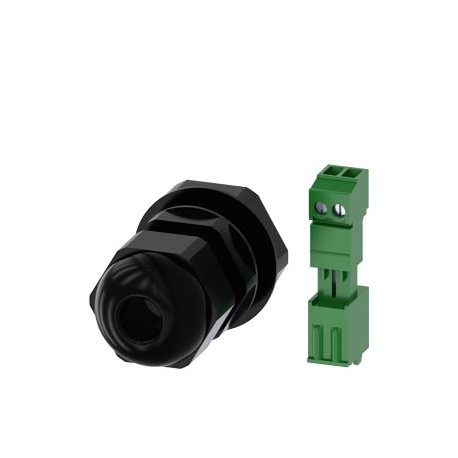

3SU1900-0JB10-0AA0 SIEMENS Metric screw connection M25 for routing the Round cable into AS-i-housing, for pl..
$0.00USD
4444 in stock
Key Specifications
:Confirmation
EAN:4047621006871
UPC:804766591327
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4047621006871 |
| UPC | 804766591327 |
| ETIM | 5 |
| IDEA | 4 |
| width | 29.7 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 29.7 mm |
| Group Code | R711 |
| Confirmation | |
| Metal Factor | None |
| Date5/12/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5453 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 39269097 |
| Product family | Enclosures |
| last modified: | 3/30/2022 |
| Net Weight (kg) | 0,020 Kg |
| mounting height | 31 mm |
| Country of origin | China |
| Test Certificates | Marine / Shipping |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| color of accessory | black |
| installation depth | 13 mm |
| product brand name | SIRIUS ACT |
| Packaging Dimension | 38,00 x 50,00 x 38,00 |
| Product Description | Metric screw connection M25 for routing the Round cable into AS-i-housing, for plastic or metal Enclosure with 4-6 control points, including 2-pole cable connector for AS-i-module |
| ambient temperature | |
| product designation | Metric cable gland |
| protection class IP | IP66, IP67, IP69(IP69K) |
| ● during operation | -25 ... +70 °C |
| design of the product | M25 for round cable and AS-i enclosure with 4 and 6 command points with 2-pin connector plug for AS-i module |
| material of accessory | Plastic |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| product type designation | 3SU1 |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 55 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Substance Prohibitance (Date) | 05/18/2017 |
| ● during storage and transport | -40 ... +80 °C |
| Type Test Certificates/Test Report | |
| Article Number (Market Facing Number) | 3SU1900-0JB10-0AA0 |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| Type of electrical accessory/spare part (EF005722) | - |
| Type of mechanical accessory/spare part (EF005994) | - |
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J |
| Compliance with the substance restrictions according to RoHS directive | Since: 18.05.2017 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityConfirmationUK Declaration of ConformityTest CertificatesMarine / ShippingType Test Certificates/Test ReportotherConfirmation | General Product Approval |
Product Description
METRIC SCREW CONNECTION M25 FOR INSERTING ROUND CABLE INTO AS-I ENCLOSURE FOR PLASTIC OR METAL ENCLOSURE W. 4-6 COMM. POINTS, INCL. 2-POLE CONNECTOR FOR AS-I MODULE. Manufactured to order. Non-Cancela
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
