In Stock Hot Product
3SU1900-0BQ10-0AA0

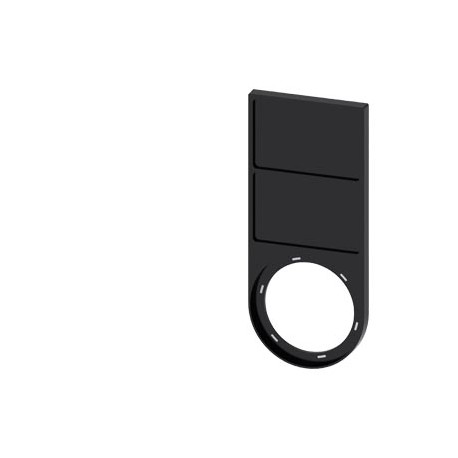

3SU1900-0BQ10-0AA0 SIEMENS Label holder, flat, Frame rounded off at the bottom black, for 2 labeling plates ..
$0.00USD
3407 in stock
Key Specifications
:Confirmation
EAN:4047621042664
UPC:804766591198
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4047621042664 |
| UPC | 804766591198 |
| ETIM | 5 |
| width | 27 mm |
| eClass | 6 |
| height | 17.5 mm |
| Group Code | R711 |
| Confirmation | |
| Date5/8/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | None |
| Product Group | 5452 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 39269097 |
| Product family | Labels |
| last modified: | 3/29/2022 |
| Net Weight (kg) | 0,003 Kg |
| Shape (EF000051) | - |
| Width (EF000008) | 27.0 |
| Colour (EF000007) | - |
| Country of origin | China |
| Height (EF000040) | 17.5 |
| Test Certificates | Marine / Shipping |
| Imprint (EF000131) | Without imprint |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS ACT |
| Packaging Dimension | 30,00 x 70,00 x 2,00 |
| Product Description | Label holder, flat, Frame rounded off at the bottom black, for 2 labeling plates 17.5 mm x 27 mm, for gluing |
| ambient temperature | |
| product designation | Label holder |
| protection class IP | IP66, IP67, IP69(IP69K) |
| ● during operation | 70 ... -25 °C |
| color of label holder | Black |
| design of the product | for labeling plate 17.5 x 27 mm |
| material of accessory | Plastic |
| shape of label holder | rounded below |
| Minimum order quantity | 10 |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| product type designation | 3SU1 |
| Outer diameter (EF000015) | - |
| fastening method of label | stick |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 55 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Substance Prohibitance (Date) | 10/01/2014 |
| Imprint ISO symbols (EF006094) | Without imprint |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12 |
| ● during storage and transport | 80 ... -40 °C |
| Type Test Certificates/Test Report | |
| Article Number (Market Facing Number) | 3SU1900-0BQ10-0AA0 |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| product function illuminated backing plate | No |
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J |
| shock resistance for railway applications according to EN 61373 | Category 1, Class B |
| vibration resistance for railway applications according to EN 61373 | Category 1, Class B |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityConfirmationUK Declaration of ConformityTest CertificatesMarine / ShippingType Test Certificates/Test ReportotherConfirmation | General Product Approval |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
