3SU1851-0AE00-2AB1

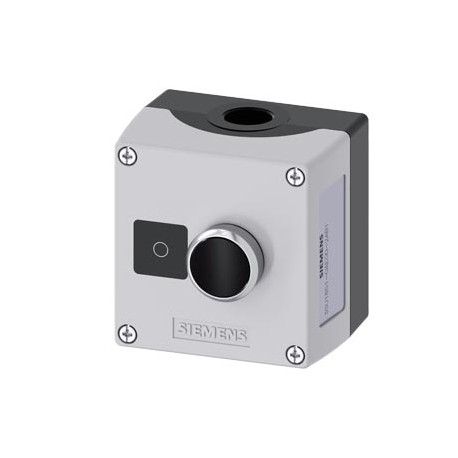

3SU1851-0AE00-2AB1 SIEMENS Enclosure for command devices, 22 mm, round, Enclosure material metal, enclosure ..
$0.00USD
3792 in stock
Key Specifications
:Confirmation
EAN:4011209969261
UPC:804766075339
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209969261 |
| UPC | 804766075339 |
| ETIM | 5 |
| depth | 75 mm |
| width | 85 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 89.4 mm |
| ● at AC | |
| Group Code | R711 |
| Date5/7/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LAO----- |
| ● as a kit | No |
| Product Group | 5454 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Pushbuttons and indicator lights in the enclosure for AS-Interface |
| delivery state | |
| last modified: | 1/26/2022 |
| Net Weight (kg) | 0,562 Kg |
| number of labels | 1 |
| product function | |
| shock resistance | |
| Country of origin | Germany |
| Marine / Shipping | other |
| operating voltage | |
| product component | |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| color of the label | A = black |
| product brand name | SIRIUS ACT |
| ● during storage | -40 ... +80 °C |
| Packaging Dimension | 95,00 x 100,00 x 134,00 |
| Product Description | Enclosure for command devices, 22 mm, round, Enclosure material metal, enclosure top part gray, 1 control point metal, A=Pushbutton black, 1 NC, screw terminal, floor mounting, label: O, 1xM20 each on top and bottom, Label enclosed |
| ambient temperature | |
| product designation | Enclosures |
| protection class IP | IP66, IP67, IP69(IP69K) |
| vibration resistance | |
| ● during operation | -25 ... +70 °C |
| ● positive opening | No |
| design of the housing | with recess for label |
| number of LED modules | 0 |
| ● at DC rated value | 5 ... 500 V |
| ● protective collar | No |
| material of the holder | Plastic |
| Product Lifecycle (PLM) | PM300:Active Product |
| color of the front ring | silver |
| product feature lockout | No |
| design of the front ring | Standard |
| number of command points | 1 |
| product type designation | 3SU1 |
| — at 50 Hz rated value | 5 ... 500 V |
| — at 60 Hz rated value | 5 ... 500 V |
| Declaration of Conformity | Test Certificates |
| material of the enclosure | metal |
| number of contact modules | 1 |
| ● EMERGENCY STOP device | No |
| ● of supplied accessory | A = 3SU1900-0AF16-0QA0 |
| Export Control Regulations | AL : N / ECCN : N |
| material of the front ring | Metal, high gloss |
| ● EMERGENCY OFF function | No |
| ● of the supplied holder | A = 3SU1550-0AA10-0AA0 |
| Material housing (EF001596) | Metal |
| Standard lead time ex-works | 55 Day/Days |
| Surcharge for Raw Materials | None |
| ● EMERGENCY STOP function | No |
| Package size unit of measure | MM |
| UK Declaration of Conformity | |
| number of inscription plates | 0 |
| product component front ring | Yes |
| shape of the enclosure front | Square |
| ● of the supplied actuator | 3SU1050-0AB10-0AA0 |
| Substance Prohibitance (Date) | 10/01/2014 |
| manufacturer's article number | |
| color of the actuating element | black |
| shape of the actuating element | round |
| ● according to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| ● of supplied contact module | A1 = 3SU1400-2AA10-1CA0 |
| Colour housing cover (EF001373) | Grey |
| color of the enclosure top part | grey |
| design of the actuating element | Pushbutton |
| ● according to IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms |
| ● of supplied empty enclosure | 3SU1851-0AA00-0AB1 |
| ● pre-wired on strip terminal | No |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| Number of key switches (EF005590) | 0 |
| Number of push buttons (EF005558) | 1 |
| fastening method of the enclosure | Vertical |
| material of the actuating element | plastic |
| shape of the installation opening | round |
| Degree of protection (IP) (EF005474) | - |
| Article Number (Market Facing Number) | 3SU1851-0AE00-2AB1 |
| Number of indicator lights (EF001965) | 0 |
| Degree of protection (NEMA) (EF011959) | NEMA 1, 2, 3, 3R, 4, 4X, 12, 13 |
| Number of command positions (EF001372) | 1 |
| Number of selector switches (EF005567) | 0 |
| Suitable for emergency stop (EF001433) | false |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| product extension optional light source | No |
| reference code according to IEC 81346-2 | S |
| suitability for use EMERGENCY OFF switch | No |
| design of the interface for communication | without |
| type of electrical connection on enclosure | Cable routing above and below, both 1 x M20 |
| design of the contact of auxiliary contacts | Silver alloy |
| fastening method of modules and accessories | Floor mounting |
| tightening torque with screw-type terminals | 0.8 ... 0.9 N·m |
| equipment of commanding and signaling device | A = Pushbutton |
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 0 |
| continuous current of the DIAZED fuse link gG | 10 A |
| marking of the name plate for command devices | A = I |
| continuous current of the C characteristic MCB | 10 A; for a short-circuit current smaller than 400 A |
| tightening torque of the screws in the bracket | 1 ... 1.2 N·m |
| Rated control supply voltage Us at DC (EF003980) | ['5', '500'] |
| continuous current of the quick DIAZED fuse link | 10 A |
| Number of mushroom-shaped push-buttons (EF006670) | 0 |
| ● of the supplied holder at the command point A | 3SU1550-0AA10-0AA0 |
| ● for railway applications according to EN 61373 | Category 1, Class B |
| ● of the supplied actuator at the command point A | 3SU1050-0AB10-0AA0 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['5', '500'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['5', '500'] |
| Number of contacts as normally open contact (EF008256) | 0 |
| ● of the supplied accessories at the command point A | 3SU1900-0AF16-0QA0 |
| ● of supplied contact module at the command point A 1 | 3SU1400-2AA10-1CA0 |
| Number of contacts as normally closed contact (EF008255) | 1 |
| type of electrical connection of modules and accessories | Screw-type terminal |
| tightening torque of fixing screws in the enclosure cover | 1.5 ... 1.7 N·m |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel) |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalConfirmationDeclaration of ConformityTest CertificatesMarine / ShippingUK Declaration of ConformityType Test Certificates/Test ReportSpecial Test CertificateMarine / ShippingotherConfirmation | General Product Approval |
