3SU1801-0NE00-4AB2

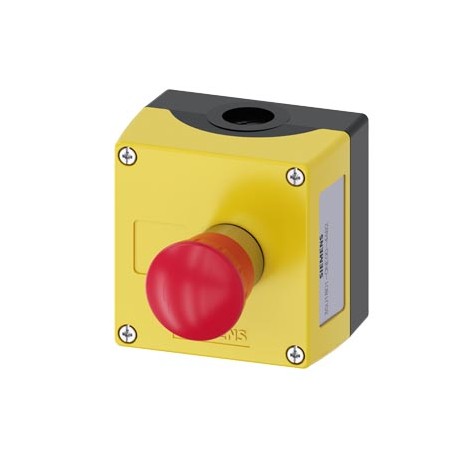

3SU1801-0NE00-4AB2 SIEMENS Enclosure for command devices, 22 mm, round, enclosure material plastic, enclosur..
$0.00USD
4103 in stock
Key Specifications
:
EAN:4011209969155
UPC:804766664618
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209969155 |
| UPC | 804766664618 |
| ETIM | 5 |
| depth | 109 mm |
| width | 85 mm |
| eClass | 6 |
| height | 105.4 mm |
| ● at AC | |
| Group Code | R711 |
| Date5/4/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LAO----- |
| ● as a kit | No |
| Product Group | 5454 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Pushbuttons and indicator lights in the enclosure for AS-Interface |
| delivery state | |
| last modified: | 1/26/2022 |
| Net Weight (kg) | 0,434 Kg |
| number of labels | 1 |
| product function | |
| shock resistance | |
| Country of origin | Germany |
| Marine / Shipping | other |
| operating voltage | |
| product component | |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| color of the label | A = black |
| product brand name | SIRIUS ACT |
| ● during storage | -40 ... +80 °C |
| Packaging Dimension | 98,00 x 93,00 x 129,00 |
| Product Description | Enclosure for command devices, 22 mm, round, enclosure material plastic, enclosure top part yellow, 1 control point, A=EMERGENCY STOP mushroom pushbutton red, metal, 40 mm, rotate-to-unlatch, 1 NO, 1 NC, 1 NC, spring-type terminal, floor mounting, support terminal, without label, 1xM20 each on top and bottom |
| ambient temperature | |
| product designation | Enclosures |
| protection class IP | IP66, IP67, IP69(IP69K) |
| vibration resistance | |
| ● during operation | -25 ... +70 °C |
| ● positive opening | Yes |
| design of the housing | with recess for label |
| number of LED modules | 0 |
| ● at DC rated value | 5 ... 500 V |
| ● protective collar | No |
| material of the holder | Plastic |
| Product Lifecycle (PLM) | PM300:Active Product |
| color of the front ring | black |
| product feature lockout | No |
| design of the front ring | Standard |
| number of command points | 1 |
| product type designation | 3SU1 |
| type of unlocking device | A = rotate-to-unlatch mechanism |
| — at 50 Hz rated value | 5 ... 500 V |
| — at 60 Hz rated value | 5 ... 500 V |
| Declaration of Conformity | Test Certificates |
| material of the enclosure | plastic |
| number of contact modules | 3 |
| ● EMERGENCY STOP device | Yes |
| Export Control Regulations | AL : N / ECCN : N |
| material of the front ring | plastic |
| ● EMERGENCY OFF function | Yes |
| ● of the supplied holder | A = 3SU1550-0AA10-0AA0 |
| Material housing (EF001596) | Plastic |
| Standard lead time ex-works | 55 Day/Days |
| Surcharge for Raw Materials | None |
| ● EMERGENCY STOP function | Yes |
| Package size unit of measure | MM |
| number of inscription plates | 0 |
| product component front ring | No |
| shape of the enclosure front | Square |
| ● of the supplied actuator | A = 3SU1050-1HB20-0AA0 |
| Substance Prohibitance (Date) | 10/01/2014 |
| manufacturer's article number | |
| color of the actuating element | red |
| shape of the actuating element | round |
| ● according to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| ● of supplied contact module | A1 = 3SU1400-2AA10-3CA0, A2 = 3SU1400-2AA10-3CA0, A3 = 3SU1400-2AA10-3BA0 |
| Colour housing cover (EF001373) | Yellow |
| color of the enclosure top part | yellow |
| design of the actuating element | EMERGENCY STOP mushroom pushbutton |
| ● according to IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms |
| ● of supplied empty enclosure | 3SU1801-0AA00-0AB2 |
| ● pre-wired on strip terminal | No |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12K, 13 |
| Number of key switches (EF005590) | 0 |
| Number of push buttons (EF005558) | 1 |
| fastening method of the enclosure | Vertical |
| material of the actuating element | plastic |
| shape of the installation opening | round |
| Degree of protection (IP) (EF005474) | - |
| Article Number (Market Facing Number) | 3SU1801-0NE00-4AB2 |
| Number of indicator lights (EF001965) | 0 |
| Degree of protection (NEMA) (EF011959) | NEMA 1, 2, 3, 3R, 4, 4X, 12K, 13 |
| Number of command positions (EF001372) | 1 |
| Number of selector switches (EF005567) | 0 |
| Suitable for emergency stop (EF001433) | true |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| product extension optional light source | No |
| reference code according to IEC 81346-2 | S |
| suitability for use EMERGENCY OFF switch | Yes |
| design of the interface for communication | without |
| type of electrical connection on enclosure | Cable routing above and below, both 1 x M20 |
| design of the contact of auxiliary contacts | Silver alloy |
| fastening method of modules and accessories | Floor mounting |
| equipment of commanding and signaling device | A = EMERGENCY STOP mushroom pushbutton, 40 mm, with positive latching acc. to ISO 13850 and rotate-to-unlatch mechanism |
| number of NC contacts for auxiliary contacts | 2 |
| number of NO contacts for auxiliary contacts | 1 |
| continuous current of the DIAZED fuse link gG | 10 A |
| marking of the name plate for command devices | A = I |
| continuous current of the C characteristic MCB | 10 A; for a short-circuit current smaller than 400 A |
| tightening torque of the screws in the bracket | 1 ... 1.2 N·m |
| Rated control supply voltage Us at DC (EF003980) | ['5', '500'] |
| continuous current of the quick DIAZED fuse link | 10 A |
| Number of mushroom-shaped push-buttons (EF006670) | 0 |
| ● of the supplied holder at the command point A | 3SU1550-0AA10-0AA0 |
| ● of the supplied actuator at the command point A | 3SU1050-1HB20-0AA0 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['5', '500'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['5', '500'] |
| Number of contacts as normally open contact (EF008256) | 1 |
| ● of supplied contact module at the command point A 1 | 3SU1400-2AA10-3CA0 |
| ● of supplied contact module at the command point A 2 | 3SU1400-2AA10-3CA0 |
| ● of supplied contact module at the command point A 3 | 3SU1400-2AA10-3BA0 |
| Number of contacts as normally closed contact (EF008255) | 2 |
| type of electrical connection of modules and accessories | Spring-type terminal |
| tightening torque of fixing screws in the enclosure cover | 1.5 ... 1.7 N·m |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel) |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
