3SU1801-0NB10-4HC2

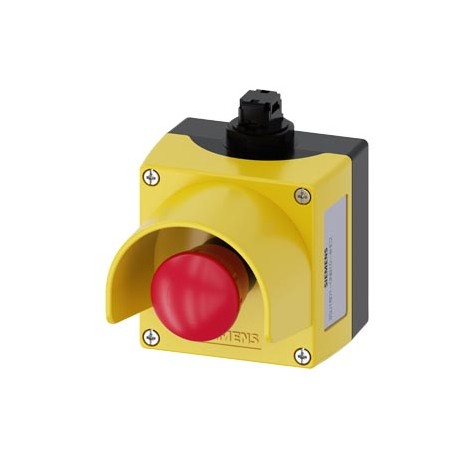

3SU1801-0NB10-4HC2 SIEMENS AS-Interface enclosure for command devices 22 mm, round, Enclosure material plast..
$0.00USD
3099 in stock
Key Specifications
:
EAN:4011209970359
UPC:195125028920
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209970359 |
| UPC | 195125028920 |
| ETIM | 5 |
| depth | 112.5 mm |
| width | 85 mm |
| eClass | 6 |
| height | 105.4 mm |
| ● at AC | |
| Group Code | R711 |
| Date5/2/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LAO----- |
| ● as a kit | No |
| Product Group | 5454 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Pushbuttons and indicator lights in the enclosure for AS-Interface |
| delivery state | |
| last modified: | 1/26/2022 |
| Net Weight (kg) | 0,445 Kg |
| cable entry type | Adapter ASI shaped cable (insulation displacement method) M20 cable entry |
| number of labels | 1 |
| product function | |
| shock resistance | |
| Country of origin | Germany |
| operating voltage | |
| product component | |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS ACT |
| ● during storage | -40 ... +80 °C |
| Packaging Dimension | 95,00 x 133,00 x 132,00 |
| Product Description | AS-Interface enclosure for command devices 22 mm, round, Enclosure material plastic, Enclosure top part yellow, with protective collar, 1 control point plastic, A=EMERGENCY STOP mushroom pushbutton red, 40 mm, rotate-to-unlatch, 1 NC, 1 NC, spring-type terminal, floor mounting, Insulation displacement system on top |
| ambient temperature | |
| product designation | Enclosures |
| protection class IP | IP66, IP67, IP69(IP69K) |
| vibration resistance | |
| ● during operation | -25 ... +70 °C |
| ● positive opening | Yes |
| design of the housing | with protective collar |
| number of LED modules | 0 |
| ● at DC rated value | 5 ... 500 V |
| ● protective collar | No |
| material of the holder | Plastic |
| Product Lifecycle (PLM) | PM300:Active Product |
| product feature lockout | No |
| General Product Approval | Declaration of Conformity |
| design of the front ring | Standard |
| number of command points | 1 |
| product type designation | 3SU1 |
| type of unlocking device | A = rotate-to-unlatch mechanism |
| — at 50 Hz rated value | 5 ... 500 V |
| — at 60 Hz rated value | 5 ... 500 V |
| Declaration of Conformity | Test Certificates |
| material of the enclosure | plastic |
| number of contact modules | 2 |
| ● EMERGENCY STOP device | Yes |
| Export Control Regulations | AL : N / ECCN : N |
| ● EMERGENCY OFF function | Yes |
| ● of the supplied holder | A = 3SU1500-0AA10-0AA0 |
| Material housing (EF001596) | Plastic |
| Standard lead time ex-works | 80 Day/Days |
| Surcharge for Raw Materials | None |
| ● EMERGENCY STOP function | Yes |
| Package size unit of measure | MM |
| UK Declaration of Conformity | Type Test Certificates/Test Report |
| number of inscription plates | 0 |
| product component front ring | No |
| shape of the enclosure front | Square |
| ● of the supplied actuator | A = 3SU1000-1HB20-0AA0 |
| Substance Prohibitance (Date) | 10/01/2014 |
| manufacturer's article number | |
| color of the actuating element | red |
| shape of the actuating element | round |
| ● according to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| ● of supplied contact module | A1 = 3SU1400-2AA10-3CA0, A2 = 3SU1400-2AA10-3CA0 |
| Colour housing cover (EF001373) | Yellow |
| color of the enclosure top part | yellow |
| design of the actuating element | EMERGENCY STOP mushroom pushbutton |
| ● according to IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms |
| ● of supplied empty enclosure | 3SU1801-0AA00-0AC2 |
| ● pre-wired on strip terminal | No |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12K, 13 |
| Number of key switches (EF005590) | 0 |
| Number of push buttons (EF005558) | 0 |
| fastening method of the enclosure | Vertical |
| material of the actuating element | plastic |
| shape of the installation opening | round |
| Degree of protection (IP) (EF005474) | - |
| ● of supplied communication module | AB = 3SU1400-2EA10-6AA0 |
| Article Number (Market Facing Number) | 3SU1801-0NB10-4HC2 |
| Number of indicator lights (EF001965) | 0 |
| Degree of protection (NEMA) (EF011959) | NEMA 1, 2, 3, 3R, 4, 4X, 12K, 13 |
| Number of command positions (EF001372) | 1 |
| Number of selector switches (EF005567) | 0 |
| Suitable for emergency stop (EF001433) | true |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| product extension optional light source | No |
| reference code according to IEC 81346-2 | S |
| suitability for use EMERGENCY OFF switch | Yes |
| design of the interface for communication | AS-i |
| type of electrical connection on enclosure | Adapter ASI shaped cable (insulation displacement method) |
| design of the contact of auxiliary contacts | Silver alloy |
| fastening method of modules and accessories | Floor mounting |
| equipment of commanding and signaling device | A = EMERGENCY STOP mushroom pushbutton, 40 mm, with positive latching acc. to ISO 13850 and rotate-to-unlatch mechanism |
| number of NC contacts for auxiliary contacts | 2 |
| number of NO contacts for auxiliary contacts | 0 |
| continuous current of the DIAZED fuse link gG | 10 A |
| marking of the name plate for command devices | A = I |
| continuous current of the C characteristic MCB | 10 A; for a short-circuit current smaller than 400 A |
| tightening torque of the screws in the bracket | 1 ... 1.2 N·m |
| Rated control supply voltage Us at DC (EF003980) | ['5', '500'] |
| continuous current of the quick DIAZED fuse link | 10 A |
| Number of mushroom-shaped push-buttons (EF006670) | 1 |
| ● of the supplied holder at the command point A | 3SU1500-0AA10-0AA0 |
| ● for railway applications according to EN 61373 | Category 1, Class B |
| ● of the supplied actuator at the command point A | 3SU1000-1HB20-0AA0 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['5', '500'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['5', '500'] |
| Number of contacts as normally open contact (EF008256) | 0 |
| ● of supplied contact module at the command point A 1 | 3SU1400-2AA10-3CA0 |
| ● of supplied contact module at the command point A 2 | 3SU1400-2AA10-3CA0 |
| Number of contacts as normally closed contact (EF008255) | 2 |
| type of electrical connection of modules and accessories | Spring-type terminal |
| tightening torque of fixing screws in the enclosure cover | 1.5 ... 1.7 N·m |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel) |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| General Product ApprovalDeclaration of ConformityConfirmationDeclaration of ConformityTest CertificatesotherUK Declaration of ConformityType Test Certificates/Test ReportSpecial Test CertificateConfirmation | General Product Approval |
