3SU1401-2BB30-3AA2

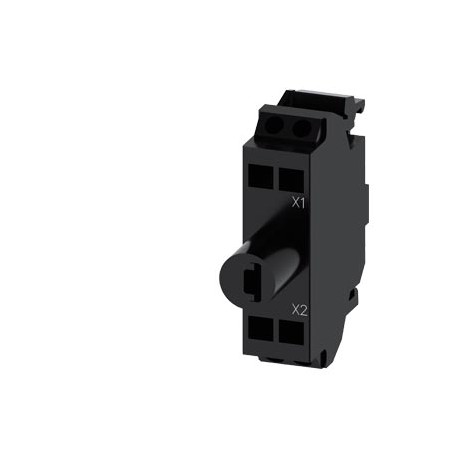

3SU1401-2BB30-3AA2 SIEMENS LED module with integrated LED 24 V AC/DC, yellow, Spring-loaded terminal, for fl..
$0.00USD
4997 in stock
Key Specifications
:Confirmation
EAN:4047621057637
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4047621057637 |
| UPC | Not available |
| ETIM | 5 |
| IDEA | 4 |
| depth | 29.4 mm |
| width | 9.8 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 36 mm |
| ● ATEX | Yes; BVS 18 ATEX E 030 (IEC 60079-0:2017-12 Edition 7.0; EN 60079-11:2012; ATEX-product guideline 2014/34/EU) |
| ● IECEx | Yes; IECEx BVS 18.0023 (IEC 60079-11:2011-06 Edition 6.0; IEC 60079-0:2017-12 Edition 7.0) |
| ● at AC | |
| ● at DC | 28.8 V |
| ● diode | Yes |
| Group Code | R711 |
| Metal Factor | L-O----- |
| Date5/11/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5452 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85318070 |
| Product family | Modules |
| last modified: | 3/9/2022 |
| Net Weight (kg) | 0,008 Kg |
| light intensity | 450 ... 1 120 mcd |
| fastening method | |
| shock resistance | |
| ● light source | Yes |
| Country of origin | Czech Republic |
| Marine / Shipping | other |
| product component | |
| ● at AWG cables | 2x (24 ... 16) |
| ● for actuation | AC/DC |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS ACT |
| ● during storage | -40 ... +80 °C |
| Packaging Dimension | 35,00 x 35,00 x 10,00 |
| Product Description | LED module with integrated LED 24 V AC/DC, yellow, Spring-loaded terminal, for floor mounting, ATEX Zone 1-2: Intrinsic safety |
| ambient temperature | |
| degree of pollution | 3 |
| operating voltage 1 | |
| product designation | LED module |
| protection class IP | |
| ● metal enclosure | Yes |
| ● of the terminal | IP20 |
| ● series resistor | No |
| type of light source | LED |
| vibration resistance | |
| ● during operation | -25 ... +70 °C |
| ● lamp transformer | No |
| ● of the enclosure | IP30 |
| ● at DC rated value | 24 V |
| ● plastic enclosure | Yes |
| inrush current maximum | 2 A |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | EMC |
| consumed current maximum | 20 mA |
| operating period typical | 100 000 h |
| product type designation | 3SU1 |
| — at 50 Hz rated value | 24 V |
| — at 60 Hz rated value | 24 V |
| color of the light source | yellow |
| Export Control Regulations | AL : N / ECCN : N |
| certificate of suitability | |
| maximum input voltage (Ui) | |
| Standard lead time ex-works | 30 Day/Days |
| Surcharge for Raw Materials | None |
| suitability for integration | |
| Ex-Marking according to ATEX | II 2G Ex ib IIC T4 Gb |
| Package size unit of measure | MM |
| Substance Prohibitance (Date) | 10/01/2014 |
| type of electrical connection | spring-loaded terminals |
| For use in hazardous locations | Declaration of Conformity |
| insulation voltage rated value | 320 V |
| ● according to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| ● of modules and accessories | Floor mounting |
| ● according to IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms |
| surge voltage resistance rated value | 4 kV |
| type of protection according to ATEX | Ex ib |
| Article Number (Market Facing Number) | 3SU1401-2BB30-3AA2 |
| ● solid without core end processing | 2x (0.25 ... 1.5 mm²) |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| reference code according to IEC 81346-2 | P |
| type of voltage of the operating voltage | AC/DC |
| type of connectable conductor cross-sections | |
| ● finely stranded with core end processing | 2x (0.25 ... 0.75 mm²) |
| ● for gas explosion protection for zone 1/2 | Yes |
| ● finely stranded without core end processing | 2x (0.25 ... 1.5 mm²) |
| equipment protection level (EPL) according to ATEX | Gb |
| ● for railway applications according to EN 61373 | Category 1, Class B |
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J |
| explosion device group and category according to ATEX | II C |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted) |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| General Product ApprovalEMCFor use in hazardous locationsConfirmationFor use in hazardous locationsDeclaration of ConformityTest CertificatesMarine / ShippingUK Declaration of ConformitySpecial Test CertificateType Test Certificates/Test ReportMarine / ShippingotherConfirmation | General Product Approval |
Product Description
LED module WITH LED INTGR. 24 V AC/DC, yellow, spring terminals, for base fixing, ATEX zone 1-2: intrinsic safety
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
