3SU1400-1LL10-1BA1

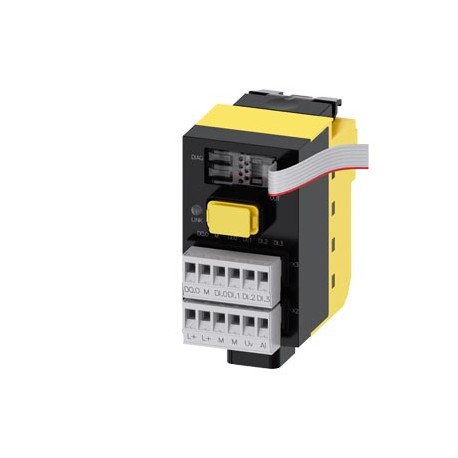

3SU1400-1LL10-1BA1 SIEMENS SIRIUS ACT with PROFINET: Fail-safe interface module with 4 DI, 1 DQ (24 V DC), 1..
$0.00USD
4771 in stock
Key Specifications
:VersionClassificationeClass627-37-92-13eClass7.127-37-92-13eClass827-37-92-13eClass927-37-92-13eClass9.127-37-92-13ETIM5EC002024ETIM6EC002024ETIM7EC002024ETIM8EC002024IDEA45226UNSPSC1539-12-22-21
EAN:4011209964983
UPC:804766463082
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-92-13eClass7.127-37-92-13eClass827-37-92-13eClass927-37-92-13eClass9.127-37-92-13ETIM5EC002024ETIM6EC002024ETIM7EC002024ETIM8EC002024IDEA45226UNSPSC1539-12-22-21 | |
| EAN | 4011209964983 |
| UPC | 804766463082 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 72.1 mm |
| width | 40 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 80.1 mm |
| ● IRT | No |
| ● MRP | No |
| ● LLDP | Yes |
| ● MRPD | No |
| ● SNMP | Yes |
| I2t value | 0.008 A²·s |
| ● solid | 0.2 ... 2.5 mm² |
| Group Code | R711 |
| ● TCP/IP | Yes |
| ● alarms | Yes |
| ● maximum | 100 mA |
| Confirmation | |
| Date5/6/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | None |
| ● I&M data | Yes; I&M0 ... I&M3 |
| Product Group | 5453 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85371098 |
| Product family | Modules |
| last modified: | 1/27/2022 |
| Net Weight (kg) | 0,120 Kg |
| display version | |
| type of voltage | |
| ● rated value | 28 mA |
| consumed current | |
| firmware version | 2.1.1 |
| hardware version | 1 |
| product function | |
| Country of origin | Czech Republic |
| Test Certificates | other |
| ● Autocrossover | Yes |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| interface design 1 | |
| product brand name | SIRIUS ACT |
| ● during storage | -40 ... +80 °C |
| ● safety-related | 0 |
| Packaging Dimension | 100,00 x 115,00 x 55,00 |
| Product Description | SIRIUS ACT with PROFINET: fail-safe interface module with 4 DI, 1 DQ (24 V DC), 1 AI (12-bit A/D resolution), 24 V DC, screw terminal, front plate mounting, 1 to 20 terminal modules connectable |
| ambient temperature | |
| degree of pollution | 3 |
| product designation | Fail-safe interface module for PROFINET |
| protection class IP | IP20, clamping screw tightened |
| ● Autonegotiation | Yes |
| ● RJ45 (Ethernet) | Yes |
| service life maximum | 20 y |
| ● during operation | -25 ... +60 °C |
| ● isochronous mode | No |
| protocol is supported | |
| ● integrated switch | No |
| ● solid or stranded | 0.2 ... 2.5 mm² |
| ● status Tx/Rx link | Yes |
| inrush current maximum | 16 A |
| power loss [W] typical | 0.67 W |
| ● Ethernet interface | Yes; for Ethernet services |
| ● PROFIsafe protocol | Yes |
| Product Lifecycle (PLM) | PM300:Active Product |
| design of the interface | |
| number of analog inputs | 1 |
| ● prioritized startup | No |
| General Product Approval | Functional Safety/Safety of Machinery |
| Special Test Certificate | Type Test Certificates/Test Report |
| number of digital inputs | 4 |
| product type designation | 3SU1 |
| ● PROFINET IO protocol | Yes |
| ● diagnostics function | Yes |
| ● of the input voltage | DC |
| ● supports PROFIenergy | No |
| number of digital outputs | 1 |
| Export Control Regulations | AL : N / ECCN : N |
| ● supports Shared Device | No |
| Safe failure fraction (SFF) | 99.6 % |
| Standard lead time ex-works | 50 Day/Days |
| Surcharge for Raw Materials | None |
| ● Fast Ethernet interface | Yes; PROFINET with 100 Mbps |
| Package size unit of measure | MM |
| ● of the operating voltage | DC |
| Substance Prohibitance (Date) | 12/19/2016 |
| operating voltage rated value | 20.4 V |
| service as PROFINET IO device | |
| type of electrical connection | screw-type terminals |
| insulation voltage rated value | 30 V |
| T1 value according to IEC 61508 | 1 y |
| ● reverse polarity protection | Yes; With polarity change, DI1 ... DI4 may not be connected to (M) pole |
| number of units per rack maximum | 20 |
| supply voltage at DC rated value | 24 V |
| service for open IE communication | |
| ● solid with core end processing | 0.2 ... 2.5 mm² |
| configuration function with dataset | Yes |
| connectable conductor cross-section | |
| category according to EN ISO 13849-1 | 4 |
| number of ports at the 1st interface | 1 |
| surge voltage resistance rated value | 0.8 kV |
| Article Number (Market Facing Number) | 3SU1400-1LL10-1BA1 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| reference code according to IEC 81346-2 | K |
| network load class according to PROFINET | 1 |
| number of submodules per station maximum | 24 |
| transmission mode for Industrial Ethernet | PROFINET with 100 Mbps full duplex (100BASE-TX) |
| number of interfaces according to PROFINET | 1 |
| product function at the Ethernet interface | |
| GSD version/revision with PROFINET required | V2.3 |
| fastening method of modules and accessories | Front plate mounting |
| tightening torque with screw-type terminals | 0.5 ... 0.6 N·m |
| ● finely stranded with core end processing | 2.5 mm² |
| ● finely stranded without core end processing | 0.2 ... 2.5 mm² |
| PFHD with high demand rate according to EN 62061 | 0.0000000006 1/h |
| SIL Claim Limit (subsystem) according to EN 62061 | SILCL 3 |
| PFDavg with low demand rate according to IEC 61508 | 0.0000024 |
| Type of electrical accessory/spare part (EF005722) | - |
| Type of mechanical accessory/spare part (EF005994) | - |
| performance level (PL) according to EN ISO 13849-1 | e |
| Safety Integrity Level (SIL) according to IEC 61508 | 3 |
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J |
| AWG number as coded connectable conductor cross section | 30 ... 12 |
| protocol at the 1st interface media redundancy protocol | No |
| software version with STEP 7 in the TIA Portal required | Integrated in TIA Portal Version 14 SP1 or higher (HSP for V13 and V14) |
| product function at the 1st interface PROFINET IO device | Yes |
| connectable conductor cross-section for auxiliary contacts | |
| galvanic isolation between PROFINET and all other circuits | Yes |
| specification for Security Level 1 test according to PROFINET | Resilient to network loading |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted) |
| ● for diagnostic function: Supply voltage monitoring power LED | Yes |
| Compliance with the substance restrictions according to RoHS directive | Since: 19.12.2016 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead titanium zircon... CAS-No. 12626-81-2 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead titanium zirconium oxideBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.2-methyl-1-(4-methyl... CAS-No. 71868-10-5 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-oneBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| explosion protection marking for intrinsic safety of related equipment EEx ia | No |
| explosion protection marking for intrinsic safety of related equipment EEx ib | No |
| product function of the PROFINET IO device is supported PROFINET system redundancy | No |
| General Product ApprovalFunctional Safety/Safety of MachineryDeclaration of ConformityConfirmationType Examination CertificateUK Declaration of ConformityTest CertificatesotherSpecial Test CertificateType Test Certificates/Test ReportConfirmationPROFINET-Certification | General Product Approval |
