3SU1400-1EC10-4AA0

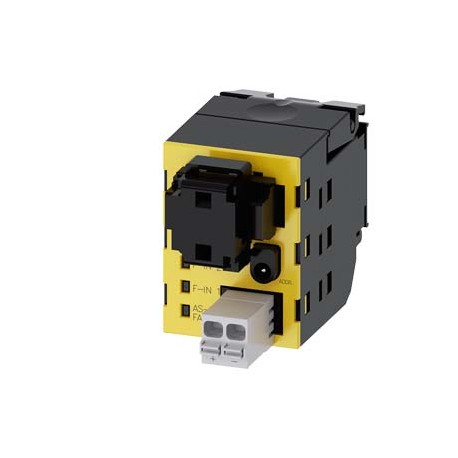

3SU1400-1EC10-4AA0 SIEMENS AS-Interface module, 2 safe inputs, 1 output, black, insulation displacement syst..
$0.00USD
4588 in stock
Key Specifications
:VersionClassificationeClass627-37-92-13eClass7.127-37-92-13eClass827-37-92-13eClass927-37-92-13eClass9.127-37-92-13ETIM5EC002024ETIM6EC002024ETIM7EC002024ETIM8EC002024IDEA45226UNSPSC1539-12-22-21
EAN:4011209937178
UPC:804766073335
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-92-13eClass7.127-37-92-13eClass827-37-92-13eClass927-37-92-13eClass9.127-37-92-13ETIM5EC002024ETIM6EC002024ETIM7EC002024ETIM8EC002024IDEA45226UNSPSC1539-12-22-21 | |
| EAN | 4011209937178 |
| UPC | 804766073335 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 65.5 mm |
| width | 30 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 42 mm |
| ID1 code | 0...F |
| Group Code | R711 |
| Confirmation | |
| Date5/3/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | None |
| Product Group | 5453 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85371098 |
| Product family | Modules |
| last modified: | 1/27/2022 |
| Net Weight (kg) | 0,063 Kg |
| type of voltage | |
| fastening method | |
| product function | 2F-DI / 1 DQ |
| Country of origin | Germany |
| ● at AWG cables | 1x (24 ... 16) |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS ACT |
| ● during storage | -40 ... +80 °C |
| ● of AS-i slaves | Frontplattenbefestigung |
| ● safety-related | 2 |
| Packaging Dimension | 50,00 x 63,00 x 85,00 |
| Product Description | AS-Interface module, 2 safe inputs, 1 output, black, insulation displacement system and 2-pole connector with spring-type terminal, for front plate mounting |
| ambient temperature | |
| degree of pollution | 3 |
| product designation | AS-Interface module |
| protection class IP | IP20 |
| ● during operation | -25 ... +70 °C |
| number of AS-i slaves | 1 |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | EMC |
| consumed current maximum | 60 mA |
| design of the slave type | 2 F-DI + 1 DQ |
| number of digital inputs | |
| product type designation | 3SU1 |
| ● of the input voltage | DC |
| Declaration of Conformity | Test Certificates |
| number of digital outputs | 1; Unrestricted |
| AS-Interface slave profile | S-7.B.F |
| Export Control Regulations | AL : N / ECCN : N |
| Safe failure fraction (SFF) | 99 % |
| Standard lead time ex-works | 80 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| UK Declaration of Conformity | Special Test Certificate |
| ● of the operating voltage | DC |
| Substance Prohibitance (Date) | 10/01/2014 |
| operating voltage rated value | 26.5 ... 31.6 V |
| type of electrical connection | spring-loaded terminal + insulation displacement method |
| category according to EN 954-1 | 4 |
| ● of modules and accessories | Front plate mounting |
| Article Number (Market Facing Number) | 3SU1400-1EC10-4AA0 |
| operating voltage 1 at DC rated value | 30 V |
| ● solid without core end processing | 1x (0.2 ... 2.5 mm²) |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| reference code according to IEC 81346-2 | K |
| average diagnostic coverage level (DCavg) | 99 % |
| protocol is supported AS-Interface protocol | Yes |
| suitability for use safety-related circuits | Yes |
| type of connectable conductor cross-sections | |
| ● finely stranded with core end processing | 1x (0.25 ... 1.5 mm²) |
| ● finely stranded without core end processing | 1x (0.22 ... 1.5 mm²) |
| PFHD with high demand rate according to EN 62061 | 0.0000000045 1/h |
| SIL Claim Limit (subsystem) according to EN 62061 | SILCL 3 |
| PFDavg with low demand rate according to IEC 61508 | 0.000005 |
| Type of electrical accessory/spare part (EF005722) | other / AS-Interface module |
| Type of mechanical accessory/spare part (EF005994) | - |
| performance level (PL) according to EN ISO 13849-1 | e |
| Safety Integrity Level (SIL) according to IEC 61508 | 3 |
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J |
| protocol is supported ASIsafe (Safety at work) protocol | Yes |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10 ... 95%, no condensation in operation permitted) |
| shock resistance for railway applications according to EN 61373 | Category 1, Class B |
| vibration resistance for railway applications according to EN 61373 | Category 1, Class B |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| General Product ApprovalEMCFunctional Safety/Safety of MachineryDeclaration of ConformityConfirmationType Examination CertificateDeclaration of ConformityTest CertificatesotherUK Declaration of ConformitySpecial Test CertificateType Test Certificates/Test ReportConfirmation | General Product Approval |
Product Description
AS-INTERFACE MODULE, 2 SECURE INPUTS, 1 OUTPUT, BLACK, CONEX. PERF. INSULATION AND 2-POLE CONNECTOR WITH SPRING TERMINALS, FOR FJACION IN FRONT PLATE
