3SU1250-6KC10-1AA0

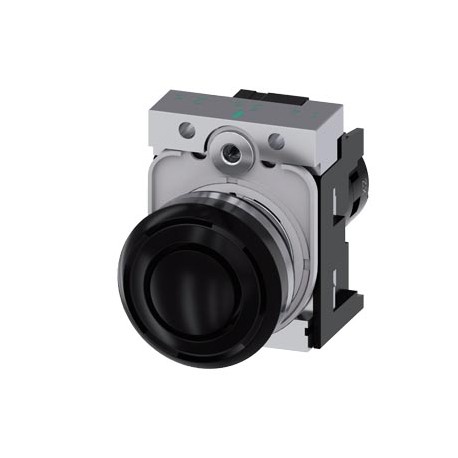

3SU1250-6KC10-1AA0 SIEMENS acoustic signal device, compact, 22 mm, round, Metal, black, Continuous tone 2.4 ..
$0.00USD
4434 in stock
Key Specifications
:Value
EAN:4047621044903
UPC:804766370472
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4047621044903 |
| UPC | 804766370472 |
| ETIM | 5 |
| Color | |
| Width | 30 mm |
| Height | 40 mm |
| eClass | 6 |
| Group Code | R711 |
| Price Group | 41J |
| Metal Factor | None |
| Product line | Metal, shiny, 22 mm |
| Mounting type | front panel mounting |
| Product Group | 5452 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85318070 |
| Product family | Actuators and indicators, 22 mm, metal, shiny |
| last modified: | 08/20/2020 |
| Mounting height | 11.4 mm |
| Net Weight (kg) | 0,001 Kg |
| ● rated value | 320 V |
| Consumed current | |
| Shock resistance | |
| Country of origin | Czech Republic |
| Mounting diameter | 22.3 mm |
| Test Certificates | other |
| Tightening torque | |
| Installation depth | 49.6 mm |
| Installation width | 29.5 mm |
| Insulation voltage | |
| LKZ_FDB/ CatalogID | CC-IC10 |
| PLM Effective Date | Product phase-out since: 01.10.2020 |
| Packaging Quantity | 1 |
| Product brand name | SIRIUS ACT |
| ● during storage | -40 ... +80 °C |
| Ambient temperature | |
| Degree of pollution | 3 |
| Loudness (EF000144) | 90 |
| Packaging Dimension | 90,00 x 150,00 x 40,00 |
| Product Description | acoustic signal device, compact, 22 mm, round, Metal, black, Continuous tone 2.4 kHz, IP40, Sound pressure min. 80 dB/10 cm, with holder, Operating voltage 110 V AC, screw terminal |
| Product designation | Acoustic signaling device |
| Protection class IP | IP40 |
| ● of the terminal | IP20 |
| Supply voltage at AC | |
| Vibration resistance | |
| ● during operation | -25 ... +70 °C |
| Design of the product | Compact unit |
| ● at AWG conductors | 2x (18 ... 14) |
| Inrush current maximum | 3 A |
| Material of the holder | Metal |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | - |
| General Product Approval | Declaration of Conformity |
| Number of command points | 1 |
| Product type designation | 3SU1 |
| ● at 50 Hz rated value | 110 V |
| ● at 60 Hz rated value | 110 V |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| Export Control Regulations | AL : N / ECCN : N |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50 g / 11 ms |
| ● of the supplied holder | 3SU1550-0AA10-0AA0 |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Product component front ring | No |
| ● of the actuating element | black |
| Manufacturer's article number | |
| Type of electrical connection | screw-type terminals |
| ● with screw-type terminals | 0.8 ... 1 N·m |
| Product Dimensions (W x L x H) | Not available |
| Shape of the actuating element | round |
| Degree of protection NEMA rating | 1 |
| Loudness level at 10 cm distance | 80 dB |
| Material of the actuating element | plastic |
| Shape of the installation opening | round |
| Operating voltage at DC (EF008208) | - |
| Type Test Certificates/Test Report | Special Test Certificate |
| Type of acoustic signal (EF002751) | Continuous tone |
| ● of the acoustic signal element | AC |
| ● solid with core end processing | 2x (0.5 ... 0.75 mm²) |
| Surge voltage resistance rated value | 4 kV |
| Article Number (Market Facing Number) | 3SU1250-6KC10-1AA0 |
| Reference code acc. to DIN EN 61346-2 | P |
| Reference code acc. to DIN EN 81346-2 | P |
| Type of voltage of the supply voltage | |
| ● solid without core end processing | 2x (1.0 ... 1.5 mm²) |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Outer diameter of the actuating element | 29.5 mm |
| Operating voltage at AC 50 Hz (EF008206) | - |
| Operating voltage at AC 60 Hz (EF008207) | - |
| Positive tolerance of installation diameter | 0.4 mm |
| Type of connectable conductor cross-sections | |
| ● finely stranded with core end processing | 2x (0.5 ... 1.5 mm²) |
| Tightening torque of the screws in the bracket | 1 ... 1.2 N·m |
| ● at rated value of operating voltage maximum | 32 mA |
| ● finely stranded without core end processing | 2x (1,0 ... 1,5 mm²) |
| Relative negative tolerance of the operating voltage | 20 % |
| Relative positive tolerance of the operating voltage | 20 % |
| Environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95 %, no condensation in operation permitted for all devices behind front panel) |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityMiscellaneousTest CertificatesotherType Test Certificates/Test ReportSpecial Test CertificateConfirmation | General Product Approval |
