3SU1130-7BD10-1NA0

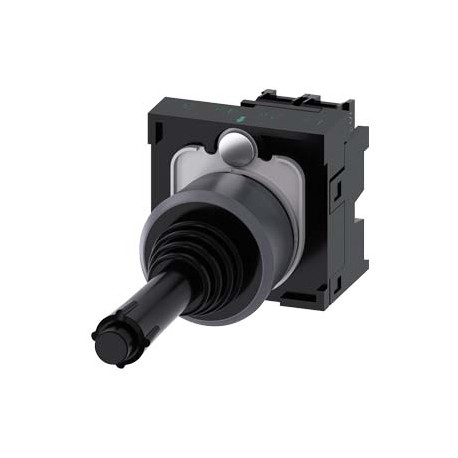

3SU1130-7BD10-1NA0 SIEMENS Coordinate switch, 22 mm, round, plastic with metal front ring, black, 2 switch p..
$0.00USD
4806 in stock
Key Specifications
:Value
EAN:4011209955028
UPC:804766475061
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209955028 |
| UPC | 804766475061 |
| ETIM | 4 |
| IDEA | 4 |
| Color | |
| Width | 40 mm |
| Height | 40 mm |
| UNSPSC | 15 |
| eClass | 6 |
| B10 value | |
| ● at AC | |
| ● at DC | |
| Group Code | R711 |
| Price Group | 41J |
| ● typical | 10 000 000 |
| Metal Factor | LAO----- |
| Product line | Plastic with metal front ring, matt, 22 mm |
| Mounting type | front panel mounting |
| Product Group | 5452 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Actuators and indicators, 22 mm, plastic with metal front ring, matte |
| last modified: | 08/20/2020 |
| Mounting height | 75.6 mm |
| Net Weight (kg) | 0,108 Kg |
| Thermal current | 10 A |
| Type of voltage | |
| — rated value | 5 ... 500 V |
| ● rated value | 500 V |
| Coder (EF005666) | false |
| Product function | |
| Shock resistance | |
| Country of origin | Switzerland |
| Marine / Shipping | other |
| Mounting diameter | 22.3 mm |
| Operating voltage | |
| Test Certificates | Marine / Shipping |
| Tightening torque | |
| Failure rate [FIT] | |
| Installation depth | 53.7 mm |
| Installation width | 30.5 mm |
| Insulation voltage | |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| Product brand name | SIRIUS ACT |
| ● during storage | -40 ... +80 °C |
| Ambient temperature | |
| Contact reliability | One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA) |
| Degree of pollution | 3 |
| Packaging Dimension | 144,00 x 192,00 x 35,00 |
| Product Description | Coordinate switch, 22 mm, round, plastic with metal front ring, black, 2 switch positions, vertical, momentary contact type, with mechanical interlocking in O position, with holder, 1 NO, 1 NO, screw terminal |
| Product designation | Coordinate switches |
| Protection class IP | IP65, IP67 |
| ● of the terminal | IP20 |
| Vibration resistance | |
| ● during operation | -25 ... +70 °C |
| ● positive opening | No |
| Design of the product | Complete unit |
| ● at AWG conductors | 2x (18 ... 14) |
| Direction of actuation | Vertical |
| Material of the holder | Plastic |
| Color of the front ring | sand gray |
| Product Lifecycle (PLM) | PM300:Active Product |
| Design of the front ring | high |
| General Product Approval | Declaration of Conformity |
| Product type designation | 3SU1 |
| Type of unlocking device | push-to-unlatch mechanism |
| — at 50 Hz rated value | 5 ... 500 V |
| — at 60 Hz rated value | 5 ... 500 V |
| Number of contact modules | 2 |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| Export Control Regulations | AL : N / ECCN : N |
| Material of the front ring | Metal, matt |
| With front ring (EF006014) | true |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50 g / 11 ms |
| ● of the supplied holder | 3SU1500-0BA10-0AA0 |
| Joy stick length (EF006524) | 75.6 |
| Operating frequency maximum | 3 600 1/h |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Colour front ring (EF002429) | Other |
| Package size unit of measure | MM |
| Product component front ring | Yes |
| Shape of the enclosure front | round |
| ● of the actuating element | black |
| ● of the operating voltage | AC/DC |
| ● of the supplied actuator | 3SU1030-7BD10-0AA0 |
| Manufacturer's article number | |
| Maximum deflection angle [°] | 30° |
| Number of switching positions | 2 |
| Type of electrical connection | |
| Material front ring (EF005972) | Other |
| Product Dimensions (W x L x H) | Not available |
| Shape of the actuating element | Extended handle |
| ● of modules and accessories | Screw-type terminal |
| Locking in 0-position (EF006283) | false |
| Proportion of dangerous failures | |
| ● 2 of supplied contact module | 3SU1400-1AA10-1BA0 |
| ● 4 of supplied contact module | 3SU1400-1AA10-1BA0 |
| Design of the operating mechanism | with mechanical interlocking |
| Material of the actuating element | plastic |
| Shape of the installation opening | round |
| Number of switch levels (EF000246) | 2 |
| Type Test Certificates/Test Report | Special Test Certificate |
| ● solid with core end processing | 2x (0.5 ... 0.75 mm²) |
| Degree of protection (IP) (EF005474) | IP65/IP67 |
| Surge voltage resistance rated value | 6 kV |
| Article Number (Market Facing Number) | 3SU1130-7BD10-1NA0 |
| Reference code acc. to DIN EN 61346-2 | S |
| Reference code acc. to DIN EN 81346-2 | S |
| ● solid without core end processing | 2x (1.0 ... 1.5 mm²) |
| Degree of protection (NEMA) (EF011959) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Electrical endurance (switching cycles) | |
| Outer diameter of the actuating element | 30.5 mm |
| Product extension optional Light source | No |
| With retraction in 0-position (EF002428) | true |
| Centre mounting, hole diameter (EF002424) | 22.3 |
| Number of actuation directions (EF002425) | 2 |
| ● with low demand rate acc. to SN 31920 | 20 % |
| Mechanical service life (switching cycles) | |
| ● with high demand rate acc. to SN 31920 | 250 000 |
| Design of the contact of auxiliary contacts | Silver alloy |
| Manner of function of the actuating element | momentary contact type |
| Positive tolerance of installation diameter | 0.4 mm |
| Number of NC contacts for auxiliary contacts | 0 |
| Number of NO contacts for auxiliary contacts | 2 |
| Type of connectable conductor cross-sections | |
| ● finely stranded with core end processing | 2x (0.5 ... 1.5 mm²) |
| Continuous current of the DIAZED fuse link gG | 10 A |
| Analogue output signal configurable (EF003236) | false |
| Continuous current of the C characteristic MCB | 10 A; for a short-circuit current smaller than 400 A |
| Tightening torque of the screws in the bracket | 1 ... 1.2 N·m |
| ● finely stranded without core end processing | 2x (1,0 ... 1,5 mm²) |
| Continuous current of the quick DIAZED fuse link | 10 A |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| ● for auxiliary contacts with screw-type terminals | 0.8 ... 1 N·m |
| Rated operation current Ie at AC-21, 400 V (EF002417) | - |
| Environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %, no condensation in operation permitted for all devices behind front panel) |
| Number of make-and-break contacts per direction (EF005599) | 0 |
| ● as operating period per direction of actuation typical | 500 000 |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| Number of normally open contacts per actuation direction (EF002427) | 2 |
| Number of normally closed contacts per actuation direction (EF008263) | 0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Electrical endurance (switching cycles) with contactors 3RT1015 to 3RT1026 typical | 10 000 000 |
| General Product ApprovalDeclaration of ConformityMiscellaneousTest CertificatesMarine / ShippingType Test Certificates/Test ReportSpecial Test CertificateMarine / ShippingotherConfirmation | General Product Approval |
