3SU1130-2BL60-3NA0

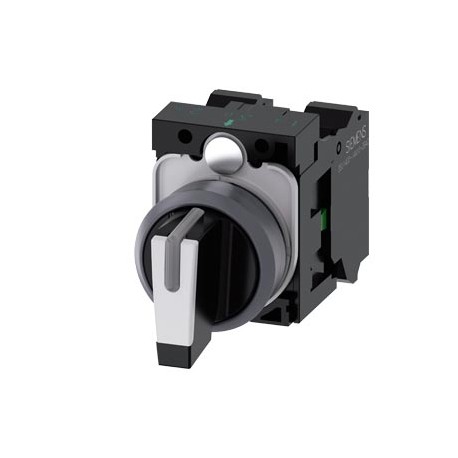

3SU1130-2BL60-3NA0 SIEMENS Selector switch, illuminable, 22 mm, round, plastic with metal front ring, white,..
$0.00USD
3625 in stock
Key Specifications
:Value
EAN:4011209971615
UPC:804766071591
●:
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209971615 |
| UPC | 804766071591 |
| ● | |
| ETIM | 4 |
| IDEA | 4 |
| width | 32.3 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 40 mm |
| B10 value | |
| Group Code | R711 |
| Price Group | 41J |
| Metal Factor | LAO----- |
| product line | Plastic with metal front ring, matt, 22 mm |
| Product Group | 5452 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| ● clockwise | 45° |
| Commodity Code | 85365080 |
| Product family | Actuators and indicators, 22 mm, plastic with metal front ring, matte |
| last modified: | 08/29/2020 |
| Actuating angle | |
| Net Weight (kg) | 0,076 Kg |
| mounting height | 28.8 mm |
| thermal current | 10 A |
| type of voltage | |
| — rated value | 5 ... 500 V |
| ● rated value | 500 V |
| Country of origin | Czech Republic |
| Marine / Shipping | other |
| Test Certificates | Marine / Shipping |
| mounting diameter | 22.3 mm |
| ● anticlockwise | 45° |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| installation depth | 49.7 mm |
| installation width | 32.3 mm |
| insulation voltage | |
| product brand name | SIRIUS ACT |
| Contact reliability | One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA) |
| Packaging Dimension | 70,00 x 120,00 x 30,00 |
| Product Description | Selector switch, illuminable, 22 mm, round, plastic with metal front ring, white, selector switch, short, 3 switch positions I-O-II, latching, actuating angle 2x45°, 10:30h/12h/13:30h, with holder, 1 NO, 1 NO, Spring-type terminal |
| degree of pollution | 3 |
| product designation | Selector switches |
| protection class IP | IP66, IP67, IP69(IP69K) |
| ● of the terminal | IP20 |
| Number of LED modules | 0 |
| design of the product | Complete unit |
| Material of the holder | Plastic |
| Product Lifecycle (PLM) | PM300:Active Product |
| color of the front ring | sand gray |
| Colour button (EF000190) | White |
| Design of the front ring | standard |
| General Product Approval | Declaration of Conformity |
| Hole diameter (EF000079) | 22.3 |
| Number of command points | 1 |
| Special Test Certificate | Type Test Certificates/Test Report |
| Spring-return (EF001407) | FALSE |
| Width opening (EF004565) | 32.3 |
| product type designation | 3SU1 |
| Height opening (EF004778) | 28.8 |
| Number of contact modules | 2 |
| Supply voltage (EF004127) | - |
| Export Control Regulations | AL : N / ECCN : N |
| With front ring (EF006014) | true |
| material of the front ring | Metal, matt |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| operating frequency maximum | 1 800 1/h |
| ● operating voltage at DC | |
| Colour front ring (EF002429) | Other |
| Package size unit of measure | MM |
| Product component front ring | Yes |
| With light source (EF005905) | false |
| ● of the operating voltage | AC/DC |
| Number of switching positions | 3 |
| Material front ring (EF005972) | Other |
| Product Dimensions (W x L x H) | Not available |
| color of the actuating element | white |
| shape of the actuating element | round |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| proportion of dangerous failures | |
| Shape of the installation opening | round |
| design of the operating mechanism | Selector, short |
| material of the actuating element | plastic |
| Type of control element (EF006976) | Toggle |
| ● product component light source | No |
| Degree of protection (IP) (EF005474) | - |
| Suitable for illumination (EF001142) | true |
| surge voltage resistance rated value | 6 kV |
| Article Number (Market Facing Number) | 3SU1130-2BL60-3NA0 |
| Number of switch positions (EF000231) | 3 |
| reference code acc. to DIN EN 61346-2 | S |
| reference code acc. to DIN EN 81346-2 | S |
| ● product function positive opening | No |
| Degree of protection (NEMA) (EF011959) | NEMA 1, 2, 3, 3R, 4, 4X, 12, 13 |
| Switching function latching (EF007447) | FALSE |
| Type of electric connection (EF003961) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● ambient temperature during storage | -40 ... +80 °C |
| Outer diameter of the actuating element | 32.3 mm |
| product extension optional light source | Yes |
| ● ambient temperature during operation | -25 ... +70 °C |
| ● with low demand rate acc. to SN 31920 | 20 % |
| ● with high demand rate acc. to SN 31920 | 300 000 |
| Positive tolerance of installation diameter | 0.4 mm |
| design of the contact of auxiliary contacts | Silver alloy |
| manner of function of the actuating element | latching, 2x45° (10:30 h/12 h/13:30 h) |
| ● shock resistance acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| ● Mounting type of modules and accessories | Front plate mounting |
| Continuous current of the DIAZED fuse link gG | 10 A |
| Continuous current of the C characteristic MCB | 10 A; for a short-circuit current smaller than 400 A |
| Tightening torque of the screws in the bracket | 1 ... 1.2 N·m |
| ● vibration resistance acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| Continuous current of the quick DIAZED fuse link | 10 A |
| — operating voltage at AC at 50 Hz rated value | 5 ... 500 V |
| — operating voltage at AC at 60 Hz rated value | 5 ... 500 V |
| ● number of NC contacts for auxiliary contacts | 0 |
| ● number of NO contacts for auxiliary contacts | 2 |
| ● electrical endurance (switching cycles) typical | 10 000 000 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 2 |
| ● mechanical service life (switching cycles) typical | 1 000 000 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| ● Manufacturer's article number of the supplied holder | 3SU1500-0AA10-0AA0 |
| Environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %, no condensation in operation permitted for all devices behind front panel) |
| ● Manufacturer's article number of the supplied actuator | 3SU1032-2BL60-0AA0 |
| ● Type of electrical connection of modules and accessories | Spring-type terminal |
| ● failure rate [FIT] with low demand rate acc. to SN 31920 | 100 FIT |
| ● Manufacturer's article number 1 of supplied contact module | 3SU1400-1AA10-3BA0 |
| ● Manufacturer's article number 2 of supplied contact module | 3SU1400-1AA10-3BA0 |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| ● Shock resistance for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| ● type of connectable conductor cross-sections at AWG conductors | 2x (24 ... 16) |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 |
| ● Vibration resistance for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| ● Type of connectable conductor cross-sections solid without core end processing | 2x (0.25 ... 1.5 mm²) |
| ● Type of connectable conductor cross-sections finely stranded with core end processing | 2x (0.25 ... 0.75 mm²) |
| ● Type of connectable conductor cross-sections finely stranded without core end processing | 2x (0.25 ... 1.5 mm²) |
