3SU1130-0AB10-1CA0

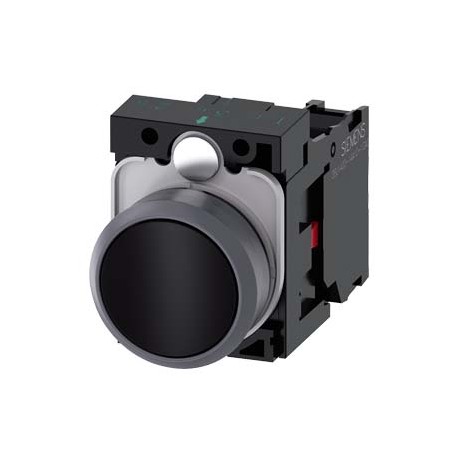

3SU1130-0AB10-1CA0 SIEMENS Pushbutton, 22 mm, round, plastic with metal front ring, black, pushbutton, flat,..
$0.00USD
3284 in stock
Key Specifications
:Value
EAN:4011209969438
UPC:804766071423
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209969438 |
| UPC | 804766071423 |
| ETIM | 4 |
| IDEA | 4 |
| Color | |
| Width | 30 mm |
| Height | 40 mm |
| UNSPSC | 15 |
| eClass | 6 |
| ● at AC | |
| ● at DC | |
| Group Code | R711 |
| Price Group | 41J |
| ● typical | 10 000 000 |
| Metal Factor | LAO----- |
| Product line | Plastic with metal front ring, matt, 22 mm |
| Mounting type | front panel mounting |
| Product Group | 5452 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Actuators and indicators, 22 mm, plastic with metal front ring, matte |
| last modified: | 08/19/2020 |
| Mounting height | 11 mm |
| Net Weight (kg) | 0,060 Kg |
| Type of voltage | |
| thermal current | 10 A |
| — rated value | 5 ... 500 V |
| Product function | |
| Shock resistance | |
| ● Light source | No |
| Country of origin | Germany |
| Marine / Shipping | other |
| Operating voltage | |
| Product component | |
| Test Certificates | Marine / Shipping |
| Tightening torque | |
| mounting diameter | 22.3 mm |
| Installation width | 29.5 mm |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| installation depth | 49.7 mm |
| product brand name | SIRIUS ACT |
| ● during storage | -40 ... +80 °C |
| Ambient temperature | |
| Contact reliability | One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA) |
| Degree of pollution | 3 |
| Packaging Dimension | 40,00 x 80,00 x 36,00 |
| Product Description | Pushbutton, 22 mm, round, plastic with metal front ring, black, pushbutton, flat, momentary contact type, with holder, 1 NC, screw terminal |
| Product designation | Pushbuttons |
| Vibration resistance | |
| ● during operation | -25 ... +70 °C |
| ● positive opening | Yes |
| Design of the product | Complete unit |
| Number of LED modules | 0 |
| Material of the holder | Plastic |
| Color of the front ring | sand gray |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● Protection class IP | IP66, IP67, IP69(IP69K) |
| Colour button (EF000190) | Black |
| Design of the front ring | Standard |
| General Product Approval | Declaration of Conformity |
| Hole diameter (EF000079) | 22.3 |
| Number of command points | 1 |
| Product type designation | 3SU1 |
| Special Test Certificate | Type Test Certificates/Test Report |
| Spring-return (EF001407) | FALSE |
| Width opening (EF004565) | 29.5 |
| — at 50 Hz rated value | 5 ... 500 V |
| — at 60 Hz rated value | 5 ... 500 V |
| Height opening (EF004778) | 11.0 |
| Number of contact modules | 1 |
| Type of button (EF001546) | Mushroom |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| Export Control Regulations | AL : N / ECCN : N |
| With front ring (EF006014) | true |
| material of the front ring | Metal, matt |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50 g / 11 ms |
| ● of the supplied holder | 3SU1500-0AA10-0AA0 |
| Operating frequency maximum | 3 600 1/h |
| Standard lead time ex-works | 3 Day/Days |
| Surcharge for Raw Materials | None |
| Colour front ring (EF002429) | Grey |
| Package size unit of measure | MM |
| Product component front ring | Yes |
| ● of the actuating element | black |
| ● of the operating voltage | AC/DC |
| ● of the supplied actuator | 3SU1030-0AB10-0AA0 |
| Manufacturer's article number | |
| ● with screw-type terminals | 0.8 ... 0.9 N·m |
| Material front ring (EF005972) | Metal |
| Product Dimensions (W x L x H) | Not available |
| Shape of the actuating element | round |
| Supply voltage lamp (EF006522) | - |
| ● of modules and accessories | Front plate mounting |
| Degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| ● 1 of supplied contact module | 3SU1400-1AA10-1CA0 |
| Construction type lens (EF006253) | - |
| Design of the operating mechanism | Button, flat |
| Material of the actuating element | plastic |
| Shape of the installation opening | round |
| ● Insulation voltage rated value | 500 V |
| Degree of protection (IP) (EF005474) | IP67/IP69K |
| Suitable for illumination (EF001142) | false |
| Surge voltage resistance rated value | 6 kV |
| Article Number (Market Facing Number) | 3SU1130-0AB10-1CA0 |
| Reference code acc. to DIN EN 81346-2 | S |
| reference code acc. to DIN EN 61346-2 | S |
| Degree of protection (NEMA) (EF011959) | Other |
| Number of command positions (EF001372) | 1 |
| Switching function latching (EF007447) | FALSE |
| Type of electric connection (EF003961) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Electrical endurance (switching cycles) | |
| Outer diameter of the actuating element | 29.45 mm |
| Product extension optional Light source | No |
| ● Protection class IP of the terminal | IP20 |
| Mechanical service life (switching cycles) | |
| Design of the contact of auxiliary contacts | Silver alloy |
| Manner of function of the actuating element | momentary contact type |
| Positive tolerance of installation diameter | 0.4 mm |
| Number of NC contacts for auxiliary contacts | 1 |
| Number of NO contacts for auxiliary contacts | 0 |
| Continuous current of the DIAZED fuse link gG | 10 A |
| Continuous current of the C characteristic MCB | 10 A; for a short-circuit current smaller than 400 A |
| Tightening torque of the screws in the bracket | 1 ... 1.2 N·m |
| Continuous current of the quick DIAZED fuse link | 10 A |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %, no condensation in operation permitted for all devices behind front panel) |
| ● Type of electrical connection of modules and accessories | Screw-type terminal |
| ● Type of connectable conductor cross-sections at AWG conductors | 2x (18 ... 14) |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| ● Type of connectable conductor cross-sections solid with core end processing | 2x (0.5 ... 0.75 mm²) |
| ● Type of connectable conductor cross-sections solid without core end processing | 2x (1.0 ... 1.5 mm²) |
| ● Type of connectable conductor cross-sections finely stranded with core end processing | 2x (0.5 ... 1.5 mm²) |
| ● Type of connectable conductor cross-sections finely stranded without core end processing | 2x (1,0 ... 1,5 mm²) |
