3SU1100-2BF60-3BA0

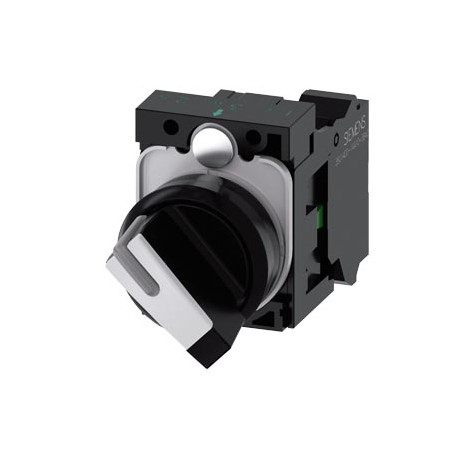

3SU1100-2BF60-3BA0 SIEMENS Selector switch, illuminable, 22 mm, round, plastic, white, selector switch, shor..
$0.00USD
3226 in stock
Key Specifications
:Confirmation
EAN:4011209957572
UPC:804766070433
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209957572 |
| UPC | 804766070433 |
| ETIM | 5 |
| IDEA | 4 |
| width | 32.3 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 40 mm |
| ● at AC | |
| Group Code | R711 |
| Date5/4/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LAO----- |
| product line | Plastic, black, 22 mm |
| Product Group | 5452 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| ● clockwise | 90° |
| Commodity Code | 85365080 |
| Product family | Actuators and indicators, 22 mm, round, plastic, black |
| last modified: | 1/26/2022 |
| Net Weight (kg) | 0,058 Kg |
| actuating angle | |
| mounting height | 28.8 mm |
| thermal current | 10 A |
| fastening method | |
| shock resistance | |
| Country of origin | Germany |
| Marine / Shipping | other |
| mounting diameter | 22.3 mm |
| operating voltage | |
| ● at AWG cables | 2x (24 ... 16) |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| installation depth | 49.7 mm |
| installation width | 32.3 mm |
| product brand name | SIRIUS ACT |
| ● during storage | -40 ... +80 °C |
| Packaging Dimension | 50,00 x 100,00 x 30,00 |
| Product Description | Selector switch, illuminable, 22 mm, round, plastic, white, selector switch, short, 2 switch positions O-I, latching, 10:30h/13:30h, with holder, 1 NO, Spring-type terminal |
| ambient temperature | |
| contact reliability | One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA) |
| degree of pollution | 3 |
| product designation | Selector switches |
| protection class IP | IP66, IP67, IP69(IP69K) |
| ● of the terminal | IP20 |
| vibration resistance | |
| ● during operation | -25 ... +70 °C |
| design of the product | Complete unit |
| number of LED modules | 0 |
| ● at DC rated value | 5 ... 500 V |
| material of the holder | Plastic |
| Product Lifecycle (PLM) | PM300:Active Product |
| color of the front ring | black |
| Colour button (EF000190) | White |
| General Product Approval | Declaration of Conformity |
| Hole diameter (EF000079) | 22.3 |
| Spring-return (EF001407) | FALSE |
| Width opening (EF004565) | 32.3 |
| design of the front ring | standard |
| number of command points | 1 |
| product type designation | 3SU1 |
| — at 50 Hz rated value | 5 ... 500 V |
| — at 60 Hz rated value | 5 ... 500 V |
| Declaration of Conformity | Test Certificates |
| Height opening (EF004778) | 28.8 |
| Supply voltage (EF004127) | - |
| number of contact modules | 1 |
| Export Control Regulations | AL : N / ECCN : N |
| With front ring (EF006014) | true |
| material of the front ring | plastic |
| ● of the supplied holder | 3SU1550-0AA10-0AA0 |
| Standard lead time ex-works | 55 Day/Days |
| Surcharge for Raw Materials | None |
| operating frequency maximum | 1 800 1/h |
| Colour front ring (EF002429) | Black |
| Package size unit of measure | MM |
| UK Declaration of Conformity | Type Test Certificates/Test Report |
| With light source (EF005905) | false |
| product component front ring | Yes |
| ● of the supplied actuator | 3SU1002-2BF60-0AA0 |
| Substance Prohibitance (Date) | 10/01/2014 |
| manufacturer's article number | |
| number of switching positions | 2 |
| type of electrical connection | spring-loaded terminals |
| Material front ring (EF005972) | Plastic |
| color of the actuating element | white |
| insulation voltage rated value | 500 V |
| product component light source | No |
| shape of the actuating element | round |
| ● according to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| ● of modules and accessories | Spring-type terminal |
| design of the actuating element | Selector, short |
| ● according to IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| proportion of dangerous failures | |
| material of the actuating element | plastic |
| product function positive opening | No |
| shape of the installation opening | round |
| Type of control element (EF006976) | Toggle |
| Degree of protection (IP) (EF005474) | - |
| Suitable for illumination (EF001142) | true |
| surge voltage resistance rated value | 6 kV |
| Article Number (Market Facing Number) | 3SU1100-2BF60-3BA0 |
| Number of switch positions (EF000231) | 2 |
| ● solid without core end processing | 2x (0.25 ... 1.5 mm²) |
| Degree of protection (NEMA) (EF011959) | NEMA 1, 2, 3, 3R, 4, 4X, 12, 13 |
| Switching function latching (EF007447) | FALSE |
| Type of electric connection (EF003961) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| outer diameter of the actuating element | 32.3 mm |
| product extension optional light source | Yes |
| reference code according to IEC 81346-2 | S |
| type of voltage of the operating voltage | AC/DC |
| design of the contact of auxiliary contacts | Silver alloy |
| positive tolerance of installation diameter | 0.4 mm |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 1 |
| type of connectable conductor cross-sections | |
| ● finely stranded with core end processing | 2x (0.25 ... 0.75 mm²) |
| ● of supplied contact module at position 1 | 3SU1400-1AA10-3BA0 |
| continuous current of the DIAZED fuse link gG | 10 A |
| continuous current of the C characteristic MCB | 10 A; for a short-circuit current smaller than 400 A |
| tightening torque of the screws in the bracket | 1 ... 1.2 N·m |
| ● with low demand rate according to SN 31920 | 20 % |
| electrical endurance (switching cycles) typical | 10 000 000 |
| principle of operation of the actuating element | latching, 90° (10:30 h/13:30 h) |
| ● finely stranded without core end processing | 2x (0.25 ... 1.5 mm²) |
| ● with high demand rate according to SN 31920 | 20 % |
| continuous current of the quick DIAZED fuse link | 10 A |
| mechanical service life (switching cycles) typical | 1 000 000 |
| ● for railway applications according to EN 61373 | Category 1, Class B |
| Number of contacts as change-over contact (EF008257) | 0 |
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J |
| B10 value with high demand rate according to SN 31920 | 100 000 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| failure rate [FIT] with low demand rate according to SN 31920 | 100 FIT |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel) |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityConfirmationDeclaration of ConformityTest CertificatesMarine / ShippingUK Declaration of ConformityType Test Certificates/Test ReportSpecial Test CertificateMarine / ShippingotherConfirmation | General Product Approval |
Product Description
SELECTOR, ILLUMINABLE, 22MM, ROUND, PLASTIC, BLACK, WHITE, HANDLE, SHORT, 2 POSITIONS O-I, SUSTAINED, 10:30H/13:30H, WITH SUPPORT, 1NA, SPRING TERMINALS
