3SU1051-6AA60-0AA0

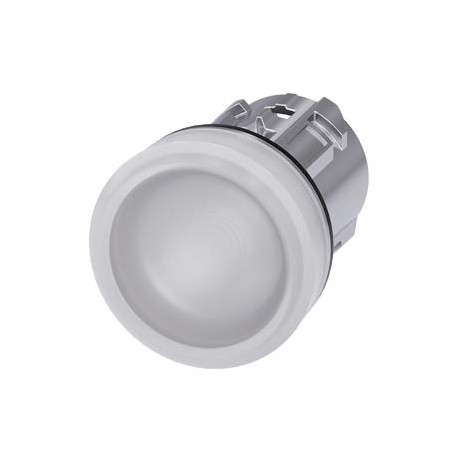

3SU1051-6AA60-0AA0 SIEMENS Indicator lights, 22 mm, round, metal, shiny, white, lens, smooth
$0.00USD
3900 in stock
Key Specifications
:Confirmation
EAN:4011209946460
UPC:804766069154
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209946460 |
| UPC | 804766069154 |
| ETIM | 5 |
| IDEA | 4 |
| color | |
| width | 29.5 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 29.5 mm |
| Group Code | R711 |
| Confirmation | |
| Date5/3/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | None |
| product line | Metal, shiny, 22 mm |
| Product Group | 5452 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | Actuators and indicators, 22 mm, metal, shiny |
| last modified: | 1/27/2022 |
| Net Weight (kg) | 0,025 Kg |
| mounting height | 11.8 mm |
| shock resistance | |
| ● light source | Yes |
| Country of origin | China |
| Test Certificates | Marine / Shipping |
| mounting diameter | 22.3 mm |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| installation depth | 24.4 mm |
| installation width | 29.5 mm |
| product brand name | SIRIUS ACT |
| ● contact module | No |
| ● during storage | -40 ... +80 °C |
| Packaging Dimension | 30,00 x 45,00 x 30,00 |
| Product Description | Indicator lights, 22 mm, round, metal, shiny, white, lens, smooth |
| ambient temperature | |
| product designation | Indicator lights |
| protection class IP | IP66, IP67, IP69(IP69K) |
| vibration resistance | |
| ● during operation | -25 ... +70 °C |
| design of the product | Actuating/signaling element |
| Colour lens (EF000207) | - |
| Minimum order quantity | 5 |
| Product Lifecycle (PLM) | PM300:Active Product |
| Type of lens (EF008343) | High |
| General Product Approval | Declaration of Conformity |
| Hole diameter (EF000079) | 22.3 |
| Width opening (EF004565) | 29.5 |
| product type designation | 3SU1 |
| Height opening (EF004778) | 11.8 |
| Export Control Regulations | AL : N / ECCN : N |
| With front ring (EF006014) | false |
| product extension optional | |
| Standard lead time ex-works | 55 Day/Days |
| Surcharge for Raw Materials | None |
| Colour front ring (EF002429) | - |
| Package size unit of measure | MM |
| product component front ring | No |
| ● of the actuating element | white |
| Substance Prohibitance (Date) | 10/01/2014 |
| Material front ring (EF005972) | - |
| shape of the actuating element | round |
| ● according to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| ● according to IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| Construction type lens (EF006253) | Round |
| material of the actuating element | plastic |
| shape of the installation opening | round |
| Type Test Certificates/Test Report | |
| Article Number (Market Facing Number) | 3SU1051-6AA60-0AA0 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| outer diameter of the actuating element | 29.45 mm |
| reference code according to IEC 81346-2 | P |
| positive tolerance of installation diameter | 0.4 mm |
| tightening torque of the screws in the bracket | 1 ... 1.2 N·m |
| Degree of protection (IP), front side (EF003118) | - |
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J |
| Suitable for number of built-in signal lights (EF006669) | 1 |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%) |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityConfirmationUK Declaration of ConformityTest CertificatesMarine / ShippingType Test Certificates/Test ReportotherConfirmation | General Product Approval |
Product Description
SENALIZATION LAMP, 22MM, ROUND, METAL, GLOSSY, WHITE, LINSE, GLATT
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
