In Stock Hot Product
3SU1050-5KF01-0AA0

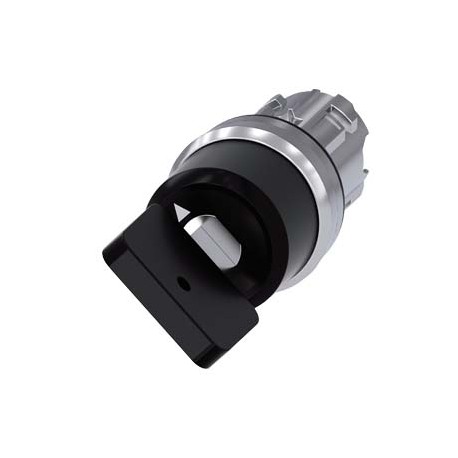

3SU1050-5KF01-0AA0 SIEMENS key-operated switch CES, 22 mm, round, metal, shiny, Lock No. VL5, with 2 keys, 2..
$0.00USD
4233 in stock
Key Specifications
:VersionClassificationeClass627-37-12-13eClass7.127-37-12-13eClass827-37-12-13eClass927-37-12-13eClass9.127-37-12-13ETIM5EC000222ETIM6EC000222ETIM7EC000222ETIM8EC000222IDEA45247UNSPSC1539-12-22-21
EAN:4011209948921
UPC:804766068140
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-12-13eClass7.127-37-12-13eClass827-37-12-13eClass927-37-12-13eClass9.127-37-12-13ETIM5EC000222ETIM6EC000222ETIM7EC000222ETIM8EC000222IDEA45247UNSPSC1539-12-22-21 | |
| EAN | 4011209948921 |
| UPC | 804766068140 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | R711 |
| Metal Factor | None |
| Product Group | 5452 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | Actuators and indicators, 22 mm, metal, shiny |
| Net Weight (kg) | 0,020 Kg |
| Country of origin | Czech Republic |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| Packaging Dimension | 60,00 x 100,00 x 30,00 |
| Product Description | key-operated switch Siemens, 22 mm, round, metal, shiny, lock no. VL5, with 2 keys, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h, key removal O |
| Product Lifecycle (PLM) | PM300:Active Product |
| Hole diameter (EF000079) | 22.3 |
| Spring-return (EF001407) | FALSE |
| Width opening (EF004565) | 29.5 |
| Height opening (EF004778) | 61.0 |
| Export Control Regulations | AL : N / ECCN : N |
| With front ring (EF006014) | true |
| Standard lead time ex-works | 25 Day/Days |
| Surcharge for Raw Materials | None |
| Colour front ring (EF002429) | Other |
| Package size unit of measure | MM |
| Material front ring (EF005972) | Metal |
| Colour control element (EF007167) | Silver |
| Construction type lens (EF006253) | Rectangular |
| Type of control element (EF006976) | - |
| Suitable for illumination (EF001142) | false |
| Article Number (Market Facing Number) | 3SU1050-5KF01-0AA0 |
| Colour indicator light cap (EF007165) | - |
| Number of switch positions (EF000231) | 2 |
| Degree of protection (NEMA) (EF011959) | 4X |
| Switching function latching (EF007447) | FALSE |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Degree of protection (IP), front side (EF003118) | IP68 |
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
CES KEY SWITCH, 22MM, ROUND, METAL, SHINY, NO. VL5 LOCK, WITH 2 KEYS, 2 O-I POSITIONS, SUSTAINED, ANGLE 90 DEGREES, 10:30H/13:30H, EXTRACTION POSITION OR
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
