3SU1032-2BL40-0AA0

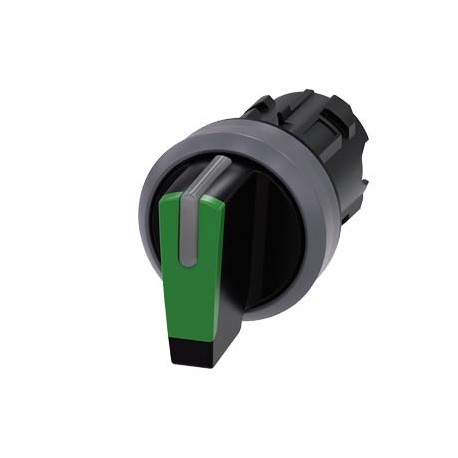

3SU1032-2BL40-0AA0 SIEMENS Selector switch, illuminable, 22 mm, round, plastic with metal front ring, green,..
$0.00USD
3012 in stock
Key Specifications
:Value
EAN:4011209961234
UPC:804766066566
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209961234 |
| UPC | 804766066566 |
| ETIM | 4 |
| IDEA | 4 |
| Width | 32.3 mm |
| Height | 32.3 mm |
| UNSPSC | 15 |
| eClass | 6 |
| B10 value | |
| Group Code | R711 |
| Price Group | 41J |
| ● typical | 1 000 000 |
| Confirmation | |
| Metal Factor | None |
| Product line | Plastic with metal front ring, matt, 22 mm |
| Product Group | 5452 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| ● clockwise | 45° |
| Commodity Code | 85389099 |
| Product family | Actuators and indicators, 22 mm, plastic with metal front ring, matte |
| last modified: | 08/06/2020 |
| Actuating angle | |
| Mounting height | 28.8 mm |
| Net Weight (kg) | 0,020 Kg |
| Shock resistance | |
| Country of origin | Czech Republic |
| Mounting diameter | 22.3 mm |
| Test Certificates | Marine / Shipping |
| ● anticlockwise | 45° |
| Failure rate [FIT] | |
| Installation depth | 25.4 mm |
| Installation width | 32.3 mm |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| Product brand name | SIRIUS ACT |
| ● during storage | -40 ... +80 °C |
| Ambient temperature | |
| Packaging Dimension | 30,00 x 52,00 x 28,00 |
| Product Description | Selector switch, illuminable, 22 mm, round, plastic with metal front ring, green, selector switch, short, 3 switch positions I-O-II, latching, actuating angle 2x45°, 10:30h/12h/13:30h |
| Product designation | Selector switches |
| Protection class IP | IP66, IP67, IP69(IP69K) |
| Vibration resistance | |
| ● during operation | -25 ... +70 °C |
| Design of the product | Actuating/signaling element |
| Color of the front ring | sand gray |
| Product Lifecycle (PLM) | PM300:Active Product |
| Design of the front ring | standard |
| General Product Approval | Declaration of Conformity |
| Hole diameter (EF000079) | 22.3 |
| Number of command points | 1 |
| Product type designation | 3SU1 |
| Spring-return (EF001407) | FALSE |
| Width opening (EF004565) | 32.3 |
| Height opening (EF004778) | 28.8 |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| Export Control Regulations | AL : N / ECCN : N |
| Material of the front ring | Metal, matt |
| With front ring (EF006014) | true |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50 g / 11 ms |
| Operating frequency maximum | 1 800 1/h |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| Colour front ring (EF002429) | Grey |
| Package size unit of measure | MM |
| Product component front ring | Yes |
| Number of switching positions | 3 |
| Color of the actuating element | green |
| Material front ring (EF005972) | Metal |
| Product Dimensions (W x L x H) | Not available |
| Shape of the actuating element | Handle |
| Degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| Proportion of dangerous failures | |
| Colour control element (EF007167) | Green |
| Construction type lens (EF006253) | Rectangular |
| Design of the operating mechanism | Selector, short |
| Material of the actuating element | plastic |
| Shape of the installation opening | round |
| Type Test Certificates/Test Report | |
| Type of control element (EF006976) | - |
| Suitable for illumination (EF001142) | true |
| Article Number (Market Facing Number) | 3SU1032-2BL40-0AA0 |
| Colour indicator light cap (EF007165) | Green |
| Number of switch positions (EF000231) | 3 |
| Reference code acc. to DIN EN 61346-2 | S |
| Reference code acc. to DIN EN 81346-2 | S |
| Degree of protection (NEMA) (EF011959) | 4X |
| Switching function latching (EF007447) | FALSE |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Outer diameter of the actuating element | 32.3 mm |
| Product extension optional Light source | Yes |
| ● with low demand rate acc. to SN 31920 | 20 % |
| Mechanical service life (switching cycles) | |
| ● with high demand rate acc. to SN 31920 | 300 000 |
| Manner of function of the actuating element | latching, 2x45° (10:30 h/12 h/13:30 h) |
| Positive tolerance of installation diameter | 0.4 mm |
| Degree of protection (IP), front side (EF003118) | IP68 |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| Environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %) |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityTest CertificatesMiscellaneousSpecial Test CertificateTest CertificatesMarine / ShippingType Test Certificates/Test ReportotherConfirmation | General Product Approval |
