3SU1000-3EA10-0AA0

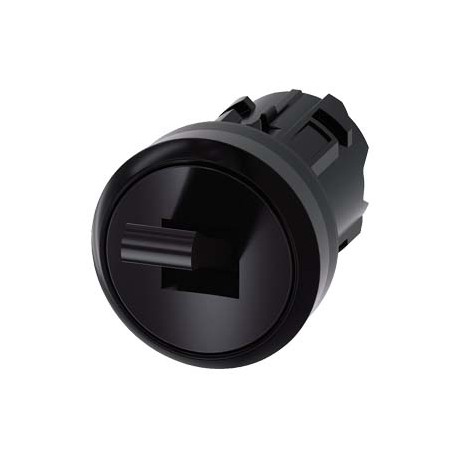

3SU1000-3EA10-0AA0 SIEMENS Toggle switch, 22 mm, round, plastic, black, 2 switch positions O-I, latching
$0.00USD
3258 in stock
Key Specifications
:Confirmation
EAN:4011209964761
UPC:804766340758
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209964761 |
| UPC | 804766340758 |
| ETIM | 5 |
| IDEA | 4 |
| color | |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | R711 |
| Metal Factor | None |
| product line | Plastic, black, 22 mm |
| Date5/14/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5452 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | Actuators and indicators, 22 mm, round, plastic, black |
| last modified: | 1/26/2022 |
| Net Weight (kg) | 0,017 Kg |
| mounting height | 22.3 mm |
| shock resistance | |
| ● light source | No |
| Country of origin | China |
| Marine / Shipping | other |
| Test Certificates | Marine / Shipping |
| mounting diameter | 22.3 mm |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| installation depth | 26.3 mm |
| installation width | 29.45 mm |
| product brand name | SIRIUS ACT |
| ● contact module | Yes |
| ● during storage | -40 ... +80 °C |
| Packaging Dimension | 32,00 x 50,00 x 32,00 |
| Product Description | Toggle switch, 22 mm, round, plastic, black, 2 switch positions O-I, latching |
| ambient temperature | |
| product designation | Toggle switches |
| protection class IP | IP66, IP67, IP69(IP69K) |
| vibration resistance | |
| ● during operation | -25 ... +70 °C |
| ● of the cover cap | other |
| design of the product | Actuating/signaling element |
| Product Lifecycle (PLM) | PM300:Active Product |
| color of the front ring | black |
| General Product Approval | Declaration of Conformity |
| Hole diameter (EF000079) | 22.3 |
| Spring-return (EF001407) | FALSE |
| Width opening (EF004565) | 29.45 |
| design of the front ring | Standard |
| number of command points | 1 |
| product type designation | 3SU1 |
| Height opening (EF004778) | 22.3 |
| Export Control Regulations | AL : N / ECCN : N |
| With front ring (EF006014) | true |
| material of the front ring | plastic |
| product extension optional | |
| Standard lead time ex-works | 55 Day/Days |
| Surcharge for Raw Materials | None |
| operating frequency maximum | 1 800 1/h |
| Colour front ring (EF002429) | Black |
| Package size unit of measure | MM |
| product component front ring | Yes |
| ● of the actuating element | black |
| Substance Prohibitance (Date) | 10/01/2014 |
| number of switching positions | 2 |
| Material front ring (EF005972) | Plastic |
| shape of the actuating element | Toggle lever |
| ● according to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| ● according to IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| Colour control element (EF007167) | Black |
| Construction type lens (EF006253) | Rectangular |
| material of the actuating element | plastic |
| shape of the installation opening | round |
| Type Test Certificates/Test Report | Special Test Certificate |
| Type of control element (EF006976) | - |
| Suitable for illumination (EF001142) | false |
| Article Number (Market Facing Number) | 3SU1000-3EA10-0AA0 |
| Colour indicator light cap (EF007165) | - |
| Number of switch positions (EF000231) | 2 |
| Degree of protection (NEMA) (EF011959) | 4X |
| Switching function latching (EF007447) | FALSE |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| outer diameter of the actuating element | 29.45 mm |
| reference code according to IEC 81346-2 | S |
| positive tolerance of installation diameter | 0.4 mm |
| principle of operation of the actuating element | latching |
| Degree of protection (IP), front side (EF003118) | IP68 |
| mechanical service life (switching cycles) typical | 1 000 000 |
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%) |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityConfirmationUK Declaration of ConformityTest CertificatesMarine / ShippingType Test Certificates/Test ReportSpecial Test CertificateMarine / ShippingotherConfirmation | General Product Approval |
