3SK2112-2AA10

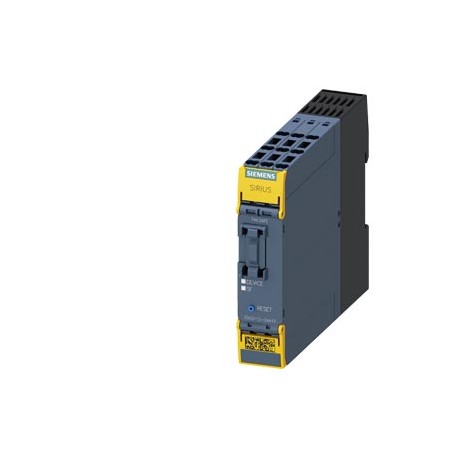

3SK2112-2AA10 SIEMENS SIRIUS safety relay Basic unit 3SK2 series 10 F-DI, 2 F-DQ, 1 DQ, 24 V DC Can be param..
$0.00USD
4861 in stock
Key Specifications
:Confirmation
EAN:4047621004938
UPC:804766163487
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4047621004938 |
| UPC | 804766163487 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 124.5 mm |
| width | 22.5 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 100 mm |
| ● solid | 1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²) |
| Group Code | R711 |
| ● at 24 V | 10 A |
| ● maximum | 0.05 mA |
| Date5/6/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | None |
| ● stranded | 20 ... 16 |
| Product Group | 3761 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| ● 2-channel | 0 |
| Commodity Code | 85371098 |
| Product family | SIRIUS 3SK2 basic units |
| last modified: | 3/29/2022 |
| Net Weight (kg) | 0,213 Kg |
| type of voltage | DC |
| Depth (EF000049) | 124.5 |
| Model (EF000010) | - |
| Width (EF000008) | 22.5 |
| fastening method | Snap-mounted to DIN rail or screw-mounted with additional push-in lug |
| input delay time | 0 ... 150 ms |
| number of inputs | |
| product category | Safety relay |
| product function | |
| residual current | |
| shock resistance | 15g / 11 ms |
| Country of origin | Germany |
| Height (EF000040) | 100.0 |
| Test Certificates | other |
| light test period | 3 ms |
| mounting position | any |
| number of outputs | |
| ● to the inputs | |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● during storage | -40 ... +80 °C |
| ● safety-related | 10 |
| ● single channel | 0 |
| ● to the outputs | |
| Packaging Dimension | 36,00 x 109,00 x 152,00 |
| Product Description | SIRIUS safety relay Basic unit 3SK2 series 10 F-DI, 2 F-DQ, 1 DQ, 24 V DC Can be parameterized via SIRIUS Safety ES 22.5 mm overall width Spring-type terminal (push-in) up to SILCL 3 (DIN EN 62061) Up to Performance Level E (ISO 13849-1) Output expansions 3SK1 and fail-safe motor starters 3RM1 via device connector connectable |
| ambient temperature | |
| degree of pollution | 3 |
| inrush current peak | |
| product designation | Base-Unit |
| protection class IP | IP20 |
| suitability for use | |
| ● of the terminal | IP20 |
| — shielded maximum | 1 000 m |
| ● during operation | -25 ... +60 °C |
| ● during transport | -40 ... +80 °C |
| ● of the enclosure | IP20 |
| ● valve monitoring | Yes |
| design of the product | 10 F-DI, 2 F-DQ, 1 DQ |
| readback time maximum | 400 ms |
| total current maximum | 6.5 A |
| ● at DC rated value | 24 V |
| conducted interference | |
| — unshielded maximum | 600 m |
| ● monitored start-up | Yes |
| ● non-safety-related | 0 |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at AWG cables solid | 1x (20 ... 16), 2x (20 ... 16) |
| General Product Approval | Functional Safety/Safety of Machinery |
| Release-delay (EF001129) | - |
| ● PROFIBUS DP protocol | Yes; when using the DP interface module; 64 bit cyclical data |
| ● PROFINET IO protocol | Yes; when using the PN interface module; 64-bit cyclic data |
| ● for signal <1> at DC | 15 ... 30 |
| ● with signal <0> at DC | -3 ... +5 V |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| ● according to IEC 61508 | 3 |
| ● according to IEC 62061 | 3 |
| ● at AWG cables stranded | 1x (20 ... 16), 2x (20 ... 16) |
| ● for signal <1> typical | 2.6 mA |
| ● parameterizable inputs | Yes |
| Standard lead time ex-works | 80 Day/Days |
| Surcharge for Raw Materials | None |
| With start input (EF003342) | - |
| operating frequency maximum | 2 000 1/h |
| operating power rated value | 2.5 W |
| ● EMERGENCY STOP function | Yes |
| ● parameterizable outputs | Yes |
| ● safety-related circuits | Yes |
| Evaluation inputs (EF008245) | - |
| Package size unit of measure | MM |
| Safety Integrity Level (SIL) | |
| ● safety-related 2-channel | 2 |
| Substance Prohibitance (Date) | 05/28/2009 |
| type of electrical connection | spring-loaded terminal (push-in) |
| ● muting, 2 sensor-parallel | Yes |
| ● muting, 4 sensor-parallel | Yes |
| input current at digital input | |
| input voltage at digital input | |
| insulation voltage rated value | 50 V |
| protocol optional is supported | |
| ● monitoring parameterizable | Yes |
| ● position switch monitoring | Yes |
| ● protective door monitoring | Yes |
| With muting function (EF004057) | false |
| configuration software required | Yes; Safety ES V1.0 and higher |
| duration of inrush current peak | |
| wire length of the signal cable | |
| ● evaluation: enabling switch | Yes |
| ● evaluation: selector switch | Yes |
| ● muting, 4 sensor-sequential | Yes |
| ● proximity switch monitoring | Yes |
| With feedback circuit (EF003343) | - |
| Rail mounting possible (EF003972) | FALSE |
| With approval for TÜV (EF004144) | true |
| With detachable clamps (EF003340) | true |
| dark period of the common drivers | 3 ms |
| number of function blocks typical | 50 |
| recovery time of the safe outputs | 0 ms |
| Type Test Certificates/Test Report | Confirmation |
| air pressure according to SN 31205 | 90 ... 106 kPa |
| control supply voltage rated value | 24 V |
| relative humidity during operation | 10 ... 95 % |
| ● monitoring of floating sensors | Yes |
| With approval for BG BIA (EF004145) | - |
| product function removable terminal | Yes |
| category according to EN ISO 13849-1 | 4 |
| surge voltage resistance rated value | 800 V |
| ● EMERGENCY-OFF circuit monitoring | Yes |
| Article Number (Market Facing Number) | 3SK2112-2AA10 |
| SIL according to IEC 61508 (EF009889) | 3 |
| Voltage type for actuating (EF008242) | DC |
| stop category according to EN 60204-1 | 0 / 1 |
| ● for testing contact-based sensors | 2 |
| ● pressure-sensitive mat monitoring | Yes |
| Type of electric connection (EF003961) | Spring clamp connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● monitoring of non-floating sensors | Yes |
| reference code according to IEC 81346-2 | F |
| ● evaluation: two-hand operator panel | Yes |
| With approval according to UL (EF001783) | true |
| ● two-hand control according to EN 574 | Yes |
| Category according to EN 954-1 (EF006782) | - |
| input delay time at digital input maximum | 150 ms |
| touch protection against electrical shock | finger-safe |
| product function suitable for AS-i Power24V | No |
| protocol is supported AS-Interface protocol | No |
| ● due to burst according to IEC 61000-4-4 | 2 kV (power ports) / 1 kV (signal ports) |
| ● magnetically operated switch monitoring | Yes |
| ● protective door monitoring with tumbler | Yes |
| Suitable for monitoring of valves (EF007272) | true |
| product function diagnostics with CTT2 slave | No |
| type of connectable conductor cross-sections | |
| ● finely stranded with core end processing | 1x (0.5 ... 1.0 mm²), 2x (0.5 ... 1.0 mm²) |
| ● at digital output with signal <0> maximum | 0.1 mA |
| Stop category according to IEC 60204 (EF007498) | 0 + 1 |
| hardware fault tolerance according to IEC 61508 | 1 |
| performance level (PL) according to ISO 13849-1 | e |
| type of digital inputs according to IEC 60947-1 | Type 1 |
| vibration resistance according to IEC 60068-2-6 | 5 ... 500 Hz: 0.75 mm |
| PFHD with high demand rate according to EN 62061 | 0.00000001 1/h |
| Rated control supply voltage Us at DC (EF003980) | ['24', '24'] |
| ingress aquisition time at digital input maximum | 60 ms |
| ● opto-electronic protection device monitoring | Yes |
| EMC emitted interference according to IEC 60947-1 | class A |
| SIL Claim Limit (subsystem) according to EN 62061 | 3 |
| PFDavg with low demand rate according to IEC 61508 | 0.000015 |
| Type of safety according to IEC 61496-1 (EF004105) | - |
| electrostatic discharge according to IEC 61000-4-2 | 4 kV contact discharge / 8 kV air discharge |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| ● at the digital outputs short-circuit protection | Yes |
| Region Specific PriceGroup / Headquarter Price Group | 41L / 41L |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['-', '-'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['-', '-'] |
| Suitable for monitoring of tactile sensors (EF007271) | - |
| ● evaluation: electro-sensitive protective equipment | Yes |
| AWG number as coded connectable conductor cross section | |
| Suitable for monitoring of magnetic switches (EF007266) | true |
| Suitable for monitoring of position switches (EF007270) | true |
| installation altitude at height above sea level maximum | 2 000 m |
| protocol is supported ASIsafe (Safety at work) protocol | No |
| Performance level according to EN ISO 13849-1 (EF007399) | - |
| Suitable for monitoring of proximity switches (EF007267) | true |
| design of the contactless switching element safety-related | P potential |
| diagnostics test interval by internal test function maximum | 1 000 s |
| Suitable for monitoring of emergency-stop circuits (EF007268) | true |
| number of outputs as contact-less semiconductor switching element | |
| Number of outputs, safety related, delayed, with contact (EF003345) | - |
| switching capacity current of semiconductor outputs at DC-13 at 24 V | 4 A |
| Number of outputs, safety related, delayed, semiconductors (EF003347) | - |
| Number of outputs, safety related, undelayed, with contact (EF003344) | 0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 28.05.2009 |
| number of outputs as contact-affected switching element safety-related | |
| Number of outputs, safety related, undelayed, semiconductors (EF003346) | 2 |
| Number of outputs, signalling function, delayed, with contact (EF003349) | - |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead titanium zircon... CAS-No. 12626-81-2 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead titanium zirconium oxideBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| Suitable for monitoring of optoelectronic protection equipment (EF007269) | true |
| Number of outputs, signalling function, delayed, semiconductors (EF003351) | - |
| Number of outputs, signalling function, undelayed, with contact (EF003348) | - |
| Number of outputs, signalling function, undelayed, semiconductors (EF003350) | - |
| connectable conductor cross-section finely stranded with core end processing | 0.5 ... 1 mm² |
| suitability for use for monitoring of optoelectronic protective devices according to IEC 61496-1 | Yes |
| General Product ApprovalFunctional Safety/Safety of MachineryDeclaration of ConformityConfirmationType Examination CertificateTest CertificatesotherType Test Certificates/Test ReportConfirmation | General Product Approval |
