3SK1230-1AW20

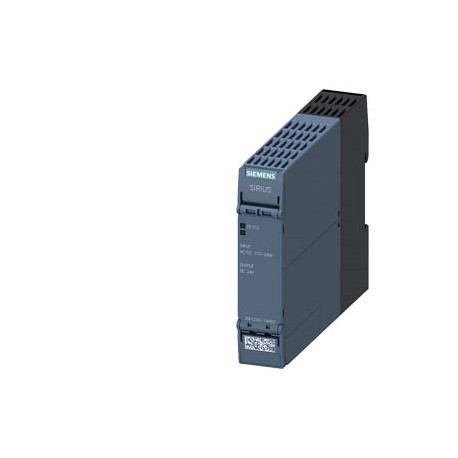

3SK1230-1AW20 SIEMENS SIRIUS safety relay Power supply for 3SK1 Advanced series Us 110-240 V AC/DC screw ter..
$0.00USD
4348 in stock
Key Specifications
:Confirmation
EAN:4011209913882
UPC:887621549152
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209913882 |
| UPC | 887621549152 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 121.6 mm |
| width | 22.5 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 100 mm |
| ● at AC | |
| ● at DC | 0.85 ... 1.1 |
| ● solid | 1x (0.5 ... 2.5 mm²), 2x (1.0 ... 1.5 mm²) |
| Group Code | R711 |
| Date5/5/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | None |
| — at 50 Hz | 0.85 ... 1.1 |
| — at 60 Hz | 0.85 ... 1.1 |
| Product Group | 3761 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364900 |
| Product family | Input expansions |
| last modified: | 12/23/2020 |
| power loss [W] | 17 W |
| Net Weight (kg) | 0,220 Kg |
| Depth (EF000049) | 121.6 |
| Width (EF000008) | 22.5 |
| fastening method | screw and snap-on mounting |
| product category | Safety relays |
| shock resistance | 10g / 11 ms |
| Country of origin | Germany |
| Height (EF000040) | 100.0 |
| mounting position | any |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● during storage | -40 ... +80 °C |
| Packaging Dimension | 36,00 x 109,00 x 152,00 |
| Product Description | SIRIUS safety relay Power supply for 3SK1 Advanced series Us = 110-240 V AC/DC screw terminal |
| ambient temperature | |
| degree of pollution | 3 |
| product designation | Power supply |
| ● finely stranded | |
| overvoltage category | 3 |
| ● during operation | -25 ... +60 °C |
| Stabilized (EF005302) | - |
| ● at DC rated value | 110 ... 240 V |
| control supply voltage | |
| type of current supply | 24 V / 0,6 A |
| Power output (EF003034) | 17.0 |
| Product Lifecycle (PLM) | PM300:Active Product |
| EMC emitted interference | IEC 60947-5-1, Class A |
| General Product Approval | EMC |
| consumed current maximum | 0.25 A |
| — at 50 Hz rated value | 110 ... 240 V |
| — at 60 Hz rated value | 110 ... 240 V |
| Built-in width (EF000846) | 22.5 |
| Declaration of Conformity | Test Certificates |
| Built-in height (EF000332) | 100.0 |
| Export Control Regulations | AL : N / ECCN : N |
| Modular version (EF001126) | true |
| output current rated range | 0.6 A |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Power consumption (EF000346) | 17.0 |
| UK Declaration of Conformity | Type Test Certificates/Test Report |
| — with core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²) |
| type of electrical connection | screw-type terminals |
| Short-circuit-proof (EF007332) | true |
| insulation voltage rated value | 300 V |
| Max. output current 1 (EF008284) | 0.6 |
| Max. output current 2 (EF008285) | - |
| Max. output current 3 (EF008286) | - |
| output voltage at DC rated value | 24 V |
| Rail mounting possible (EF003972) | FALSE |
| Wall mounting possible (EF003973) | FALSE |
| air pressure according to SN 31205 | 900 ... 1 060 hPa |
| design of short-circuit protection | automatically start-up |
| relative humidity during operation | 10 ... 95 % |
| Direct mounting possible (EF005689) | FALSE |
| Degree of protection (IP) (EF005474) | IP20 |
| Output voltage stabilized (EF003092) | - |
| display version for normal operation | Green LED for 24 V OK |
| protection class IP of the enclosure | IP20 |
| surge voltage resistance rated value | 4 000 V |
| Article Number (Market Facing Number) | 3SK1230-1AW20 |
| Rated supply voltage at DC (EF007078) | ['110', '240'] |
| SIL according to IEC 61508 (EF009889) | - |
| Degree of protection (NEMA) (EF011959) | - |
| Type of electric connection (EF003961) | Screw connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| 1st secondary output voltage (EF006792) | ['24.0', '24.0'] |
| 2nd secondary output voltage (EF006797) | ['-', '-'] |
| 3rd secondary output voltage (EF006800) | ['-', '-'] |
| Secondary voltage adjustable (EF007002) | - |
| Suitable for safety functions (EF001597) | - |
| Nominal value output current 1 (EF009396) | - |
| Nominal value output current 2 (EF009397) | - |
| Nominal value output current 3 (EF009398) | - |
| Nominal value output voltage 1 (EF009393) | - |
| Nominal value output voltage 2 (EF009394) | - |
| Nominal value output voltage 3 (EF009395) | - |
| Voltage type of supply voltage (EF002991) | AC/DC |
| property of the output short-circuit proof | Yes |
| Rated supply voltage at AC 50 Hz (EF007076) | ['110.0', '240.0'] |
| Rated supply voltage at AC 60 Hz (EF007077) | ['110.0', '240.0'] |
| galvanic isolation between input and output | Yes |
| type of connectable conductor cross-sections | |
| Width in number of modular spacings (EF002950) | - |
| product feature parallel switching of channels | No |
| required spacing for grounded parts at the side | 5 mm |
| vibration resistance according to IEC 60068-2-6 | 5 ... 500 Hz: 0.75 mm |
| Region Specific PriceGroup / Headquarter Price Group | 41L / 41L |
| installation altitude at height above sea level maximum | 2 000 m |
| required spacing with side-by-side mounting at the side | 0 mm |
| Performance level according to EN ISO 13849-1 (EF007399) | - |
| operating range factor control supply voltage rated value | |
| type of connectable conductor cross-sections at AWG cables | |
| Compliance with the substance restrictions according to RoHS directive | Since: 05.11.2012 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Perfluorobutane sulfonic ... > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Perfluorobutane sulfonic acid (PFBS) and its saltsBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| General Product ApprovalEMCDeclaration of ConformityConfirmationDeclaration of ConformityTest CertificatesotherUK Declaration of ConformityType Test Certificates/Test ReportConfirmation | General Product Approval |
