3SF1124-1KA00-1BA2

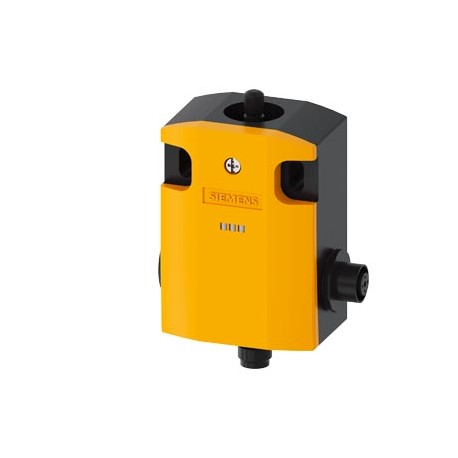

3SF1124-1KA00-1BA2 SIEMENS Basic switch without actuator head Metal enclosure, 56 mm wide ASIsafe integrated..
$0.00USD
4648 in stock
Key Specifications
:VersionClassificationeClass627-27-06-01eClass7.127-27-06-01eClass827-27-06-01eClass927-27-06-01eClass9.127-27-06-01ETIM5EC000030ETIM6EC000030ETIM7EC000030ETIM8EC000030IDEA45202UNSPSC1439-12-22-13UNSPSC1539-12-22-13
EAN:4011209695269
UPC:754554955964
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-27-06-01eClass7.127-27-06-01eClass827-27-06-01eClass927-27-06-01eClass9.127-27-06-01ETIM5EC000030ETIM6EC000030ETIM7EC000030ETIM8EC000030IDEA45202UNSPSC1439-12-22-13UNSPSC1539-12-22-13 | |
| EAN | 4011209695269 |
| UPC | 754554955964 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R711 |
| Metal Factor | None |
| Product Group | 3758 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | 3SF1, metal enclosures |
| Net Weight (kg) | 0,433 Kg |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| Packaging Dimension | 94,00 x 148,00 x 67,00 |
| Product Description | Basic switch without actuator head Metal enclosure, 56 mm wide ASIsafe integrated AS-i status: 1:F-IN1, 2: F-IN2 3:AS-i/FAULT Slow-action contacts 1 NC with M12 connector 4-pole Channel 1 to NC, Channel 2 to M12 socket on the right |
| Product Lifecycle (PLM) | PM300:Active Product |
| Width sensor (EF007094) | 56.0 |
| Forced opening (EF006694) | true |
| Coating housing (EF001601) | Lacquered |
| Diameter sensor (EF007111) | - |
| Export Control Regulations | AL : N / ECCN : N |
| Height of sensor (EF007283) | 37.8 |
| Length of sensor (EF007334) | 99.7 |
| Material housing (EF001596) | Metal |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Output electronic (EF006987) | FALSE |
| Package size unit of measure | MM |
| Type of interface (EF006977) | None |
| Switching function (EF000189) | Slow-action switch |
| With status indication (EF001602) | true |
| Type of control element (EF006976) | None |
| Construction type housing (EF004008) | Cuboid |
| Degree of protection (IP) (EF005474) | IP66/IP67 |
| Article Number (Market Facing Number) | 3SF1124-1KA00-1BA2 |
| Degree of protection (NEMA) (EF011959) | - |
| Switching function latching (EF007447) | false |
| Type of electric connection (EF003961) | Plug-in connection M12 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Suitable for safety functions (EF001597) | true |
| Alignment of the control element (EF008793) | Roller cam straight |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Number of safety auxiliary contacts (EF006940) | 1 |
| Ambient temperature during operating (EF007515) | ['-25', '60'] |
| Number of contacts as change-over contact (EF008257) | 1 |
| Rated operation current Ie at AC-15, 24 V (EF007084) | - |
| Rated operation current Ie at DC-13, 24 V (EF007087) | - |
| Region Specific PriceGroup / Headquarter Price Group | 42A / 42A |
| Rated operation current Ie at AC-15, 125 V (EF007082) | - |
| Rated operation current Ie at AC-15, 230 V (EF001385) | - |
| Rated operation current Ie at DC-13, 125 V (EF007085) | - |
| Rated operation current Ie at DC-13, 230 V (EF001386) | - |
| Type of interface for safety communication (EF003956) | Other |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 2 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.03.2017 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.4,4'-isopropylidened... CAS-No. 80-05-7 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):4,4'-isopropylidenediphenol (Bisphenol A, BPA)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Imidazolidine-2-thio... CAS-No. 96-45-7 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Imidazolidine-2-thione (2-imidazoline-2-thiol)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Terphenyl hydrogenat... CAS-No. 61788-32-7 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Terphenyl hydrogenatedBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
Product Description
BASIC SWITCH S/CAB. ACTION. METAL BOX,56MM ASISAFE INTEGRATED EST. AS-I:1:F-IN1, 2:F-IN2, 3:AS-I/FAULTSIRIUS Contactor ACC. NORM. 1NC, C/CONECT. M12 4 poles CHANNEL 1 IN NC,CHANNEL 2 IN WITH. HEB. M12
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
