3SE7120-2DD01

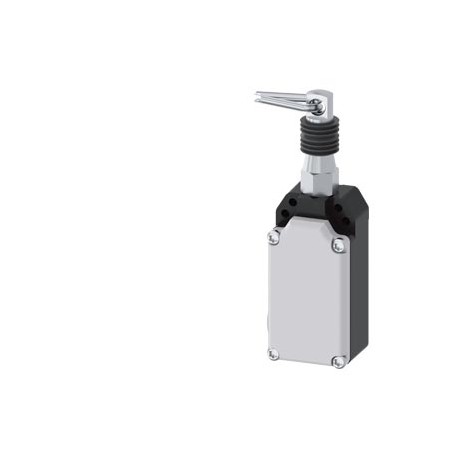

3SE7120-2DD01 SIEMENS Cable-operated switch Metal enclosure, 2x M20 x1.5 1 NO+1 NC, without latching for wir..
$0.00USD
4503 in stock
Key Specifications
:Confirmation
EAN:4011209586529
UPC:754554883052
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209586529 |
| UPC | 754554883052 |
| ETIM | 5 |
| IDEA | 4 |
| color | |
| depth | 43 mm |
| width | 53 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 172 mm |
| ● solid | 2x (0.5 ... 2.5 mm²) |
| Group Code | R711 |
| Metal Factor | None |
| Date5/11/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 3750 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | 3SE7 metal enclosures |
| last modified: | 12/23/2020 |
| Net Weight (kg) | 0,428 Kg |
| thermal current | 6 A |
| cable entry type | 1x M20 x 1,5 |
| fastening method | screw fixing |
| Colour (EF000007) | - |
| Country of origin | Germany |
| Marine / Shipping | other |
| circuit principle | Jump function |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| Packaging Dimension | 80,00 x 185,00 x 70,00 |
| Product Description | cable-operated switch metal enclosure, 2x M20 x1.5; 1 NO+1 NC, without latching, for cable lengths up to 5 m, only Bowden cable function, 55 N spring, maximum actuating force 80 N |
| degree of pollution | class 3 |
| product designation | cable-operated switch |
| protection class IP | IP65 |
| ● of the enclosure | black |
| Product Lifecycle (PLM) | PM300:Active Product |
| material of the contact | Silver |
| ● at 24 V rated value | 3 A |
| ● at AWG cables solid | 2x (20 ... 14) |
| General Product Approval | Declaration of Conformity |
| coating of the enclosure | painted |
| product type designation | 3SE7 |
| ● at 240 V rated value | 6 A |
| ● at 250 V rated value | 0.27 A |
| ● at 400 V rated value | 6 A |
| material of the enclosure | metal |
| Export Control Regulations | AL : N / ECCN : N |
| ● at AWG cables stranded | 2x (20 ... 14) |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| operational current at AC-15 | |
| operational current at DC-13 | |
| Substance Prohibitance (Date) | 07/01/2006 |
| type of electrical connection | screw-type terminals |
| ● of the enclosure top part | grey |
| Ambient temperature (EF002386) | ['-25', '-25'] |
| insulation voltage rated value | 400 V |
| product component light source | No |
| material of the enclosure cover | Plastic |
| product function status display | No |
| With tension indication (EF011945) | true |
| Max. length of pull cord (EF005980) | - |
| Degree of protection (IP) (EF005474) | IP65 |
| ambient temperature during operation | -25 ... +70 °C |
| surge voltage resistance rated value | 6 kV |
| Article Number (Market Facing Number) | 3SE7120-2DD01 |
| Degree of protection (NEMA) (EF011959) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| product component EMERGENCY STOP device | No |
| reference code according to IEC 81346-2 | S |
| product function EMERGENCY STOP function | No |
| Number of actuation directions (EF002425) | - |
| number of switching contacts safety-related | 1 |
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
| type of connectable conductor cross-sections | |
| ● finely stranded with core end processing | 2x (0.5 ... 2.5 mm²) |
| continuous current of the DIAZED fuse link gG | 6 A |
| mechanical service life (switching cycles) typical | 1 000 000 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Region Specific PriceGroup / Headquarter Price Group | 41K / 41K |
| B10 value with high demand rate according to SN 31920 | 100 000 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| proportion of dangerous failures with high demand rate according to SN 31920 | 50 % |
| General Product ApprovalDeclaration of ConformityConfirmationUK Declaration of ConformityMarine / ShippingotherConfirmation | General Product Approval |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
