3SE6605-1BA02

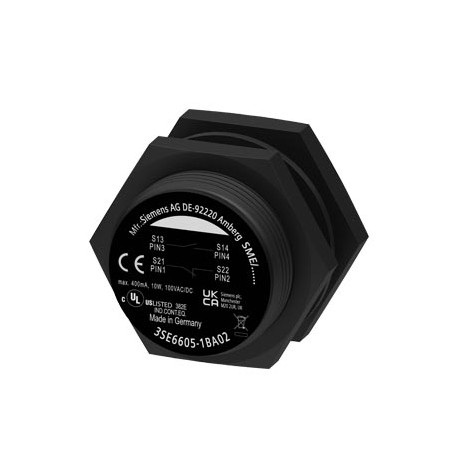

3SE6605-1BA02 SIEMENS Magnet switch Contact block, round M30 Contact elements 1 NC/1 NO with M12 connector 4..
$0.00USD
3801 in stock
Key Specifications
:VersionClassificationeClass627-27-24-02eClass7.127-27-24-02eClass827-27-24-02eClass927-27-24-02eClass9.127-27-24-02ETIM5EC002544ETIM6EC002544ETIM7EC002544ETIM8EC002544IDEA45202UNSPSC1439-12-22-13UNSPSC1539-12-22-13
EAN:4011209642713
UPC:754554921198
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-27-24-02eClass7.127-27-24-02eClass827-27-24-02eClass927-27-24-02eClass9.127-27-24-02ETIM5EC002544ETIM6EC002544ETIM7EC002544ETIM8EC002544IDEA45202UNSPSC1439-12-22-13UNSPSC1539-12-22-13 | |
| EAN | 4011209642713 |
| UPC | 754554921198 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R711 |
| Confirmation | |
| Date5/4/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | None |
| Product Group | 3750 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | SIRIUS 3SE66, 3SE67 non-contact safety switches, magnet |
| last modified: | 10/6/2021 |
| Net Weight (kg) | 0,040 Kg |
| product feature | M30 |
| type of voltage | AC/DC |
| fastening method | screw fixing |
| product function | |
| Country of origin | Germany |
| circuit principle | reed switches |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| Packaging Dimension | 90,00 x 130,00 x 30,00 |
| Product Description | magnetically-operated switch contact block, round M30 contacts 1 NC/1 NO with M12 plug 4-pole Pin1=21, Pin2=22 Pin3=13, Pin4=14. Required solenoid 3SE6704-1BA. coupling with connection cable 5 m 3SX5601-3SB54 |
| product designation | Magnetically operated switch |
| protection class IP | IP67 |
| switching frequency | 5 Hz |
| length of the sensor | 48 mm |
| ● positive opening | No |
| design of the housing | cylinder, thread |
| design of the product | Round sensor unit |
| diameter of the sensor | 30 mm |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | AC/DC |
| Width sensor (EF007094) | - |
| General Product Approval | EMC |
| evaluation unit required | yes |
| product type designation | 3SE66 |
| Declaration of Conformity | other |
| material of the enclosure | plastic |
| Coating housing (EF001601) | - |
| Diameter sensor (EF007111) | 30.0 |
| Export Control Regulations | AL : N / ECCN : N |
| Height of sensor (EF007283) | - |
| Length of sensor (EF007334) | 48.0 |
| Material housing (EF001596) | Plastic |
| Standard lead time ex-works | 60 Day/Days |
| Surcharge for Raw Materials | None |
| operating power rated value | 10 W |
| Package size unit of measure | MM |
| Type of actuation (EF006949) | Magnet |
| UK Declaration of Conformity | |
| Substance Prohibitance (Date) | 07/01/2006 |
| Switching distance (EF003647) | - |
| assured operating distance ON | 5 mm |
| operating voltage rated value | 100 V |
| type of electrical connection | M8 connector, 4-pole |
| Ambient temperature (EF002386) | ['-25', '70'] |
| Min. output current (EF004045) | - |
| assured operating distance OFF | 15 mm |
| category according to EN 954-1 | 4 |
| design of the actuating element | magnet |
| operational current rated value | 400 mA |
| design of the switching function | NC contact and NO contact |
| With status indication (EF001602) | - |
| material of the active sensor area | plastic |
| Type of switching output (EF003962) | - |
| Construction type housing (EF004008) | Cylinder, screw-thread |
| Degree of protection (IP) (EF005474) | IP67 |
| ambient temperature during operation | -25 ... +70 °C |
| Article Number (Market Facing Number) | 3SE6605-1BA02 |
| Rated supply voltage at DC (EF007078) | ['-', 'AC/DC'] |
| SIL according to IEC 61508 (EF009889) | 3 |
| Degree of protection (NEMA) (EF011959) | - |
| Type of electric connection (EF003961) | Connector M8 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Protected switch distance ON (EF004012) | 5.0 |
| reference code according to IEC 81346-2 | S |
| Protected switch distance OFF (EF004011) | 15.0 |
| Suitable for safety functions (EF001597) | true |
| type of voltage of the operating voltage | AC/DC |
| Category according to EN 954-1 (EF006782) | 4 |
| Rated supply voltage at AC 50 Hz (EF007076) | ['-', 'AC/DC'] |
| Rated supply voltage at AC 60 Hz (EF007077) | ['-', 'AC/DC'] |
| suitability for use safety-related circuits | Yes |
| ● cross-circuit/short-circuit recognition | Yes |
| Explosion safety category for gas (EF003997) | None |
| mechanical installation condition for sensor | no flush installation possible |
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
| shock resistance according to IEC 60068-2-27 | Sinusoidal half-wave 30g / 11 ms |
| Explosion safety category for dust (EF003998) | None |
| vibration resistance according to IEC 60068-2-6 | 10 ... 55 Hz: 1 mm |
| Max. output current at protected output (EF004035) | - |
| performance level (PL) according to EN ISO 13849-1 | e |
| Mechanical mounting condition for sensor (EF004041) | Not flat |
| Safety Integrity Level (SIL) according to IEC 61508 | 3 |
| Number of protected semiconductor outputs (EF003951) | - |
| Region Specific PriceGroup / Headquarter Price Group | 41K / 41K |
| Type of interface for safety communication (EF003956) | - |
| Cross-/short circuit identification possible (EF004093) | true |
| Number of protected contact energized outputs (EF003952) | - |
| Performance level according to EN ISO 13849-1 (EF007399) | Level e |
| With monitoring function downstream switching devices (EF004052) | - |
| Number of semiconductor outputs with signalling function (EF003945) | - |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| Number of contact energized outputs with signalling function (EF003946) | - |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| General Product ApprovalEMCFunctional Safety/Safety of MachineryConfirmationMiscellaneousDeclaration of ConformityotherUK Declaration of ConformityConfirmation | General Product Approval |
Product Description
MAGNETIC SWITCH BLOCK DESIRIUS ContactorsS, NETWORK. M30,SIRIUS ContactorS 1NC/1NA, WITH M12 4-pole CONNECTOR, PINE:PIN1=21,PIN2=22, PIN3=13,PIN4=14
