3SE6315-1BB02

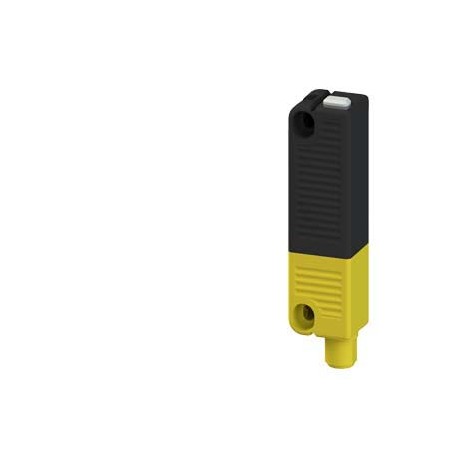

3SE6315-1BB02 SIEMENS Contact-free safety switches RFID Rectangular 106 mm x 25 mm Individually coded, multi..
$0.00USD
3381 in stock
Key Specifications
:Confirmation
EAN:4011209900721
UPC:040892854190
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209900721 |
| UPC | 040892854190 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R711 |
| Confirmation | |
| Metal Factor | None |
| Date5/14/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 3750 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | SIRIUS 3SE63 non-contact safety switches, RFID |
| last modified: | 10/6/2021 |
| output current | 0.5 A |
| supply voltage | 26.4 ... 20.4 V |
| Net Weight (kg) | 0,110 Kg |
| product feature | individually coded, learnable multiple times, with magnet latching |
| type of voltage | DC |
| fastening method | screw fixing |
| product function | |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| operating distance | 12 mm |
| product brand name | SIRIUS |
| ● safety-related | 1 |
| Packaging Dimension | 100,00 x 120,00 x 30,00 |
| Product Description | Contact-free safety switches RFID Rectangular 106 mm x 25 mm Individually coded, multiple teach-in capability, with M12 connector 8-pole and magnet latching 18 N. Order actuator separately: 3SE6310-1BC01 |
| product designation | RFID safety switch |
| protection class IP | IP65, IP67, IP69k |
| switching frequency | 1 Hz |
| width of the sensor | 25 mm |
| wire length maximum | 30 m |
| height of the sensor | 22 mm |
| length of the sensor | 106 mm |
| ● positive opening | No |
| design of the product | Rectangular sensor unit |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | DC |
| Width sensor (EF007094) | 25.0 |
| General Product Approval | EMC |
| evaluation unit required | yes |
| material of cable sheath | PVC |
| product type designation | 3SE63 |
| Declaration of Conformity | other |
| material of the enclosure | plastic |
| Coating housing (EF001601) | - |
| Diameter sensor (EF007111) | - |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Height of sensor (EF007283) | 22.0 |
| Length of sensor (EF007334) | 106.0 |
| Material housing (EF001596) | Plastic |
| Standard lead time ex-works | 200 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Type of actuation (EF006949) | Transponder |
| Substance Prohibitance (Date) | 07/01/2006 |
| Switching distance (EF003647) | 12.0 |
| assured operating distance ON | 10 mm |
| operating voltage rated value | 24 V |
| type of electrical connection | M12 plug, 8-pole |
| Ambient temperature (EF002386) | ['-25', '70'] |
| Min. output current (EF004045) | 500.0 |
| assured operating distance OFF | 16 mm |
| category according to EN 954-1 | 4 |
| design of the actuating element | RFID |
| operational current rated value | 600 mA |
| design of the switching function | positive switching |
| With status indication (EF001602) | - |
| material of the active sensor area | plastic |
| transmission frequency rated value | 125 kHz |
| Type of switching output (EF003962) | - |
| Construction type housing (EF004008) | - |
| Degree of protection (IP) (EF005474) | Other |
| ambient temperature during operation | -25 ... +70 °C |
| Article Number (Market Facing Number) | 3SE6315-1BB02 |
| Rated supply voltage at DC (EF007078) | ['20.4', '26.4'] |
| SIL according to IEC 61508 (EF009889) | 3 |
| Degree of protection (NEMA) (EF011959) | - |
| Type of electric connection (EF003961) | Connector M12 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Protected switch distance ON (EF004012) | 10.0 |
| Protected switch distance OFF (EF004011) | 16.0 |
| Suitable for safety functions (EF001597) | true |
| type of voltage of the operating voltage | DC |
| Category according to EN 954-1 (EF006782) | 4 |
| Rated supply voltage at AC 50 Hz (EF007076) | ['20.4', '26.4'] |
| Rated supply voltage at AC 60 Hz (EF007077) | ['20.4', '26.4'] |
| suitability for use safety-related circuits | Yes |
| ● cross-circuit/short-circuit recognition | Yes |
| Explosion safety category for gas (EF003997) | None |
| mechanical installation condition for sensor | flush installation possible |
| shock resistance according to IEC 60068-2-27 | Sinusoidal half-wave 30g / 11 ms |
| Explosion safety category for dust (EF003998) | None |
| output current at safety-related output maximum | 0.25 A |
| vibration resistance according to IEC 60068-2-6 | 10 ... 55 Hz: 1 mm |
| Max. output current at protected output (EF004035) | 250.0 |
| performance level (PL) according to EN ISO 13849-1 | e |
| Mechanical mounting condition for sensor (EF004041) | Concise |
| Safety Integrity Level (SIL) according to IEC 61508 | 3 |
| number of switching contacts for signaling function | |
| Number of protected semiconductor outputs (EF003951) | - |
| Region Specific PriceGroup / Headquarter Price Group | 41K / 41K |
| Type of interface for safety communication (EF003956) | Other |
| Cross-/short circuit identification possible (EF004093) | true |
| Number of protected contact energized outputs (EF003952) | 1 |
| Performance level according to EN ISO 13849-1 (EF007399) | Level e |
| design of the interface for safety-related communication | connector M12 |
| With monitoring function downstream switching devices (EF004052) | - |
| Number of semiconductor outputs with signalling function (EF003945) | - |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| Number of contact energized outputs with signalling function (EF003946) | - |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| General Product ApprovalEMCFunctional Safety/Safety of MachineryConfirmationType Examination CertificateDeclaration of ConformityotherDangerous GoodConfirmationTransport Information | General Product Approval |
