3SE5312-1SE11

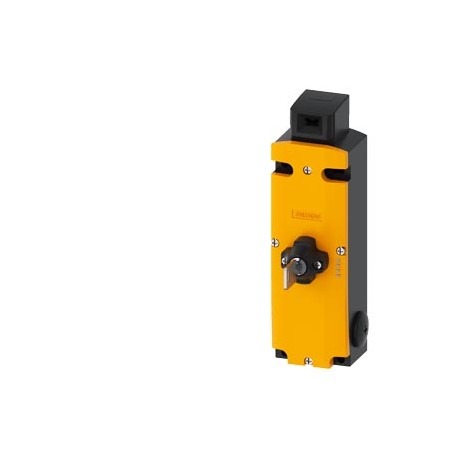

3SE5312-1SE11 SIEMENS Safety position switch with tumbler Locking force 2600 N 5 directions of approaches Sp..
$0.00USD
4939 in stock
Key Specifications
:VersionClassificationeClass627-27-06-11eClass7.127-27-06-11eClass827-27-06-11eClass927-27-06-11eClass9.127-27-06-11ETIM5EC002593ETIM6EC002593ETIM7EC002593ETIM8EC002593IDEA45202UNSPSC1439-12-22-13UNSPSC1539-12-22-13
EAN:4011209683099
UPC:754554951645
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-27-06-11eClass7.127-27-06-11eClass827-27-06-11eClass927-27-06-11eClass9.127-27-06-11ETIM5EC002593ETIM6EC002593ETIM7EC002593ETIM8EC002593IDEA45202UNSPSC1439-12-22-13UNSPSC1539-12-22-13 | |
| EAN | 4011209683099 |
| UPC | 754554951645 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R711 |
| Metal Factor | None |
| Product Group | 5317 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365019 |
| Product family | 3SE5, metal enclosures with locking force greater than 2 000 N |
| Net Weight (kg) | 1,260 Kg |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| Packaging Dimension | 151,00 x 251,50 x 68,50 |
| Product Description | Safety position switch with tumbler Locking force 2600 N 5 directions of approaches Spring-locked Auxiliary release with lock Magnet voltage 24 V DC Monitoring actuator 2 NC/1 NO Monitoring magnet 2 NC/1 NO LED display yellow/green Supplied without actuator. Actuator 3SE5000-0AV0. please order separately |
| Product Lifecycle (PLM) | PM300:Active Product |
| Width sensor (EF007094) | 54.0 |
| Coating housing (EF001601) | Lacquered |
| Export Control Regulations | AL : N / ECCN : N |
| Height of sensor (EF007283) | 43.5 |
| Length of sensor (EF007334) | 185.0 |
| Material housing (EF001596) | Metal |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Type of interface (EF006977) | None |
| Guard locking force (EF007552) | 2600 |
| With escape release (EF007172) | false |
| Type of guard locking (EF012608) | Quiescent current principle |
| With auxiliary release (EF011964) | - |
| With status indication (EF001602) | true |
| Construction type housing (EF004008) | Special construction |
| Degree of protection (IP) (EF005474) | IP66/IP67 |
| Type of switching contact (EF003591) | Slow-action switch |
| Article Number (Market Facing Number) | 3SE5312-1SE11 |
| Degree of protection (NEMA) (EF011959) | - |
| Type of electric connection (EF003961) | Cable entry metrical |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Suitable for safety functions (EF001597) | true |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Number of safety auxiliary contacts (EF006940) | 4 |
| Ambient temperature during operating (EF007515) | ['-25', '60'] |
| Number of contacts as change-over contact (EF008257) | 2 |
| Rated operation current Ie at AC-15, 24 V (EF007084) | 6 |
| Rated operation current Ie at DC-13, 24 V (EF007087) | 3 |
| Region Specific PriceGroup / Headquarter Price Group | 41K / 41K |
| Rated operation current Ie at AC-15, 125 V (EF007082) | - |
| Rated operation current Ie at AC-15, 230 V (EF001385) | - |
| Rated operation current Ie at DC-13, 125 V (EF007085) | 0.55 |
| Rated operation current Ie at DC-13, 230 V (EF001386) | - |
| Type of interface for safety communication (EF003956) | None |
| Number of contacts as normally open contact (EF008256) | - |
| Number of contacts as normally closed contact (EF008255) | - |
| Rated control supply voltage Us magnet drive at DC (EF007070) | ['24', '24'] |
| Rated control supply voltage Us magnet drive at AC 50 Hz (EF007068) | ['-', '-'] |
| Rated control supply voltage Us magnet drive at AC 60 Hz (EF007069) | ['-', '-'] |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2011 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
Product Description
SIRIUS Int. of position, with retention 2600N,5 sent. attack, metal case,3X(M20X1,5), spring interlock, unlock. Aux. by lock, electromagnet voltage 24V DC, actuator surveillance 2NC/1NA, vig. electrom
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
