3SE5250-0KC05

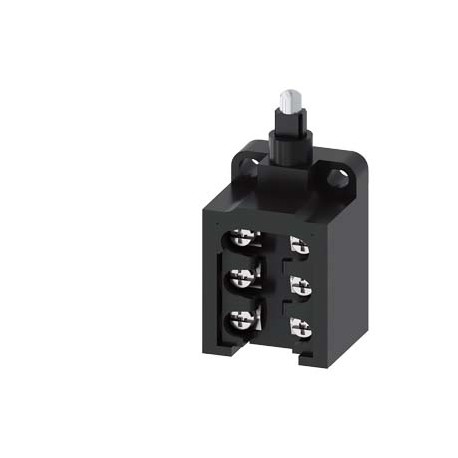

3SE5250-0KC05 SIEMENS Position switch Plastic enclosure open type 30 mm 1 NO/2 NC slow-action contacts Metal..
$0.00USD
3467 in stock
Key Specifications
:Confirmation
EAN:4011209695191
UPC:754554955926
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209695191 |
| UPC | 754554955926 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 14 |
| eClass | 6 |
| ● note | 1000000 at 30° angle of approach |
| ● solid | 1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²) |
| Group Code | R711 |
| Metal Factor | LAO----- |
| Date5/14/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5317 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Enclosure width 30 mm |
| last modified: | 12/21/2020 |
| Net Weight (kg) | 0,045 Kg |
| repeat accuracy | 0.05 mm |
| thermal current | 10 A |
| active principle | mechanical |
| fastening method | screw fixing |
| shock resistance | |
| Country of origin | Germany |
| circuit principle | slow-action contacts |
| mounting position | any |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● during storage | -40 ... +90 °C |
| Packaging Dimension | 45,00 x 42,00 x 97,00 |
| Product Description | Position switch Plastic enclosure open type 30 mm 1 NO/2 NC slow-action contacts Metal plunger, IP10 |
| ambient temperature | |
| degree of pollution | class 3 |
| product designation | Open-type position switches |
| protection class IP | IP10 |
| width of the sensor | 30 mm |
| length of the sensor | 59.2 mm |
| vibration resistance | |
| ● during operation | -25 ... +85 °C |
| Product Lifecycle (PLM) | PM300:Active Product |
| Width sensor (EF007094) | 30.0 |
| design of the interface | without |
| ● at 24 V rated value | 6 A |
| ● at AWG cables solid | 1x (20 ... 16), 2x (20 ... 18) |
| General Product Approval | Functional Safety/Safety of Machinery |
| coating of the enclosure | Other types |
| product type designation | 3SE5 |
| shape of the switch head | rounded |
| ● at 120 V rated value | 6 A |
| ● at 125 V rated value | 0.55 A |
| ● at 240 V rated value | 6 A |
| ● at 250 V rated value | 0.27 A |
| ● at 400 V rated value | 4 A |
| Forced opening (EF006694) | true |
| material of the enclosure | plastic, open-type |
| Coating housing (EF001601) | Other |
| Diameter sensor (EF007111) | - |
| Export Control Regulations | AL : N / ECCN : N |
| ● at AWG cables stranded | 1x (20 ... 16), 2x (20 ... 18) |
| Height of sensor (EF007283) | 27.0 |
| Length of sensor (EF007334) | 59.2 |
| Material housing (EF001596) | Plastic |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| Output electronic (EF006987) | FALSE |
| Package size unit of measure | MM |
| Type of interface (EF006977) | None |
| operational current at AC-15 | |
| operational current at DC-13 | |
| Substance Prohibitance (Date) | 07/01/2006 |
| Switching function (EF000189) | Slow-action switch |
| manufacturer's article number | |
| type of electrical connection | screw-type terminals |
| insulation voltage rated value | 400 V |
| ● according to IEC 60068-2-6 | 0.35 mm/5g |
| design of the actuating element | Rounded plunger, metal plunger |
| design of the switching contact | mechanical |
| operating frequency rated value | 50 ... 60 Hz |
| ● according to IEC 60068-2-27 | 30g / 11 ms |
| design of the switching function | positive opening |
| standard-compliant actuator head | EN 50047, design B |
| With status indication (EF001602) | false |
| product function positive opening | Yes |
| suitability for use safety switch | Yes |
| Type of control element (EF006976) | Plunger |
| Construction type housing (EF004008) | - |
| Degree of protection (IP) (EF005474) | IP10 |
| surge voltage resistance rated value | 6 kV |
| Article Number (Market Facing Number) | 3SE5250-0KC05 |
| Degree of protection (NEMA) (EF011959) | - |
| Switching function latching (EF007447) | false |
| Type of electric connection (EF003961) | Cable entry metrical |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| explosion protection category for dust | none |
| ● of the supplied switching contacts | 3SE5000-0KA00 |
| reference code according to IEC 81346-2 | B |
| Suitable for safety functions (EF001597) | true |
| Alignment of the control element (EF008793) | Roller cam straight |
| design of the housing according to standard | No |
| number of switching contacts safety-related | 2 |
| Explosion safety category for gas (EF003997) | None |
| material of the enclosure of the switch head | plastic |
| number of NC contacts for auxiliary contacts | 2 |
| number of NO contacts for auxiliary contacts | 1 |
| type of connectable conductor cross-sections | |
| ● finely stranded with core end processing | 1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²) |
| Explosion safety category for dust (EF003998) | None |
| continuous current of the DIAZED fuse link gG | 6 A |
| Number of safety auxiliary contacts (EF006940) | 2 |
| continuous current of the C characteristic MCB | 1 A; for a short-circuit current smaller than 400 A |
| Ambient temperature during operating (EF007515) | ['-25', '85'] |
| continuous current of the quick DIAZED fuse link | 10 A; for a short-circuit current smaller than 400 A |
| mechanical service life (switching cycles) typical | 15 000 000 |
| minimum actuating force in directions of actuation | 20 N |
| Number of contacts as change-over contact (EF008257) | 1 |
| Rated operation current Ie at AC-15, 24 V (EF007084) | 6 |
| Rated operation current Ie at DC-13, 24 V (EF007087) | 3 |
| Region Specific PriceGroup / Headquarter Price Group | 41K / 41K |
| Rated operation current Ie at AC-15, 125 V (EF007082) | - |
| Rated operation current Ie at AC-15, 230 V (EF001385) | - |
| Rated operation current Ie at DC-13, 125 V (EF007085) | 0.55 |
| Rated operation current Ie at DC-13, 230 V (EF001386) | - |
| Type of interface for safety communication (EF003956) | None |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 2 |
| design of the interface for safety-related communication | without |
| electrical endurance (switching cycles) at AC-15 at 230 V typical | 100 000 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Electrical operating cycles in one hour with contactor 3RH11, 3RT1016, 3RT1017, 3RT1024, 3RT1025, 3RT1026 | 6 000 |
| electrical endurance (switching cycles) with contactor 3RH11, 3RT1016, 3RT1017, 3RT1024, 3RT1025, 3RT1026 typical | 10 000 000 |
| General Product ApprovalConfirmationKCGeneral Product ApprovalFunctional Safety/Safety of MachineryDeclaration of ConformityTest CertificatesotherType Examination CertificateUK Declaration of ConformityType Test Certificates/Test ReportConfirmation | General Product Approval |
