3SE5214-1CC05-1AF3

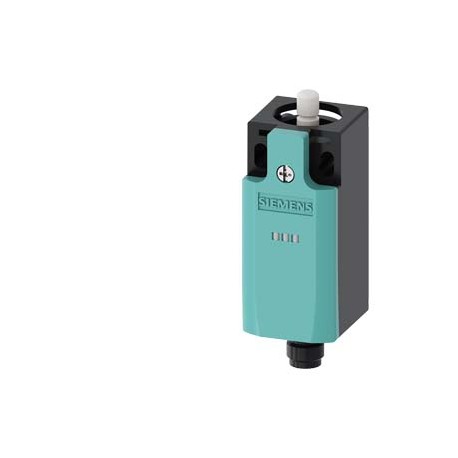

3SE5214-1CC05-1AF3 SIEMENS Position switch Metal enclosure 31 mm according to EN 50047 1 NO/1 NC quick actio..
$0.00USD
4225 in stock
Key Specifications
:
EAN:4011209862760
UPC:662643931082
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209862760 |
| UPC | 662643931082 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R711 |
| ● of LED | 24 V |
| Metal Factor | LA------ |
| Date5/12/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5317 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Enclosure width 31 mm acc. to EN 50047 |
| last modified: | 3/23/2022 |
| supply voltage | |
| Net Weight (kg) | 0,190 Kg |
| repeat accuracy | 0.05 mm |
| thermal current | 4 A |
| active principle | mechanical |
| cable entry type | 1x (M20 x 1.5) |
| fastening method | screw fixing |
| shock resistance | |
| Country of origin | Germany |
| circuit principle | snap-action contacts |
| mounting position | any |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● during storage | -40 ... +90 °C |
| Packaging Dimension | 45,00 x 42,00 x 97,00 |
| Product Description | Position switch Metal enclosure 31 mm according to EN 50047 1 NO/1 NC quick action contacts with M12 connector, 5-pole, fixed with 2 LEDs, yellow/green, 24 V DC with plunger Pin assignment: Pin 1=21, Pin 2=22 Pin 3=13 + LED green, Pin 4=14 and LED yellow, Pin 5=ground LED |
| ambient temperature | |
| degree of pollution | class 3 |
| product designation | Mechanical position switches |
| protection class IP | IP66/IP67 |
| width of the sensor | 31 mm |
| length of the sensor | 75.7 mm |
| vibration resistance | |
| ● during operation | -25 ... +60 °C |
| design of the housing | block, narrow |
| Product Lifecycle (PLM) | PM300:Active Product |
| Width sensor (EF007094) | 31.0 |
| design of the interface | without |
| ● at 24 V rated value | 3 A |
| coating of the enclosure | cathodic dip coating |
| product type designation | 3SE5 |
| shape of the switch head | rounded |
| Forced opening (EF006694) | true |
| material of the enclosure | metal |
| Coating housing (EF001601) | Lacquered |
| Diameter sensor (EF007111) | - |
| Export Control Regulations | AL : N / ECCN : N |
| Height of sensor (EF007283) | 33.0 |
| Length of sensor (EF007334) | 75.7 |
| Material housing (EF001596) | Metal |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| Output electronic (EF006987) | FALSE |
| Package size unit of measure | MM |
| Type Examination Certificate | UK Declaration of Conformity |
| Type of interface (EF006977) | None |
| design of plug-in connection | M12 plug, 5-pole: Pin 1 = terminal 21, Pin 2 = 22, Pin 3 = 13, Pin 4 = 14, Pin 5 = ground LED |
| operational current at DC-13 | |
| Substance Prohibitance (Date) | 07/01/2006 |
| Switching function (EF000189) | Quick-break switch |
| manufacturer's article number | |
| type of electrical connection | M12 plug, fixed |
| insulation voltage rated value | 125 V |
| ● according to IEC 60068-2-6 | 0.35 mm/5g |
| design of the actuating element | Rounded plunger, plastic plunger |
| design of the switching contact | mechanical |
| operating frequency rated value | 50 ... 60 Hz |
| ● according to IEC 60068-2-27 | 30g / 11 ms |
| design of the switching function | positive opening |
| standard-compliant actuator head | EN 50047, design B |
| With status indication (EF001602) | true |
| product function positive opening | Yes |
| suitability for use safety switch | Yes |
| Type of control element (EF006976) | Plunger |
| operating resource protection class | III (according to EN 60536) |
| Construction type housing (EF004008) | Cuboid |
| Degree of protection (IP) (EF005474) | IP66/IP67 |
| surge voltage resistance rated value | 1 kV |
| Article Number (Market Facing Number) | 3SE5214-1CC05-1AF3 |
| Functional Safety/Safety of Machinery | Declaration of Conformity |
| Degree of protection (NEMA) (EF011959) | - |
| Switching function latching (EF007447) | false |
| Type of electric connection (EF003961) | Plug-in connection M12 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| explosion protection category for dust | none |
| ● of the supplied switching contacts | 3SE5000-0CA00 |
| reference code according to IEC 81346-2 | B |
| Suitable for safety functions (EF001597) | true |
| Alignment of the control element (EF008793) | Roller cam straight |
| design of the housing according to standard | Yes |
| number of switching contacts safety-related | 1 |
| Explosion safety category for gas (EF003997) | None |
| material of the enclosure of the switch head | metal |
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
| Explosion safety category for dust (EF003998) | None |
| continuous current of the DIAZED fuse link gG | 4 A |
| Number of safety auxiliary contacts (EF006940) | 1 |
| continuous current of the C characteristic MCB | 1 A; for a short-circuit current smaller than 400 A |
| Ambient temperature during operating (EF007515) | ['-25', '60'] |
| continuous current of the quick DIAZED fuse link | 4 A; for a short-circuit current smaller than 400 A |
| mechanical service life (switching cycles) typical | 15 000 000 |
| minimum actuating force in directions of actuation | 20 N |
| Number of contacts as change-over contact (EF008257) | 1 |
| Rated operation current Ie at AC-15, 24 V (EF007084) | - |
| Rated operation current Ie at DC-13, 24 V (EF007087) | 3 |
| Region Specific PriceGroup / Headquarter Price Group | 41K / 41K |
| Rated operation current Ie at AC-15, 125 V (EF007082) | - |
| Rated operation current Ie at AC-15, 230 V (EF001385) | - |
| Rated operation current Ie at DC-13, 125 V (EF007085) | - |
| Rated operation current Ie at DC-13, 230 V (EF001386) | - |
| Type of interface for safety communication (EF003956) | None |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 1 |
| design of the interface for safety-related communication | without |
| electrical endurance (switching cycles) at AC-15 at 230 V typical | 100 000 |
| type of voltage of the supply voltage of the optional LED display | DC |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Imidazolidine-2-thio... CAS-No. 96-45-7 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Imidazolidine-2-thione (2-imidazoline-2-thiol)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| Electrical operating cycles in one hour with contactor 3RH11, 3RT1016, 3RT1017, 3RT1024, 3RT1025, 3RT1026 | 6 000 |
| General Product ApprovalConfirmationFunctional Safety/Safety of MachineryDeclaration of ConformityTest CertificatesotherType Examination CertificateUK Declaration of ConformityType Test Certificates/Test ReportType Test Certificates/Test ReportConfirmation | General Product Approval |
