3SE5162-0AA00

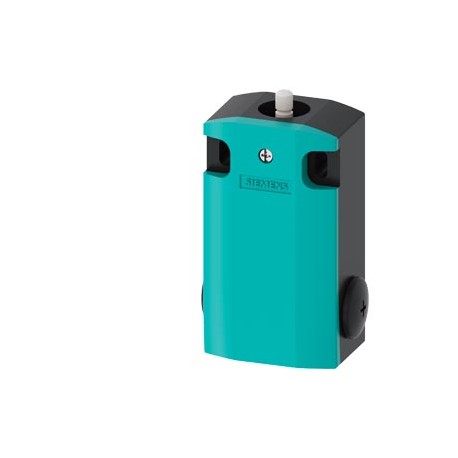

3SE5162-0AA00 SIEMENS Empty enclosure for position switch 3SE5162 Metal enclosure XL, 56 mm wide Device conn..
$0.00USD
4670 in stock
Key Specifications
:Confirmation
EAN:4011209862821
UPC:662643931211
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209862821 |
| UPC | 662643931211 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R711 |
| Date5/5/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LA------ |
| Product Group | 5317 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Accessories and spare parts |
| last modified: | 1/26/2022 |
| Net Weight (kg) | 0,407 Kg |
| cable entry type | 3x (M20 x 1.5) |
| fastening method | screw fixing |
| shock resistance | |
| Country of origin | Germany |
| mounting position | any |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| ● during storage | -40 ... +90 °C |
| Packaging Dimension | 56,00 x 166,50 x 77,50 |
| Product Description | Empty enclosure for position switch 3SE5162 Metal enclosure XL, 56 mm wide Device connection 3x(M20 x 1.5) IP66/IP67 without actuator head |
| ambient temperature | |
| degree of pollution | class 3 |
| product designation | enclosure EN50041 long for standard position switch + turquoise cover |
| protection class IP | IP66/IP67 |
| width of the sensor | 56 mm |
| length of the sensor | 100 mm |
| ● during operation | -25 ... +85 °C |
| design of the housing | block, wide |
| Product Lifecycle (PLM) | PM300:Active Product |
| design of the interface | without |
| coating of the enclosure | cathodic dip coating |
| material of the enclosure | metal |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Type Examination Certificate | |
| Substance Prohibitance (Date) | 07/01/2006 |
| insulation voltage rated value | 400 V |
| design of the actuating element | Other, without, empty enclosure |
| ● according to IEC 60068-2-27 | 30g / 11 ms |
| Article Number (Market Facing Number) | 3SE5162-0AA00 |
| Functional Safety/Safety of Machinery | Declaration of Conformity |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| explosion protection category for dust | none |
| Type of accessory/spare part (EF000215) | - |
| reference code according to IEC 81346-2 | U |
| design of the housing according to standard | No |
| vibration resistance according to IEC 60068-2-6 | 0.35 mm/5g |
| Region Specific PriceGroup / Headquarter Price Group | 41K / 41K |
| design of the interface for safety-related communication | without |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Imidazolidine-2-thio... CAS-No. 96-45-7 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Imidazolidine-2-thione (2-imidazoline-2-thiol)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| General Product ApprovalConfirmationFunctional Safety/Safety of MachineryDeclaration of ConformityTest CertificatesotherType Examination CertificateUK Declaration of ConformityType Test Certificates/Test ReportConfirmation | General Product Approval |
Product Description
EMPTY ENCLOSURE FOR POSITION SWITCH 3SE5162, METAL ENCLOSURE XL,56MM WIDE DEVICE CONNECTION 3X(M20X1.5), IP66/IP67 WITHOUT ACTUATOR HEAD. Manufactured to order. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
