In Stock Hot Product
3SE5132-0AA00

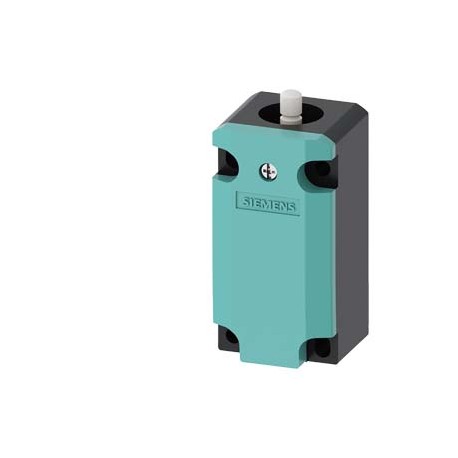

3SE5132-0AA00 SIEMENS Empty enclosure, plastic according to EN 50041, with cover Color turquoise Device conn..
$0.00USD
4961 in stock
Key Specifications
:
EAN:4011209866683
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209866683 |
| UPC | Not available |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | R711 |
| Date5/8/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LA------ |
| Product Group | 5317 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | Accessories and spare parts |
| last modified: | 12/21/2020 |
| Net Weight (kg) | 0,075 Kg |
| cable entry type | 1x (M20 x 1.5) |
| fastening method | screw fixing |
| shock resistance | |
| Country of origin | Germany |
| mounting position | any |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| ● during storage | -40 ... +90 °C |
| Packaging Dimension | 45,00 x 42,00 x 97,00 |
| Product Description | Empty enclosure, plastic according to EN 50041, with cover Color turquoise Device connection 1 x M20 x 1.5 |
| ambient temperature | |
| degree of pollution | class 3 |
| product designation | enclosure EN 50041 for standard position switch, cover turquoise |
| protection class IP | IP66/IP67 |
| width of the sensor | 40 mm |
| length of the sensor | 85.7 mm |
| ● during operation | -25 ... +85 °C |
| design of the housing | block, narrow |
| Product Lifecycle (PLM) | PM300:Active Product |
| design of the interface | without |
| coating of the enclosure | Other types |
| material of the enclosure | plastic |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Type Examination Certificate | |
| Substance Prohibitance (Date) | 07/01/2006 |
| design of the actuating element | Other, without, empty enclosure |
| ● according to IEC 60068-2-27 | 30g / 11 ms |
| Article Number (Market Facing Number) | 3SE5132-0AA00 |
| Functional Safety/Safety of Machinery | Declaration of Conformity |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| explosion protection category for dust | none |
| Type of accessory/spare part (EF000215) | - |
| reference code according to IEC 81346-2 | U |
| design of the housing according to standard | Yes |
| vibration resistance according to IEC 60068-2-6 | 0.35 mm/5g |
| Region Specific PriceGroup / Headquarter Price Group | 41K / 41K |
| design of the interface for safety-related communication | without |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Imidazolidine-2-thio... CAS-No. 96-45-7 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Imidazolidine-2-thione (2-imidazoline-2-thiol)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| General Product ApprovalConfirmationFunctional Safety/Safety of MachineryDeclaration of ConformityotherType Examination CertificateUK Declaration of ConformityConfirmation | General Product Approval |
Product Description
EMPTY BOX, PLASTIC ACCORDING TO EN50041, WITH TURQUOISE LID; 1X(M20X1,5). Manufactured to order. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
