3SE5120-3AA00

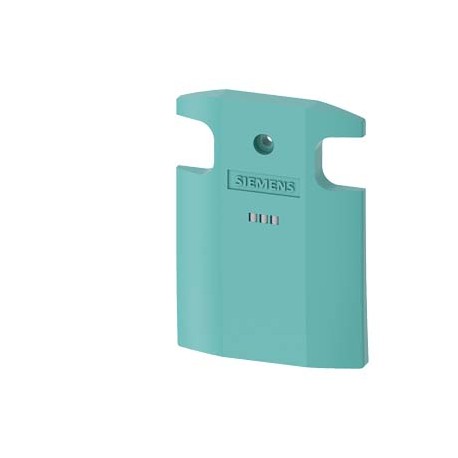

3SE5120-3AA00 SIEMENS LED cover for position switch Metal 3SE51 2 LEDs, yellow/green, 110-230 V AC Color tur..
$0.00USD
4904 in stock
Key Specifications
:
EAN:4011209692978
UPC:754554954530
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209692978 |
| UPC | 754554954530 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R711 |
| ● of LED | 230 V |
| Date5/8/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LA------ |
| Product Group | 5317 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Accessories and spare parts |
| last modified: | 1/26/2022 |
| supply voltage | |
| Net Weight (kg) | 0,080 Kg |
| fastening method | screw fixing |
| shock resistance | |
| Country of origin | Germany |
| mounting position | any |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| ● during storage | -40 ... +90 °C |
| Packaging Dimension | 85,00 x 85,00 x 22,00 |
| Product Description | LED cover for position switch Metal 3SE51 2 LEDs, yellow/green, 110-230 V AC Color turquoise |
| ambient temperature | |
| degree of pollution | class 3 |
| product designation | cover with LED 230 V AC, for wide enclosures for position switch, metal, turquoise |
| protection class IP | IP66/IP67 |
| width of the sensor | 56 mm |
| length of the sensor | 78 mm |
| ● during operation | -25 ... +60 °C |
| design of the housing | block, wide |
| Product Lifecycle (PLM) | PM300:Active Product |
| design of the interface | without |
| coating of the enclosure | cathodic dip coating |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Type Examination Certificate | UK Declaration of Conformity |
| Substance Prohibitance (Date) | 07/01/2006 |
| design of the actuating element | Other, without, cover |
| ● according to IEC 60068-2-27 | 30g / 11 ms |
| Article Number (Market Facing Number) | 3SE5120-3AA00 |
| Functional Safety/Safety of Machinery | Declaration of Conformity |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| explosion protection category for dust | none |
| Type of accessory/spare part (EF000215) | - |
| vibration resistance according to IEC 60068-2-6 | 0.35 mm/5g |
| Region Specific PriceGroup / Headquarter Price Group | 41K / 41K |
| design of the interface for safety-related communication | without |
| type of voltage of the supply voltage of the optional LED display | AC |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalConfirmationFunctional Safety/Safety of MachineryDeclaration of ConformityTest CertificatesotherType Examination CertificateUK Declaration of ConformityType Test Certificates/Test ReportConfirmation | General Product Approval |
Product Description
SIRIUS Int. position, accessory 3SE51, turquoise lid w/led 230V AC, box 56mm. Manufactured to order. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
