3SE5115-1CA00-1AF2

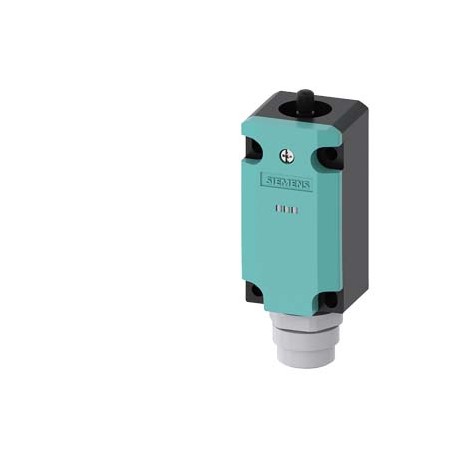

3SE5115-1CA00-1AF2 SIEMENS Basic switch for position switch 3SE51 Metal enclosure 40 mm according to EN 5004..
$0.00USD
3041 in stock
Key Specifications
:Value
EAN:4011209692923
UPC:754554954479
Group Code:R711
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209692923 |
| UPC | 754554954479 |
| Group Code | R711 |
| ● of LED | 24 V |
| Price Group | 41K |
| ● typical | 15 000 000 |
| Metal Factor | LA------ |
| Miscellaneous | Type Test Certificates/Test Report |
| Mounting type | screw fixing |
| Product Group | 5317 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Not available |
| Supply voltage | |
| last modified: | 08/05/2020 |
| Net Weight (kg) | 0,331 Kg |
| Repeat accuracy | 0.05 mm |
| Thermal current | 10 A |
| ● rated value | 250 V |
| Active principle | mechanical |
| Cable entry type | plug, 6-pole + PU, according to EN 43651 |
| Product function | |
| Shock resistance | |
| Circuit principle | snap-action contacts |
| Country of origin | Germany |
| Mounting position | any |
| Insulation voltage | |
| LKZ_FDB/ CatalogID | CC-IC10 |
| PLM Effective Date | Product is cancelled since: 28.02.2020 |
| Packaging Quantity | 1 |
| Product brand name | SIRIUS |
| ● during storage | -40 ... +90 °C |
| Ambient temperature | |
| Degree of pollution | class 3 |
| Packaging Dimension | 50,00 x 58,00 x 109,00 |
| Product Description | Basic switch for position switch 3SE51 Metal enclosure 40 mm according to EN 50041 with connector 6+PE according to EN 43651 with 2 LEDs, yellow/green 24 V DC 1 NO/1 NC quick action contacts without actuator head Pin assignment: Pin1=21, Pin2=22 Pin3=13 and LED green, Pin4=14 and LED yellow, Pin5=not connected, Pin6=ground LED |
| Product designation | Mechanical position switches |
| Protection class IP | IP65 |
| Width of the sensor | 40 mm |
| Length of the sensor | 111.7 mm |
| Vibration resistance | |
| ● during operation | -25 ... +60 °C |
| ● positive opening | Yes |
| Design of the housing | block, narrow |
| Design of the interface | without |
| Product Lifecycle (PLM) | PM410:Product cancellation |
| Width sensor (EF007094) | 40.0 |
| ● at 24 V rated value | 3 A |
| Coating of the enclosure | cathodic immersion coating |
| General Product Approval | Functional Safety/Safety of Machinery |
| Product type designation | 3SE5 |
| Declaration of Conformity | Test Certificates |
| Forced opening (EF006694) | true |
| Material of the enclosure | metal |
| ● acc. to IEC 60068-2-6 | 0.35 mm/5g |
| Coating housing (EF001601) | Lacquered |
| Diameter sensor (EF007111) | - |
| Export Control Regulations | ECCN : N / AL : N |
| Operating current at DC-13 | |
| ● acc. to IEC 60068-2-27 | 30 g / 11 ms |
| Height of sensor (EF007283) | 37.3 |
| Length of sensor (EF007334) | 111.7 |
| Material housing (EF001596) | Metal |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Design of plug-in connection | plug, 6-pole + PU: Pin 1 = terminal 21, Pin 2 = 22, Pin 3 = 13/LED green, Pin 4 = 14/LED yellow, Pin 5 = not assigned, Pin 6 = ground LED, PU connected |
| Output electronic (EF006987) | FALSE |
| Package size unit of measure | MM |
| Type of interface (EF006977) | None |
| Manufacturer's article number | |
| Switching function (EF000189) | Quick-break switch |
| Type of electrical connection | plug, 6-pole + PU, according to EN 43651 |
| Product Dimensions (W x L x H) | Not available |
| Design of the switching contact | mechanical |
| Design of the switching function | Positive opening with appropriate positive opening actuator head |
| ● of the supplied basic switch | 3SE5115-1CA00-1AF2 |
| Design of the operating mechanism | Other, without, basic switch with LED and plug |
| Suitability for use safety switch | Yes |
| With status indication (EF001602) | true |
| ● of the optional LED indicator | DC |
| Type of control element (EF006976) | None |
| Construction type housing (EF004008) | Cuboid |
| Degree of protection (IP) (EF005474) | IP65 |
| Surge voltage resistance rated value | 0.8 kV |
| Article Number (Market Facing Number) | 3SE5115-1CA00-1AF2 |
| Reference code acc. to DIN EN 61346-2 | B |
| Reference code acc. to DIN EN 81346-2 | B |
| Type of voltage of the supply voltage | |
| Degree of protection (NEMA) (EF011959) | - |
| Design of the housing acc. to standard | Yes |
| Explosion protection category for dust | none |
| Switching function latching (EF007447) | false |
| Type of electric connection (EF003961) | Plug-in connection others |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● of the supplied switching contacts | 3SE5000-0CA00 |
| Suitable for safety functions (EF001597) | true |
| Mechanical service life (switching cycles) | |
| Alignment of the control element (EF008793) | Roller cam straight |
| Number of switching contacts safety-related | 1 |
| Explosion safety category for gas (EF003997) | None |
| Number of NC contacts for auxiliary contacts | 1 |
| Number of NO contacts for auxiliary contacts | 1 |
| Continuous current of the DIAZED fuse link gG | 6 A |
| Explosion safety category for dust (EF003998) | None |
| Continuous current of the C characteristic MCB | 1 A; for a short-circuit current smaller than 400 A |
| Number of safety auxiliary contacts (EF006940) | 1 |
| Ambient temperature during operating (EF007515) | ['-25', '60'] |
| Minimum actuating force in activation direction | 20 N |
| Continuous current of the quick DIAZED fuse link | 10 A; for a short-circuit current smaller than 400 A |
| Number of contacts as change-over contact (EF008257) | 1 |
| Rated operation current Ie at AC-15, 24 V (EF007084) | - |
| Rated operation current Ie at DC-13, 24 V (EF007087) | 3 |
| Rated operation current Ie at AC-15, 125 V (EF007082) | - |
| Rated operation current Ie at AC-15, 230 V (EF001385) | - |
| Rated operation current Ie at DC-13, 125 V (EF007085) | - |
| Rated operation current Ie at DC-13, 230 V (EF001386) | - |
| Type of interface for safety communication (EF003956) | None |
| Number of contacts as normally open contact (EF008256) | 1 |
| Design of the interface for safety-related communication | without |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Imidazolidine-2-thio... CAS-No. 96-45-7 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Imidazolidine-2-thione (2-imidazoline-2-thiol)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| Electrical operating cycles in one hour with contactor 3RH11, 3RT1016, 3RT1017, 3RT1024, 3RT1025, 3RT1026 | 6 000 |
| Electrical endurance (switching cycles) with contactor 3RH11, 3RT1016, 3RT1017, 3RT1024, 3RT1025, 3RT1026 typical | 10 000 000 |
