3SE5112-0CH50

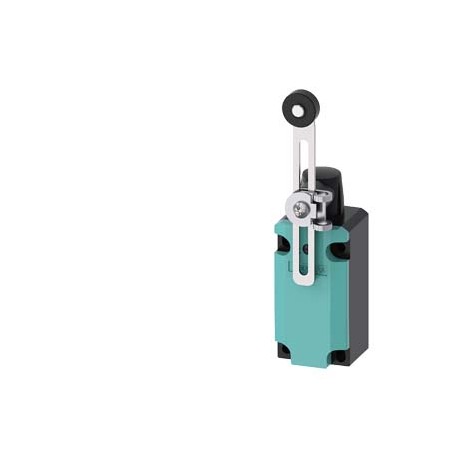

3SE5112-0CH50 SIEMENS Position switch Metal enclosure 40 mm according to EN 50041 Device connection 1x (M20 ..
$0.00USD
3194 in stock
Key Specifications
:VersionClassificationeClass627-27-06-01eClass7.127-27-06-01eClass827-27-06-01eClass927-27-06-01eClass9.127-27-06-01ETIM5EC000030ETIM6EC000030ETIM7EC000030ETIM8EC000030IDEA45202UNSPSC1439-12-22-13UNSPSC1539-12-22-13
EAN:4011209692251
UPC:754554954011
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-27-06-01eClass7.127-27-06-01eClass827-27-06-01eClass927-27-06-01eClass9.127-27-06-01ETIM5EC000030ETIM6EC000030ETIM7EC000030ETIM8EC000030IDEA45202UNSPSC1439-12-22-13UNSPSC1539-12-22-13 | |
| EAN | 4011209692251 |
| UPC | 754554954011 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R711 |
| Metal Factor | LA------ |
| Product Group | 5317 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Enclosure width 40 mm acc. to EN 50041 |
| Net Weight (kg) | 0,353 Kg |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| Packaging Dimension | 45,00 x 165,00 x 72,00 |
| Product Description | Position switch Metal enclosure 40 mm according to EN 50041 Device connection 1x (M20 x 1.5) 1 NO/1 NC quick action contacts Rotary actuator right/left adjustable with adjustable-length Metal lever 100 mm long and plastic roller 19 mm |
| Product Lifecycle (PLM) | PM300:Active Product |
| Width sensor (EF007094) | 40.0 |
| Forced opening (EF006694) | false |
| Coating housing (EF001601) | Lacquered |
| Diameter sensor (EF007111) | - |
| Export Control Regulations | AL : N / ECCN : N |
| Height of sensor (EF007283) | 53.2 |
| Length of sensor (EF007334) | 192.0 |
| Material housing (EF001596) | Metal |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| Output electronic (EF006987) | FALSE |
| Package size unit of measure | MM |
| Type of interface (EF006977) | None |
| Switching function (EF000189) | Quick-break switch |
| With status indication (EF001602) | false |
| Type of control element (EF006976) | Adjustable rotary lever |
| Construction type housing (EF004008) | Cuboid |
| Degree of protection (IP) (EF005474) | IP66/IP67 |
| Article Number (Market Facing Number) | 3SE5112-0CH50 |
| Degree of protection (NEMA) (EF011959) | - |
| Switching function latching (EF007447) | false |
| Type of electric connection (EF003961) | Cable entry metrical |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Suitable for safety functions (EF001597) | false |
| Alignment of the control element (EF008793) | Roller cam straight |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Number of safety auxiliary contacts (EF006940) | 0 |
| Ambient temperature during operating (EF007515) | ['-25', '85'] |
| Number of contacts as change-over contact (EF008257) | 1 |
| Rated operation current Ie at AC-15, 24 V (EF007084) | 6 |
| Rated operation current Ie at DC-13, 24 V (EF007087) | 3 |
| Region Specific PriceGroup / Headquarter Price Group | 41K / 41K |
| Rated operation current Ie at AC-15, 125 V (EF007082) | 6 |
| Rated operation current Ie at AC-15, 230 V (EF001385) | - |
| Rated operation current Ie at DC-13, 125 V (EF007085) | 0.55 |
| Rated operation current Ie at DC-13, 230 V (EF001386) | - |
| Type of interface for safety communication (EF003956) | None |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
