3SE5000-0AW51

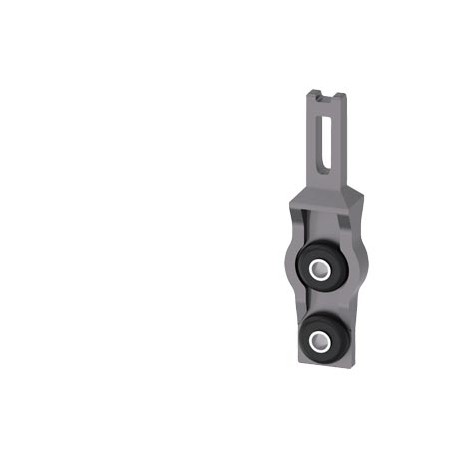

3SE5000-0AW51 SIEMENS stainless steel actuator IP69 (K), standard, geometry-optimized,suitable for extreme e..
$0.00USD
3060 in stock
Key Specifications
:Confirmation
EAN:4047621028101
UPC:804766379161
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4047621028101 |
| UPC | 804766379161 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | R711 |
| Metal Factor | None |
| Date5/14/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5318 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | Accessories |
| last modified: | 12/23/2020 |
| Net Weight (kg) | 0,046 Kg |
| Model (EF000010) | Standard actuator |
| active principle | mechanical |
| fastening method | screw fixing |
| shock resistance | |
| Country of origin | Germany |
| mounting position | any |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● during storage | -40 ... +90 °C |
| Packaging Dimension | 20,00 x 75,00 x 10,00 |
| Product Description | stainless steel actuator, Standard, geometry-optimized,suitable for extreme environmental conditions such as minus 40 degree with increased corrosion protection, for safety position switch 3SE53 and AS-i 3SF13 and safety position switch with separate actuator without tumbler 3SE51/52 and AS-i 3SF11/3SF12 |
| ambient temperature | |
| product designation | actuator |
| vibration resistance | |
| ● during operation | -40 ... +85 °C |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| product type designation | 3SE5 |
| Declaration of Conformity | other |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Substance Prohibitance (Date) | 07/01/2006 |
| ● according to IEC 60068-2-6 | 0.35 mm/5g |
| design of the actuating element | Standard actuator, stainless steel |
| ● according to IEC 60068-2-27 | 30g / 11 ms |
| Article Number (Market Facing Number) | 3SE5000-0AW51 |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| reference code according to IEC 81346-2 | T |
| mechanical service life (switching cycles) typical | 1 000 000 |
| Region Specific PriceGroup / Headquarter Price Group | 41K / 41K |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityConfirmationUK Declaration of ConformityDeclaration of ConformityotherConfirmation | General Product Approval |
