3SE5000-0AR01

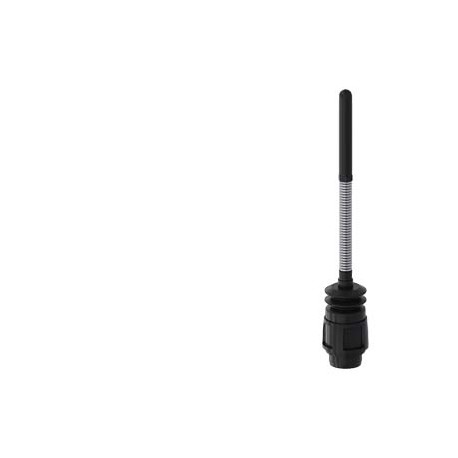

3SE5000-0AR01 SIEMENS Actuator head: spring rod for position switches 3SE51/52 only with snap-action contact..
$0.00USD
4577 in stock
Key Specifications
:Confirmation
EAN:4011209696044
UPC:754554953564
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209696044 |
| UPC | 754554953564 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R711 |
| Date5/4/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | None |
| Product Group | 5317 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | Enclosure width 31 mm acc. to EN 50047 |
| last modified: | 12/21/2020 |
| Net Weight (kg) | 0,031 Kg |
| active principle | mechanical |
| fastening method | lockable plug-in fixing |
| shock resistance | |
| Country of origin | Germany |
| mounting position | any |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● during storage | -40 ... +90 °C |
| Packaging Dimension | 32,00 x 160,00 x 32,00 |
| Product Description | Actuator head: spring rod for position switches 3SE51/52 only with snap-action contacts, total length 142.5 mm, Plunger = 50 mm, Plunger = 50 mm, made of plastic |
| ambient temperature | |
| product designation | actuator head for position switch |
| protection class IP | IP65, IP67 |
| vibration resistance | |
| ● during operation | -25 ... +85 °C |
| Product Lifecycle (PLM) | PM300:Active Product |
| design of the interface | without |
| General Product Approval | Declaration of Conformity |
| coating of the enclosure | Other types |
| product type designation | 3SE5 |
| shape of the switch head | spring |
| Declaration of Conformity | Test Certificates |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Substance Prohibitance (Date) | 07/01/2006 |
| manufacturer's article number | |
| ● according to IEC 60068-2-6 | 0.35 mm/5g |
| design of the actuating element | Spring rod, total length = 142.5 mm (spring 50 mm + plastic plunger 50 mm) |
| ● according to IEC 60068-2-27 | 30g / 11 ms |
| outer diameter of the switch head | 6 mm |
| product function positive opening | No |
| suitability for use safety switch | No |
| Type of control element (EF006976) | Spring-rod |
| Article Number (Market Facing Number) | 3SE5000-0AR01 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| explosion protection category for dust | none |
| reference code according to IEC 81346-2 | T |
| material of the enclosure of the switch head | plastic |
| mechanical service life (switching cycles) typical | 10 000 000 |
| Region Specific PriceGroup / Headquarter Price Group | 41K / 41K |
| ● of the supplied actuator head for position switches | 3SE5000-0AR01 |
| design of the interface for safety-related communication | without |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Imidazolidine-2-thio... CAS-No. 96-45-7 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Imidazolidine-2-thione (2-imidazoline-2-thiol)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| General Product ApprovalDeclaration of ConformityConfirmationUK Declaration of ConformityDeclaration of ConformityTest CertificatesotherType Test Certificates/Test ReportConfirmation | General Product Approval |
Product Description
SIRIUS Int. position, accessory 3SE51/52, actuator long flexible rod. total 138.5mm; plastic stem
