In Stock Hot Product
3SE5000-0AH00-1AJ0

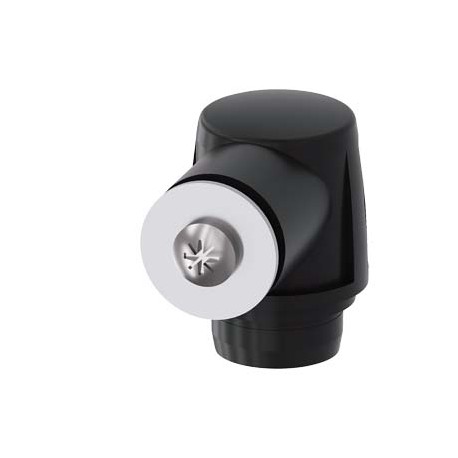

3SE5000-0AH00-1AJ0 SIEMENS Twist lever operating mechanism Functional at -40 °C For position switch 3SE51 Fo..
$0.00USD
3780 in stock
Key Specifications
:Confirmation
EAN:4011209822313
UPC:662643852172
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209822313 |
| UPC | 662643852172 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R711 |
| Date5/3/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | None |
| Product Group | 5318 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | Enclosure width 40 mm acc. to EN 50041 |
| last modified: | 12/21/2020 |
| Net Weight (kg) | 0,026 Kg |
| active principle | mechanical |
| fastening method | lockable plug-in fixing |
| shock resistance | |
| Country of origin | Germany |
| mounting position | any |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● during storage | -40 ... +90 °C |
| Packaging Dimension | 25,00 x 110,00 x 90,00 |
| Product Description | Twist lever operating mechanism Functional at -40 °C For position switch 3SE51 For 40/56/56XL mm, Switching points according to EN 50041. The switching direction of the levers can be set to left/right or only left or only right. Delivery condition is left/right. (Please order lever separately) |
| ambient temperature | |
| product designation | Part-turn actuator for position switch 3SE51/3SF11 |
| vibration resistance | |
| ● during operation | -40 ... +85 °C |
| Product Lifecycle (PLM) | PM300:Active Product |
| design of the interface | without |
| General Product Approval | Declaration of Conformity |
| coating of the enclosure | Other types |
| product type designation | 3SE5 |
| Declaration of Conformity | Test Certificates |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Substance Prohibitance (Date) | 07/01/2006 |
| ● according to IEC 60068-2-6 | 0.35 mm/5g |
| design of the actuating element | Twist actuator, without lever or rod |
| ● according to IEC 60068-2-27 | 30g / 11 ms |
| standard-compliant actuator head | EN 50041 |
| Type of control element (EF006976) | Swivel drive |
| Article Number (Market Facing Number) | 3SE5000-0AH00-1AJ0 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| explosion protection category for dust | none |
| reference code according to IEC 81346-2 | T |
| material of the enclosure of the switch head | plastic |
| ● for railway applications according to EN 61373 | Category 1, Class B |
| minimum actuating torque in directions of actuation | 0.25 N·m |
| Region Specific PriceGroup / Headquarter Price Group | 41K / 41K |
| design of the interface for safety-related communication | without |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityConfirmationUK Declaration of ConformityDeclaration of ConformityTest CertificatesotherType Test Certificates/Test ReportConfirmation | General Product Approval |
Product Description
ACCIONAM. PALAN. ACOD. METAL FOR INTERR. POSITION 3SE51 LEFT/RIGHT ADJUSTABLE, NO LEVER WORKING AT -40 GRAD.. Manufactured to order. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
