3SE5000-0AF01

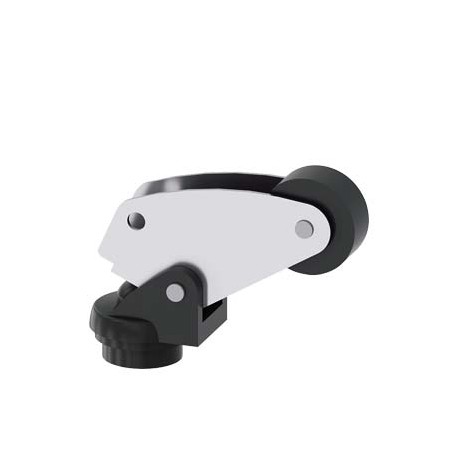

3SE5000-0AF01 SIEMENS Actuator head for position switch 3SE51/52 Angular roller lever Metal lever with Plast..
$0.00USD
3921 in stock
Key Specifications
:Confirmation
EAN:4011209695948
UPC:754554953472
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209695948 |
| UPC | 754554953472 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R711 |
| Metal Factor | None |
| Date5/13/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5317 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | Enclosure width 40 mm acc. to EN 50041 |
| last modified: | 12/21/2020 |
| Net Weight (kg) | 0,034 Kg |
| active principle | mechanical |
| fastening method | lockable plug-in fixing |
| shock resistance | |
| Country of origin | Germany |
| mounting position | any |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● during storage | -40 ... +90 °C |
| Packaging Dimension | 33,00 x 70,00 x 21,00 |
| Product Description | Actuator head for position switch 3SE51/52 Angular roller lever Metal lever with Plastic roller 22 mm |
| ambient temperature | |
| product designation | actuator head for position switch |
| vibration resistance | |
| ● during operation | -25 ... +85 °C |
| Product Lifecycle (PLM) | PM300:Active Product |
| design of the interface | without |
| General Product Approval | Declaration of Conformity |
| coating of the enclosure | Other types |
| product type designation | 3SE5 |
| shape of the switch head | roller |
| Declaration of Conformity | Test Certificates |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Substance Prohibitance (Date) | 07/01/2006 |
| manufacturer's article number | |
| ● according to IEC 60068-2-6 | 0.35 mm/5g |
| design of the actuating element | Angular roller lever, metal lever, plastic roller |
| ● according to IEC 60068-2-27 | 30g / 11 ms |
| standard-compliant actuator head | EN 50041 |
| outer diameter of the switch head | 22 mm |
| product function positive opening | Yes |
| Type of control element (EF006976) | Square roller lever |
| Article Number (Market Facing Number) | 3SE5000-0AF01 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| explosion protection category for dust | none |
| reference code according to IEC 81346-2 | T |
| material of the enclosure of the switch head | plastic |
| mechanical service life (switching cycles) typical | 15 000 000 |
| minimum actuating force in directions of actuation | 10 N |
| Region Specific PriceGroup / Headquarter Price Group | 41K / 41K |
| ● of the supplied actuator head for position switches | 3SE5000-0AF01 |
| design of the interface for safety-related communication | without |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityConfirmationUK Declaration of ConformityDeclaration of ConformityTest CertificatesotherType Test Certificates/Test ReportConfirmation | General Product Approval |
