3SE5000-0AA24

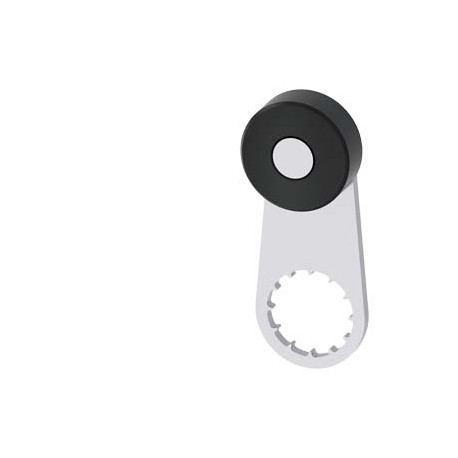

3SE5000-0AA24 SIEMENS twist lever for position switch 3SE51/52 Metal lever, 30 mm long with plastic roller 1..
$0.00USD
3574 in stock
Key Specifications
:Confirmation
EAN:4011209861886
UPC:662643851540
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209861886 |
| UPC | 662643851540 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R711 |
| Date5/3/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | None |
| Product Group | 5317 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | Enclosure width 31 mm acc. to EN 50047 |
| last modified: | 12/21/2020 |
| Net Weight (kg) | 0,017 Kg |
| active principle | mechanical |
| fastening method | screw fixing |
| shock resistance | |
| Country of origin | Germany |
| mounting position | any |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● during storage | -40 ... +90 °C |
| Packaging Dimension | 105,00 x 110,00 x 20,00 |
| Product Description | twist lever for position switch 3SE51/52 Metal lever, 30 mm long with plastic roller 19 mm Roller on cover Rotated by 180° Rear of lever mountable |
| ambient temperature | |
| product designation | actuator for part-turn actuator |
| vibration resistance | |
| ● during operation | -25 ... +85 °C |
| Product Lifecycle (PLM) | PM300:Active Product |
| design of the interface | without |
| coating of the enclosure | Other types |
| product type designation | 3SE5 |
| shape of the switch head | roller |
| Declaration of Conformity | Test Certificates |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Substance Prohibitance (Date) | 07/01/2006 |
| manufacturer's article number | |
| ● according to IEC 60068-2-6 | 0.35 mm/5g |
| design of the actuating element | Twist lever, metal lever, 30 mm long, straight, plastic roller 19 mm |
| ● according to IEC 60068-2-27 | 30g / 11 ms |
| standard-compliant actuator head | EN 50041, design A |
| outer diameter of the switch head | 19 mm |
| product function positive opening | Yes |
| Type of control element (EF006976) | Rotary lever |
| ● of the supplied operating lever | 3SE5000-0AA24 |
| Article Number (Market Facing Number) | 3SE5000-0AA24 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| explosion protection category for dust | none |
| reference code according to IEC 81346-2 | T |
| mechanical service life (switching cycles) typical | 15 000 000 |
| Region Specific PriceGroup / Headquarter Price Group | 41K / 41K |
| design of the interface for safety-related communication | without |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalConfirmationKCDeclaration of ConformityTest CertificatesotherUK Declaration of ConformityType Test Certificates/Test ReportConfirmation | General Product Approval |
Product Description
ROLLER LEVER FOR INTERR. POSITION 3SE51 /52 METAL LEVER 30MM LONG WITH PLASTIC ROLLER 19MM, CAN BE MOUNTED ON LID (ROTATED 180 DEGREES)
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
