3SE3902-4CA20

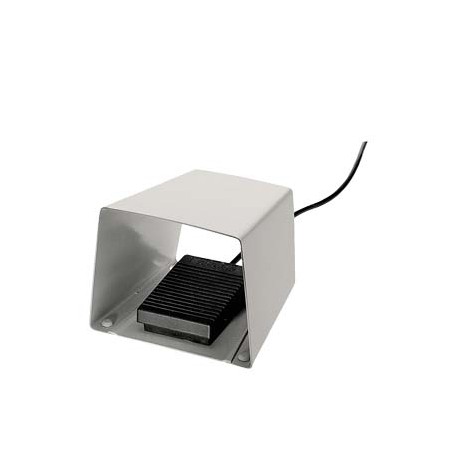

3SE3902-4CA20 SIEMENS Foot switch molded-plastic enclosure Pedal switch 1-pedal with cover, 1 change-over co..
$0.00USD
3351 in stock
Key Specifications
:
EAN:4011209391765
UPC:040892824759
Notes:Product is no longer availableSucessor:3SE2 902-0AA20 metal with cover or 3SE3902-4CB20 plastic without coverIf you need assistance please contact our local Siemens office
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209391765 |
| UPC | 040892824759 |
| Notes | Product is no longer availableSucessor:3SE2 902-0AA20 metal with cover or 3SE3902-4CB20 plastic without coverIf you need assistance please contact our local Siemens office |
| color | |
| depth | 115 mm |
| width | 155 mm |
| height | 152 mm |
| Group Code | R711 |
| Metal Factor | None |
| ● latching | No |
| Date5/11/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 3750 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| ● interlock | No |
| Commodity Code | 85365080 |
| Product family | Not available |
| last modified: | 2/12/2021 |
| Net Weight (kg) | 1,045 Kg |
| product feature | |
| Depth (EF000049) | 115.0 |
| Width (EF000008) | 155.0 |
| cable entry type | cable, 3 m |
| fastening method | screw fixing |
| Colour (EF000007) | Grey |
| Country of origin | Germany |
| Height (EF000040) | 152.0 |
| Marine / Shipping | other |
| LKZ_FDB/ CatalogID | CC-IC10 |
| PLM Effective Date | Product discontinued since: 30.01.2022 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| Material (EF002169) | Plastic |
| Packaging Dimension | 160,00 x 180,00 x 140,00 |
| Product Description | plastic foot switch, pedal pushbutton, 1-pedal with metal cover, 1 changeover contact |
| product designation | momentary-contact foot switch |
| protection class IP | IP65 |
| ● of the enclosure | black |
| Product Lifecycle (PLM) | PM490:Start of final year of support |
| product type designation | 3SE39 |
| Declaration of Conformity | Test Certificates |
| material of the enclosure | plastic with total insulation |
| number of switching steps | 1 |
| Export Control Regulations | ECCN : N / AL : N |
| Type of command (EF002399) | On or off |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| With interlocking (EF002401) | false |
| Substance Prohibitance (Date) | 07/01/2006 |
| ● of the enclosure top part | grey |
| number of the actuation pedals | 1 |
| With protection hood (EF002400) | true |
| suitability for use safety switch | No |
| Number of switch levels (EF000246) | 1 |
| Degree of protection (IP) (EF005474) | IP65 |
| ambient temperature during operation | -10 ... +75 °C |
| Article Number (Market Facing Number) | 3SE3902-4CA20 |
| With protective insulation (EF006523) | FALSE |
| Degree of protection (NEMA) (EF011959) | - |
| Switching function latching (EF007447) | false |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| reference code according to IEC 81346-2 | S |
| Suitable for safety functions (EF001597) | false |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| operational current at AC-15 at 230 V rated value | 5 A |
| Number of contacts as change-over contact (EF008257) | 1 |
| Region Specific PriceGroup / Headquarter Price Group | 41K / 41K |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 5 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalConfirmationDeclaration of ConformityTest CertificatesMarine / ShippingUK Declaration of ConformityMiscellaneousMarine / ShippingotherConfirmation | General Product Approval |
