3SE2903-1AA20

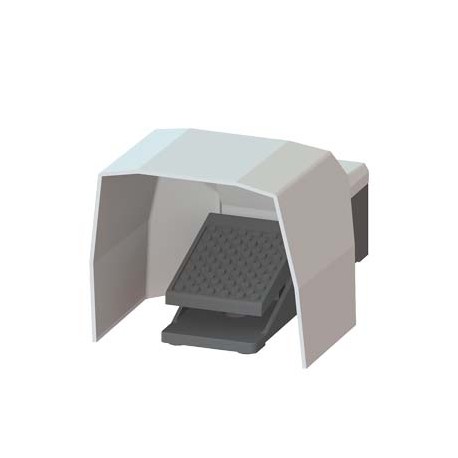

3SE2903-1AA20 SIEMENS Momentary-contact foot switch, 1-pedal, with cover, without latching, Metal enclosure ..
$0.00USD
4645 in stock
Key Specifications
:
EAN:4011209576582
UPC:754554966564
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209576582 |
| UPC | 754554966564 |
| ETIM | 5 |
| IDEA | 4 |
| color | |
| depth | 265 mm |
| width | 156 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 138 mm |
| Group Code | R711 |
| Date5/6/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | None |
| ● latching | No |
| Product Group | 3750 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| ● interlock | No |
| Commodity Code | 85365080 |
| Product family | SIRIUS 3SE2, 3SE3 foot switches |
| last modified: | 2/12/2021 |
| Net Weight (kg) | 1,480 Kg |
| product feature | |
| Depth (EF000049) | 138.0 |
| Width (EF000008) | 156.0 |
| cable entry type | M20 x 1.5 |
| Colour (EF000007) | Grey |
| Country of origin | Germany |
| Height (EF000040) | 265.0 |
| Marine / Shipping | other |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| Material (EF002169) | Metal |
| Packaging Dimension | 165,00 x 295,00 x 145,00 |
| Product Description | Momentary-contact foot switch, 1-pedal, with cover, without latching, Metal enclosure IP65, 2 NO+2 NC, Cable entry M20 x 1.5 |
| product designation | momentary-contact foot switch |
| protection class IP | IP65 |
| ● of the enclosure | black |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at 24 V rated value | 3 A |
| General Product Approval | Declaration of Conformity |
| product type designation | 3SE29 |
| ● at 230 V rated value | 6 A |
| ● at 250 V rated value | 0.25 A |
| ● at 400 V rated value | 6 A |
| Declaration of Conformity | Test Certificates |
| material of the enclosure | metal |
| number of switching steps | 1 |
| Export Control Regulations | AL : N / ECCN : N |
| Type of command (EF002399) | - |
| Standard lead time ex-works | 60 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| UK Declaration of Conformity | Miscellaneous |
| With interlocking (EF002401) | false |
| operational current at AC-15 | |
| operational current at DC-13 | |
| Substance Prohibitance (Date) | 07/01/2006 |
| ● of the enclosure top part | grey |
| number of the actuation pedals | 1 |
| With protection hood (EF002400) | true |
| proportion of dangerous failures | |
| suitability for use safety switch | No |
| Number of switch levels (EF000246) | 1 |
| Degree of protection (IP) (EF005474) | IP65 |
| ambient temperature during operation | -25 ... +80 °C |
| Article Number (Market Facing Number) | 3SE2903-1AA20 |
| With protective insulation (EF006523) | FALSE |
| Degree of protection (NEMA) (EF011959) | - |
| Switching function latching (EF007447) | false |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| reference code according to IEC 81346-2 | S |
| Suitable for safety functions (EF001597) | false |
| number of NC contacts for auxiliary contacts | 2 |
| number of NO contacts for auxiliary contacts | 2 |
| ● with low demand rate according to SN 31920 | 50 % |
| ● with high demand rate according to SN 31920 | 50 % |
| minimum actuating force in directions of actuation | 20 N |
| Number of contacts as change-over contact (EF008257) | - |
| Region Specific PriceGroup / Headquarter Price Group | 41K / 41K |
| B10 value with high demand rate according to SN 31920 | 1 000 000 |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 6 |
| Number of contacts as normally open contact (EF008256) | 2 |
| Number of contacts as normally closed contact (EF008255) | 2 |
| failure rate [FIT] with low demand rate according to SN 31920 | 100 FIT |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| T1 value for proof test interval or service life according to IEC 61508 | 20 y |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityConfirmationDeclaration of ConformityTest CertificatesMarine / ShippingUK Declaration of ConformityMiscellaneousMarine / ShippingotherConfirmation | General Product Approval |
