3SB3345-0AA41

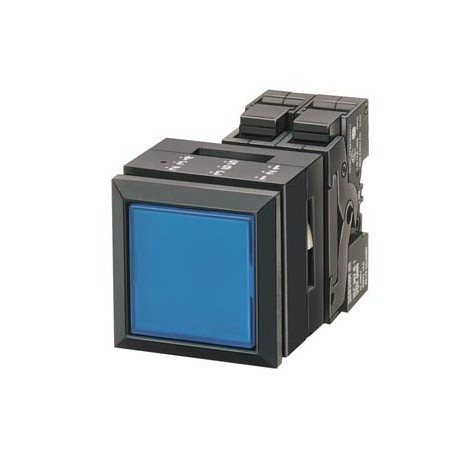

3SB3345-0AA41 SIEMENS 26X26MM PLASTIC SQUARE COMPLETE UNIT COMBINATION: ILLUMINATED PUSHBUTTON MOMENTARY CO..
$0.00USD
4491 in stock
Key Specifications
Color:
● typical:3 000 000
Mounting type:integrated LED
Mounting height:5 mm
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Color | |
| ● typical | 3 000 000 |
| Mounting type | integrated LED |
| Mounting height | 5 mm |
| Type of voltage | |
| ● rated value | 24 ... 24 V |
| Product function | |
| ● Light source | Yes |
| Equipment marking | |
| Operating voltage | |
| Product component | |
| Installation depth | 49 mm |
| Installation width | 30 mm |
| ● during storage | -40 ... +80 °C |
| Ambient temperature | |
| Protection class IP | IP66 |
| Vibration resistance | |
| ● during operation | -25 ... +70 °C |
| ● positive opening | No |
| Design of the product | Complete unit, square |
| Number of CO contacts | |
| Number of NC contacts | |
| Number of NO contacts | |
| Number of lampholders | 1 |
| Material of the holder | Plastic |
| Color of the front ring | black |
| ● at 24 V rated value | 10 A |
| ● at 48 V rated value | 10 A |
| ● of the light source | AC/DC |
| Design of the front ring | Standard |
| Number of command points | 1 |
| Type of unlocking device | without |
| ● at 110 V rated value | 10 A |
| ● at 230 V rated value | 10 A |
| ● at 400 V rated value | 10 A |
| ● at 50 Hz rated value | 24 V |
| ● at 60 Hz rated value | 24 V |
| Material of the enclosure | plastic |
| ● acc. to IEC 60068-2-6 | 20 ... 200 Hz: 5g |
| Material of the front ring | plastic |
| Operating current at AC-12 | |
| Operating current at AC-15 | |
| Operating current at DC-12 | |
| Operating current at DC-13 | |
| ● acc. to DIN EN 61346-2 | S |
| ● acc. to DIN EN 81346-2 | S |
| ● for auxiliary contacts | 0 |
| Operating frequency maximum | 1 000 1/h |
| ● EMERGENCY STOP function | No |
| Number of switching elements | 1 |
| Product component front ring | Yes |
| Shape of the enclosure front | Square |
| ● of the actuating element | Green |
| ● of the operating voltage | AC/DC |
| Number of switching positions | 2 |
| Type of electrical connection | screw-type terminals |
| Shape of the actuating element | Flat pushbutton |
| Design of the operating mechanism | Illuminated pushbutton |
| Material of the actuating element | plastic |
| Shape of the installation opening | square |
| Type of voltage of the supply voltage | |
| Product extension optional Light source | Yes |
| Mechanical service life (switching cycles) | |
| Supply voltage 1 of the light source at AC | |
| Supply voltage 1 of the light source at DC | |
| Manner of function of the actuating element | Momentary contact type |
| Tightening torque of the screws in the bracket | 0.9 ... 1.1 N·m |
| Relative negative tolerance of the supply voltage | -15 % |
| Relative positive tolerance of the supply voltage | 10 % |
| Environmental category during operation acc. to IEC 60721 | 3K6 |
| Consumed current for rated value of supply voltage maximum | 18 mA |
| ● acc. to DIN 40719 extended according to IEC 204-2 acc. to IEC 750 | S |
