3SB3111-0DA51

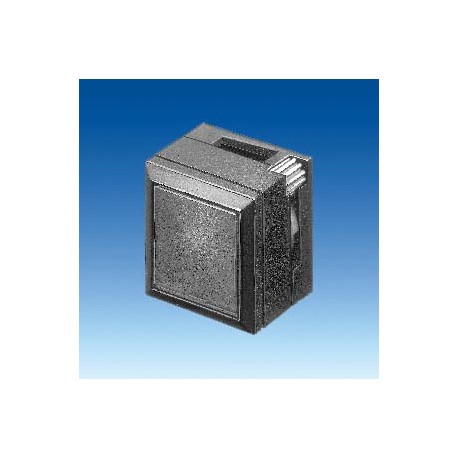

3SB3111-0DA51 SIEMENS 26X26MM PLASTIC SQUARE ACTUATOR: ILLUMINATED PUSHBUTTON LATCHING, UNLOCKING BY PRESSI..
$0.00USD
4618 in stock
Key Specifications
Color:
● typical:300 000
Mounting type:front mounting
Mounting height:5 mm
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Color | |
| ● typical | 300 000 |
| Mounting type | front mounting |
| Mounting height | 5 mm |
| Product function | |
| Equipment marking | |
| Installation depth | 29 mm |
| Installation width | 30 mm |
| ● during storage | -40 ... +80 °C |
| Ambient temperature | |
| Protection class IP | IP66 |
| Vibration resistance | |
| ● during operation | -25 ... +70 °C |
| Design of the product | Single device square |
| Material of the holder | Plastic |
| Color of the front ring | black |
| Design of the front ring | Standard |
| Number of command points | 1 |
| Type of unlocking device | push-to-unlatch mechanism |
| ● acc. to IEC 60068-2-6 | 20 ... 200 Hz: 5g |
| Material of the front ring | plastic |
| ● EMERGENCY OFF function | No |
| ● acc. to DIN EN 61346-2 | S |
| ● acc. to DIN EN 81346-2 | S |
| Operating frequency maximum | 1 000 1/h |
| ● EMERGENCY STOP function | No |
| Product component front ring | Yes |
| ● of the actuating element | Blue |
| Number of switching positions | 2 |
| Shape of the actuating element | Flat pushbutton |
| Design of the operating mechanism | Illuminated pushbutton |
| Material of the actuating element | plastic |
| Shape of the installation opening | square |
| Product extension optional Light source | Yes |
| Mechanical service life (switching cycles) | |
| Manner of function of the actuating element | Latching |
| Tightening torque of the screws in the bracket | 0.9 ... 1.1 N·m |
| Environmental category during operation acc. to IEC 60721 | 3K6 |
| ● acc. to DIN 40719 extended according to IEC 204-2 acc. to IEC 750 | S |
