In Stock Hot Product
3SB2210-2DB01

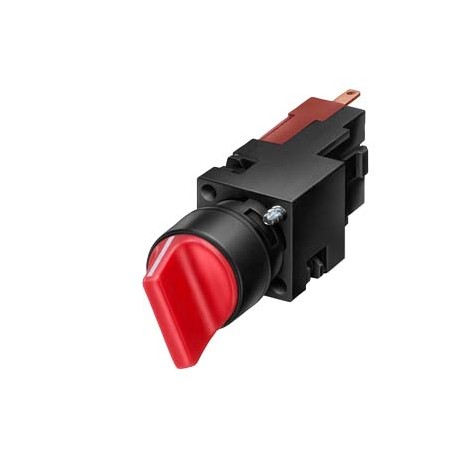

3SB2210-2DB01 SIEMENS Selector switch, 16 mm, round, plastic, black, 3 switch positions I-O-II, latching, Ac..
$0.00USD
4390 in stock
Key Specifications
:VersionClassificationeClass627-37-12-43eClass7.127-37-12-43eClass827-37-12-43eClass927-37-12-43eClass9.127-37-12-43ETIM5EC001029ETIM6EC001029ETIM7EC001029ETIM8EC001029IDEA45208UNSPSC1439-12-22-14UNSPSC1539-12-22-14
EAN:4011209028227
UPC:754554654102
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-12-43eClass7.127-37-12-43eClass827-37-12-43eClass927-37-12-43eClass9.127-37-12-43ETIM5EC001029ETIM6EC001029ETIM7EC001029ETIM8EC001029IDEA45208UNSPSC1439-12-22-14UNSPSC1539-12-22-14 | |
| EAN | 4011209028227 |
| UPC | 754554654102 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R711 |
| Metal Factor | LA------ |
| Product Group | 5834 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Complete units |
| Net Weight (kg) | 0,020 Kg |
| Country of origin | Czech Republic |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| Packaging Dimension | 50,00 x 75,00 x 55,00 |
| Product Description | Selector switch, 16 mm, round, plastic, black, 3 switch positions I-O-II, latching, Actuating angle 2 x 62 degree, 1 NO, 1 NO |
| Product Lifecycle (PLM) | PM300:Active Product |
| Colour button (EF000190) | Black |
| Hole diameter (EF000079) | 16.0 |
| Spring-return (EF001407) | FALSE |
| Width opening (EF004565) | 19.0 |
| Height opening (EF004778) | 17.0 |
| Supply voltage (EF004127) | ['5', '250'] |
| Export Control Regulations | AL : N / ECCN : N |
| With front ring (EF006014) | true |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Colour front ring (EF002429) | Black |
| Package size unit of measure | MM |
| With light source (EF005905) | - |
| Material front ring (EF005972) | Plastic |
| Type of control element (EF006976) | Toggle |
| Degree of protection (IP) (EF005474) | IP65 |
| Suitable for illumination (EF001142) | false |
| Article Number (Market Facing Number) | 3SB2210-2DB01 |
| Number of switch positions (EF000231) | 3 |
| Degree of protection (NEMA) (EF011959) | - |
| Switching function latching (EF007447) | FALSE |
| Type of electric connection (EF003961) | Flat plug-in connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Number of contacts as change-over contact (EF008257) | 0 |
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J |
| Number of contacts as normally open contact (EF008256) | 2 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
