3SB2203-1AC01

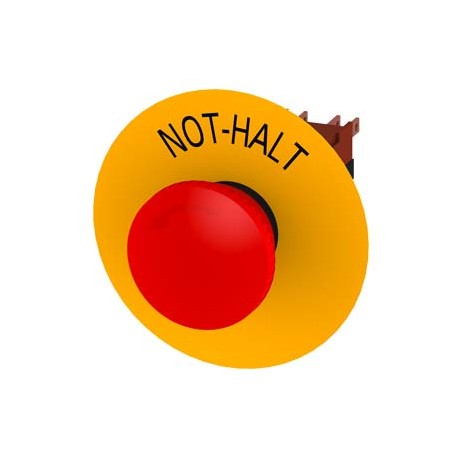

3SB2203-1AC01 SIEMENS Emergency stop mushroom pushbutton, 16 mm, round, plastic, red, latching, with rotate-..
$0.00USD
3492 in stock
Key Specifications
:
EAN:4011209028128
UPC:754554656793
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209028128 |
| UPC | 754554656793 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R711 |
| Date5/6/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LA------ |
| Product Group | 3755 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Complete units |
| last modified: | 1/26/2022 |
| Net Weight (kg) | 0,020 Kg |
| mounting height | 21 mm |
| fastening method | front plate mounting |
| product function | |
| Country of origin | Czech Republic |
| Test Certificates | other |
| mounting diameter | 16 mm |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| installation depth | 50 mm |
| installation width | 28.5 mm |
| product brand name | SIRIUS |
| ● during storage | -40 ... +80 °C |
| Packaging Dimension | 83,00 x 50,00 x 53,00 |
| Product Description | Emergency stop mushroom pushbutton, 16 mm, round, plastic, red, latching, with rotate-to-unlatch mechanism, according to ISO 13850, 1 NC, with yellow backing plate, EMERGENCY STOP |
| ambient temperature | |
| product designation | EMERGENCY STOP mushroom pushbuttons |
| protection class IP | IP65 |
| ● during operation | -25 ... +70 °C |
| ● positive opening | Yes |
| design of the product | Complete unit round with positive latching in accordance with ISO 13850 |
| number of lampholders | 0 |
| material of the holder | Plastic |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at 24 V rated value | 10 A |
| ● at 60 V rated value | 10 A |
| Colour button (EF000190) | Red |
| General Product Approval | Declaration of Conformity |
| Hole diameter (EF000079) | 16.0 |
| Special Test Certificate | Miscellaneous |
| Spring-return (EF001407) | FALSE |
| Width opening (EF004565) | 28.5 |
| marking of backing plate | Yellow backing plate, inscription "NOT-HALT" |
| number of command points | 1 |
| product type designation | 3SB2 |
| type of unlocking device | rotate-to-unlatch mechanism |
| ● at 110 V rated value | 10 A |
| ● at 230 V rated value | 10 A |
| Height opening (EF004778) | 21.0 |
| Type of button (EF001546) | - |
| Export Control Regulations | AL : N / ECCN : N |
| With front ring (EF006014) | false |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| operating frequency maximum | 1 000 1/h |
| ● EMERGENCY STOP function | Yes |
| Colour front ring (EF002429) | - |
| Package size unit of measure | MM |
| number of switching elements | 1 |
| operational current at AC-12 | |
| operational current at AC-15 | |
| operational current at DC-12 | |
| operational current at DC-13 | |
| product component front ring | No |
| Substance Prohibitance (Date) | 07/01/2006 |
| number of switching positions | 2 |
| operating voltage rated value | 5 ... 250 V |
| type of electrical connection | tab terminals |
| Material front ring (EF005972) | - |
| Supply voltage lamp (EF006522) | - |
| color of the actuating element | red |
| design of the actuating element | EMERGENCY STOP mushroom pushbutton |
| proportion of dangerous failures | |
| Construction type lens (EF006253) | - |
| material of the actuating element | plastic |
| shape of the installation opening | round |
| Degree of protection (IP) (EF005474) | IP65 |
| Suitable for illumination (EF001142) | false |
| Article Number (Market Facing Number) | 3SB2203-1AC01 |
| Degree of protection (NEMA) (EF011959) | - |
| Number of command positions (EF001372) | 1 |
| Switching function latching (EF007447) | FALSE |
| Type of electric connection (EF003961) | Flat plug-in connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| product extension optional light source | No |
| reference code according to IEC 81346-2 | S |
| type of voltage of the operating voltage | AC/DC |
| number of CO contacts for auxiliary contacts | 0 |
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 0 |
| tightening torque of the screws in the bracket | 0.4 N·m |
| ● with low demand rate according to SN 31920 | 20 % |
| principle of operation of the actuating element | latching |
| vibration resistance according to IEC 60068-2-6 | 20 ... 200 Hz: 5g |
| ● with high demand rate according to SN 31920 | 20 % |
| mechanical service life (switching cycles) typical | 10 000 000 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J |
| B10 value with high demand rate according to SN 31920 | 100 000 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 1 |
| failure rate [FIT] with low demand rate according to SN 31920 | 100 FIT |
| environmental category during operation according to IEC 60721 | 3K6 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityUK Declaration of ConformityTest CertificatesotherSpecial Test CertificateMiscellaneousConfirmation | General Product Approval |
