3SB2000-4PC01

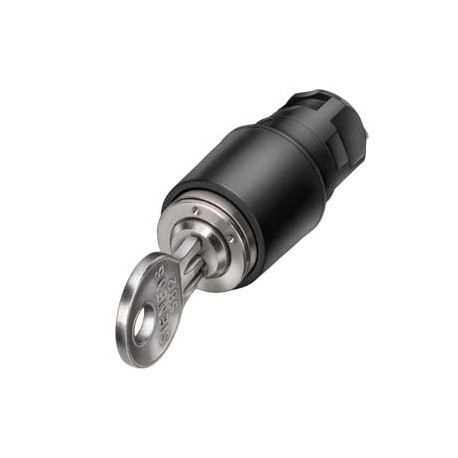

3SB2000-4PC01 SIEMENS keyswitch, 16 mm, round, plastic, Siemens, 3 switch positions I-O-II, latching, actuat..
$0.00USD
3379 in stock
Key Specifications
:
EAN:4011209291621
UPC:754554966601
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209291621 |
| UPC | 754554966601 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 14 |
| eClass | 6 |
| lock make | CES |
| Group Code | R711 |
| Metal Factor | None |
| Date5/14/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5834 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| ● clockwise | 62° |
| Commodity Code | 83014090 |
| Product family | Actuating and signaling elements |
| last modified: | 1/26/2022 |
| Net Weight (kg) | 0,020 Kg |
| actuating angle | |
| mounting height | 20 mm |
| fastening method | front plate mounting |
| product function | |
| Country of origin | Czech Republic |
| Test Certificates | other |
| mounting diameter | 16 mm |
| ● anticlockwise | 62° |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| installation depth | 50 mm |
| installation width | 19 mm |
| product brand name | SIRIUS |
| ● during storage | -40 ... +80 °C |
| Packaging Dimension | 20,00 x 30,00 x 10,00 |
| Product Description | keyswitch, 16 mm, round, plastic, Siemens, 3 switch positions I-O-II, latching, actuating angle 2 x 62 degrees key removal I |
| ambient temperature | |
| product designation | Key-operated switches |
| protection class IP | IP65 |
| ● during operation | -25 ... +70 °C |
| design of the product | Single device round |
| material of the holder | Plastic |
| Product Lifecycle (PLM) | PM300:Active Product |
| color of the front ring | black |
| General Product Approval | Declaration of Conformity |
| Hole diameter (EF000079) | 16.0 |
| Special Test Certificate | Confirmation |
| Spring-return (EF001407) | FALSE |
| Width opening (EF004565) | 19.0 |
| design of the front ring | Standard |
| number of command points | 1 |
| product type designation | 3SB2 |
| type of unlocking device | key unlatching |
| Height opening (EF004778) | 20.0 |
| Export Control Regulations | AL : N / ECCN : N |
| With front ring (EF006014) | true |
| material of the front ring | plastic |
| ● EMERGENCY OFF function | No |
| Standard lead time ex-works | 20 Day/Days |
| Surcharge for Raw Materials | None |
| operating frequency maximum | 1 000 1/h |
| ● EMERGENCY STOP function | No |
| Colour front ring (EF002429) | Black |
| Package size unit of measure | MM |
| product component front ring | Yes |
| Substance Prohibitance (Date) | 07/01/2006 |
| number of switching positions | 3 |
| Material front ring (EF005972) | Plastic |
| design of the actuating element | Key-operated switch |
| Colour control element (EF007167) | - |
| Construction type lens (EF006253) | Round |
| material of the actuating element | plastic |
| shape of the installation opening | round |
| Type of control element (EF006976) | Key |
| switch position for key distraction | I |
| Suitable for illumination (EF001142) | false |
| Article Number (Market Facing Number) | 3SB2000-4PC01 |
| Colour indicator light cap (EF007165) | Other |
| Number of switch positions (EF000231) | 3 |
| Degree of protection (NEMA) (EF011959) | - |
| Switching function latching (EF007447) | FALSE |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| outer diameter of the actuating element | 19 mm |
| product extension optional light source | No |
| reference code according to IEC 81346-2 | S |
| tightening torque of the screws in the bracket | 0.4 N·m |
| principle of operation of the actuating element | latching |
| vibration resistance according to IEC 60068-2-6 | 20 ... 200 Hz: 5g |
| Degree of protection (IP), front side (EF003118) | IP65 |
| mechanical service life (switching cycles) typical | 300 000 |
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J |
| environmental category during operation according to IEC 60721 | 3K6 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityTest CertificatesUK Declaration of ConformityMiscellaneousTest CertificatesotherSpecial Test CertificateConfirmation | General Product Approval |
Product Description
ELEMENT D.ACTUAMIENTO 16MM CERRAD. CES,I-O-II,C.ENCLAVAM. REMOVABLE KEY IN I+O+II. Manufactured to order. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
