3SB2000-2BB01

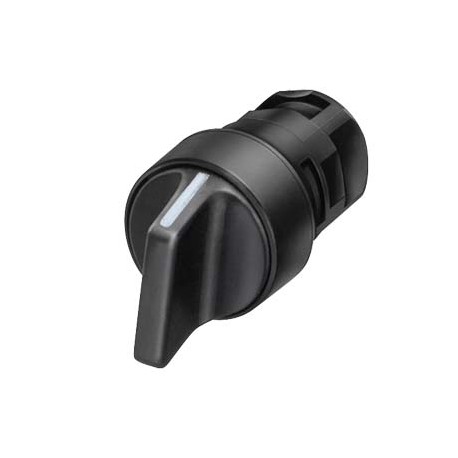

3SB2000-2BB01 SIEMENS Selector switch, 16 mm, round, plastic, black, 2 switch positions O I, momentary conta..
$0.00USD
3745 in stock
Key Specifications
:
EAN:4011209027695
UPC:754554865454
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209027695 |
| UPC | 754554865454 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R711 |
| Date5/4/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | None |
| Product Group | 5834 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| ● clockwise | 50° |
| Commodity Code | 85389099 |
| Product family | Actuating and signaling elements |
| last modified: | 1/26/2022 |
| Net Weight (kg) | 0,020 Kg |
| actuating angle | |
| mounting height | 17 mm |
| fastening method | front plate mounting |
| product function | |
| Country of origin | Czech Republic |
| Test Certificates | other |
| mounting diameter | 16 mm |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| installation depth | 50 mm |
| installation width | 19 mm |
| product brand name | SIRIUS |
| ● during storage | -40 ... +80 °C |
| Packaging Dimension | 11,00 x 49,00 x 53,00 |
| Product Description | Selector switch, 16 mm, round, plastic, black, 2 switch positions O<I, momentary contact type, retraction from right, actuating angle 50 degree |
| ambient temperature | |
| product designation | Selector switches |
| protection class IP | IP65 |
| ● during operation | -25 ... +70 °C |
| design of the product | Single device round |
| material of the holder | Plastic |
| Product Lifecycle (PLM) | PM300:Active Product |
| color of the front ring | black |
| General Product Approval | Declaration of Conformity |
| Hole diameter (EF000079) | 16.0 |
| Special Test Certificate | Confirmation |
| Spring-return (EF001407) | FALSE |
| Width opening (EF004565) | 19.0 |
| design of the front ring | Standard |
| number of command points | 1 |
| product type designation | 3SB2 |
| type of unlocking device | without |
| Height opening (EF004778) | 17.0 |
| Export Control Regulations | AL : N / ECCN : N |
| With front ring (EF006014) | true |
| material of the front ring | plastic |
| ● EMERGENCY OFF function | No |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| operating frequency maximum | 1 000 1/h |
| ● EMERGENCY STOP function | No |
| Colour front ring (EF002429) | Black |
| Package size unit of measure | MM |
| product component front ring | Yes |
| Substance Prohibitance (Date) | 07/01/2006 |
| number of switching positions | 2 |
| Material front ring (EF005972) | Plastic |
| color of the actuating element | black |
| design of the actuating element | selector switch |
| Colour control element (EF007167) | Black |
| Construction type lens (EF006253) | Round |
| material of the actuating element | plastic |
| shape of the installation opening | round |
| Type of control element (EF006976) | Toggle |
| Suitable for illumination (EF001142) | false |
| Article Number (Market Facing Number) | 3SB2000-2BB01 |
| Colour indicator light cap (EF007165) | Other |
| Number of switch positions (EF000231) | 2 |
| Degree of protection (NEMA) (EF011959) | - |
| Switching function latching (EF007447) | FALSE |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| outer diameter of the actuating element | 19 mm |
| product extension optional light source | No |
| reference code according to IEC 81346-2 | S |
| tightening torque of the screws in the bracket | 0.4 N·m |
| principle of operation of the actuating element | momentary contact type |
| vibration resistance according to IEC 60068-2-6 | 20 ... 200 Hz: 5g |
| Degree of protection (IP), front side (EF003118) | IP65 |
| mechanical service life (switching cycles) typical | 300 000 |
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J |
| environmental category during operation according to IEC 60721 | 3K6 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityTest CertificatesUK Declaration of ConformityMiscellaneousTest CertificatesotherSpecial Test CertificateConfirmation | General Product Approval |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
