3RW5556-2HA04

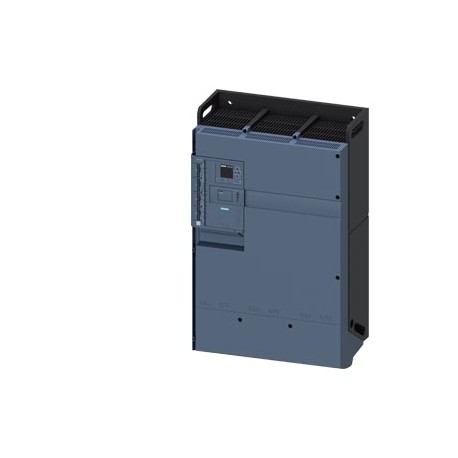

3RW5556-2HA04 SIEMENS SIRIUS soft starter 200-480 V 1100 A, 24 V AC/DC Spring-type terminals
$0.00USD
4526 in stock
Key Specifications
:
EAN:4047621059341
UPC:804766937415
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4047621059341 |
| UPC | 804766937415 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 241 mm |
| width | 478 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 764 mm |
| ● ATEX | Yes |
| ● IECEx | Yes |
| Group Code | R711 |
| trip class | CLASS 10A / 10E (default) / 20E / 30E; acc. to IEC 60947-4-2 |
| wire length | |
| ● upwards | 100 mm |
| Date5/3/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LAO----- |
| ● PROFIBUS | Yes |
| ● forwards | 10 mm |
| Product Group | 4982 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| ● backwards | 0 mm |
| ● downwards | 75 mm |
| Commodity Code | 85371098 |
| Product family | 3RW55 soft starters |
| last modified: | 4/11/2022 |
| service factor | 1.15 |
| ● CE marking | Yes |
| ● DC braking | Yes |
| ● Modbus RTU | Yes |
| ● Modbus TCP | Yes |
| ● auto-RESET | Yes |
| ● event list | Yes |
| Net Weight (kg) | 15,000 Kg |
| ● EtherNet/IP | Yes |
| ● PROFIenergy | Yes; in connection with the PROFINET Standard and PROFINET High-Feature communication modules |
| ● UL approval | Yes |
| ● at the side | 5 mm |
| ● of the fuse | |
| ● rated value | 200 ... 480 V |
| fastening method | screw fixing |
| minimum load [%] | 10 %; Relative to set Ie |
| product category | Hybrid switching devices |
| product function | |
| shock resistance | 15 g / 11 ms, from 6 g / 11 ms with potential contact lifting |
| start torque [%] | 10 ... 100 % |
| ● CSA approval | Yes |
| ● manual RESET | Yes |
| ● remote reset | Yes |
| ● voltage ramp | Yes |
| Country of origin | Czech Republic |
| Marine / Shipping | other |
| mounting position | Vertical (can be rotated +/- 90° and tilted forward or backward +/- 22.5°) |
| operating voltage | |
| product component | |
| tightening torque | |
| ● analog output | Yes; 4 ... 20 mA (default) / 0 ... 10 V |
| ● error logbook | Yes |
| ● motor heating | Yes |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● pump ramp down | Yes |
| ● screw terminal | No |
| ● torque control | Yes |
| ● trace function | Yes |
| Packaging Dimension | 570,00 x 880,00 x 490,00 |
| Product Description | SIRIUS soft starter 200-480 V 1100 A, 24 V AC/DC Spring-type terminals |
| ambient temperature | |
| degree of pollution | 3, acc. to IEC 60947-4-2 |
| operational current | |
| product designation | Soft starter |
| stopping torque [%] | 10 ... 100 % |
| ● breakaway pulse | Yes |
| ● firmware update | Yes |
| ● parameterizable | 4 |
| idle time adjustable | 0 ... 255 s |
| starting voltage [%] | 20 ... 100 % |
| stopping voltage [%] | 50 %; non-adjustable |
| vibration resistance | 15 mm up to 6 Hz; 2 g up to 500 Hz |
| ● HMI-High Feature | Yes |
| ● combined braking | Yes |
| ● during operation | -25 ... +60 °C; Please observe derating at temperatures of 40 °C or above |
| torque limitation [%] | 20 ... 200 % |
| ● PROFINET standard | Yes |
| ● at DC rated value | 24 V |
| control supply voltage | |
| digital output version | 3 normally-open contacts (NO) / 1 changeover contact (CO) |
| environmental category | |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● application wizards | Yes |
| ● for control circuit | 100 ms |
| ● reversing operation | Yes |
| EMC emitted interference | acc. to IEC 60947-4-2: Class A |
| General Product Approval | EMC |
| number of analog outputs | 1 |
| number of digital inputs | 4 |
| number of parameter sets | 3 |
| product type designation | 3RW55 |
| weight without packaging | 61 kg |
| ● alternative run-down | Yes |
| ● at 50 Hz rated value | 24 V |
| ● at 60 Hz rated value | 24 V |
| ● condition monitoring | Yes |
| ● inside-delta circuit | Yes |
| breakaway time adjustable | 0 ... 2 s |
| ● PROFINET high-feature | Yes |
| ● at 40 °C rated value | 1 100 A |
| ● at 50 °C rated value | 979 A |
| ● at 60 °C rated value | 890 A |
| ● ramp-down (soft stop) | Yes |
| Export Control Regulations | AL : N / ECCN : N |
| certificate of suitability | |
| ● communication function | Yes |
| ● slave pointer function | Yes |
| ● spring-loaded terminal | Yes |
| Standard lead time ex-works | 100 Day/Days |
| Surcharge for Raw Materials | None |
| impulse voltage rated value | 6 kV |
| number of controlled phases | 3 |
| tightening torque [lbf·in] | |
| ● at 40 °C after startup | 330 W |
| ● at 50 °C after startup | 270 W |
| ● at 60 °C after startup | 223 W |
| ● ramp-up (soft starting) | Yes |
| Package size unit of measure | MM |
| control supply voltage at AC | |
| type of the motor protection | Electronic, tripping in the event of thermal overload of the motor |
| ● at 40 °C during startup | 18 502 W |
| ● at 50 °C during startup | 15 568 W |
| ● at 60 °C during startup | 13 552 W |
| ● emergency operation mode | Yes |
| ● for main current circuit | 100 ms |
| Substance Prohibitance (Date) | 02/11/2019 |
| electromagnetic compatibility | acc. to IEC 60947-4-2 |
| manufacturer's article number | |
| type of electrical connection | |
| ● for control circuit solid | 2x (0.25 ... 1.5 mm²) |
| ● motor overload protection | Yes; Full motor protection (thermistor motor protection and electronic motor overload protection) / When using the motor overload protection according to ATEX, an upstream contactor is required in inside-delta circuit. |
| ● number of digital outputs | 4 |
| ● via software configurable | Yes |
| For use in hazardous locations | Declaration of Conformity |
| insulation voltage rated value | 480 V |
| ramp-down time of soft starter | 0 ... 360 s |
| ● automatic parameterisation | Yes |
| width of connection bar maximum | 55 mm |
| ● intrinsic device protection | Yes |
| breakaway voltage [%] adjustable | 40 ... 100 % |
| control supply voltage frequency | 50 ... 60 Hz |
| ● at DC-13 at 24 V rated value | 1 A |
| ● during storage and transport | -40 ... +80 °C |
| ● via software parameterizable | Yes |
| Operating frequency 1 rated value | 50 Hz |
| Operating frequency 2 rated value | 60 Hz |
| communication module is supported | |
| ● adjustable current limitation | Yes |
| ● at 40 °C rated value minimum | 220 A |
| ● at AC-15 at 250 V rated value | 3 A |
| ● is supported HMI-High Feature | Yes |
| operating power for 3-phase motors | |
| start-up ramp time of soft starter | 0 ... 360 s |
| ● at 230 V at 40 °C rated value | 315 kW |
| ● at 400 V at 40 °C rated value | 560 kW |
| current unbalance limiting value [%] | 10 ... 60 % |
| design of the overvoltage protection | Varistor |
| surge voltage resistance rated value | 6 kV |
| ● operating measured value display | Yes |
| Article Number (Market Facing Number) | 3RW5556-2HA04 |
| current limiting value [%] adjustable | 125 ... 800 % |
| wire length for thermistor connection | |
| ● of high feature HMI module usable | 3RW5980-0HF00 |
| ● of the gG fuse usable up to 690 V | 3x3NA3365-6; Type of coordination 1, Iq = 65 kA |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● at 200/208 V at 50 °C rated value | 350 hp |
| ● at 220/230 V at 50 °C rated value | 400 hp |
| ● at 460/480 V at 50 °C rated value | 850 hp |
| ● between main and auxiliary circuit | 480 V; does not apply for thermistor connection |
| ● of circuit breaker usable at 400 V | 3VA2716-7AB05-0AA0; Type of coordination 1, Iq = 65 kA, CLASS 10 |
| ● of circuit breaker usable at 500 V | 3VA2716-7AB05-0AA0; Type of coordination 1, Iq = 65 kA, CLASS 10 |
| operating power [hp] for 3-phase motors | |
| reference code according to IEC 81346-2 | Q |
| ● at inside-delta circuit rated value | 200 ... 480 V |
| ● at the digital inputs at DC maximum | 1 000 m |
| ● of communication module Ethernet/IP | 3RW5980-0CE00 |
| ● programmable control inputs/outputs | Yes |
| accuracy class according to IEC 61557-12 | 5 % |
| blocking voltage of the thyristor maximum | 1 400 V |
| ● during storage according to IEC 60721 | 1K6 (only occasional condensation), 1C2 (no salt mist), 1S2 (sand must not get inside the devices), 1M4 |
| ground-fault monitoring limiting value [%] | 10 ... 95 % |
| ● according to ATEX directive 2014/34/EU | BVS 18 ATEX F 003 X |
| ● between soft starter and motor maximum | 800 m |
| ● removable terminal for control circuit | Yes |
| operational current at inside-delta circuit | |
| required spacing with side-by-side mounting | |
| ● at AWG cables for control circuit solid | 2x (24 ... 16) |
| ● during operation according to IEC 60721 | 3K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6 |
| ● during transport according to IEC 60721 | 2K2, 2C1, 2S1, 2M2 (max. fall height 0.3 m) |
| ● of communication module PROFIBUS usable | 3RW5980-0CP00 |
| buffering time in the event of power failure | |
| recovery time after overload trip adjustable | 60 ... 1 800 s |
| type of connectable conductor cross-sections | |
| type of voltage of the control supply voltage | AC/DC |
| ● evaluation of thermistor motor protection | Yes; Type A PTC or Klixon / Thermoclick |
| ● number of digital outputs parameterizable | 3 |
| ● of communication module Modbus RTU usable | 3RW5980-0CR00 |
| ● of communication module Modbus TCP usable | 3RW5980-0CT00 |
| maximum permissible voltage for safe isolation | |
| ● creep speed in both directions of rotation | Yes |
| ● soft starting at heavy starting conditions | Yes |
| holding current in bypass operation rated value | 1 100 mA |
| switching capacity current of the relay outputs | |
| utilization category according to IEC 60947-4-2 | AC 53a |
| ● for main contacts with screw-type terminals | 20 ... 35 N·m |
| power loss [W] at AC at current limitation 350 % | |
| product feature integrated bypass contact system | Yes |
| ● for DIN cable lug for main contacts stranded | 2x (50 ... 240 mm²) |
| ● number of digital outputs not parameterizable | 1 |
| control supply current in standby mode rated value | 440 mA |
| power loss [W] for rated value of the current at AC | |
| ● with conductor cross-section = 0.5 mm² maximum | 50 m |
| ● with conductor cross-section = 1.5 mm² maximum | 150 m |
| ● with conductor cross-section = 2.5 mm² maximum | 250 m |
| Region Specific PriceGroup / Headquarter Price Group | 42S / 42S |
| contact rating of auxiliary contacts according to UL | R300-B300 |
| relative negative tolerance of the operating voltage | -15 % |
| relative positive tolerance of the operating voltage | 10 % |
| ● of communication module PROFINET standard usable | 3RW5980-0CS00 |
| design of short-circuit protection for control circuit | 4 A gG fuse (Icu=1 kA), 6 A quick-acting fuse (Icu=1 kA), C1 miniature circuit breaker (Icu= 600 A), C6 miniature circuit breaker (Icu= 300 A); Is not part of scope of supply |
| relative negative tolerance of the operating frequency | -10 % |
| relative positive tolerance of the operating frequency | 10 % |
| installation altitude at height above sea level maximum | 5 000 m; Derating as of 1000 m, see catalog |
| locked-rotor current at close of bypass contact maximum | 6.7 A |
| protection class IP on the front according to IEC 60529 | IP00 |
| ● for DIN cable lug for main contacts finely stranded | 2x (70 ... 240 mm²) |
| ● of communication module PROFINET high-feature usable | 3RW5950-0CH00 |
| type of protection according to ATEX directive 2014/34/EU | II (2)G [Ex eb Gb] [Ex db Gb] [Ex pxb Gb],II (2)D [Ex tb Db] [Ex pxb Db],I (M2) [Ex db Mb] |
| — usable for High Faults up to 575/600 V according to UL | Type: Class J / L, max. 3000 A; Iq = 100 kA |
| ● at 230 V at inside-delta circuit at 40 °C rated value | 560 kW |
| ● at 400 V at inside-delta circuit at 40 °C rated value | 1 000 kW |
| — usable for Standard Faults up to 575/600 V according to UL | Type: Class J / L, max. 3000 A; Iq = 85 kA |
| ● at 200/208 V at inside-delta circuit at 50 °C rated value | 600 hp |
| ● at 220/230 V at inside-delta circuit at 50 °C rated value | 700 hp |
| ● at 460/480 V at inside-delta circuit at 50 °C rated value | 1 500 hp |
| relative negative tolerance of the control supply voltage at DC | -20 % |
| relative positive tolerance of the control supply voltage at DC | 20 % |
| hardware fault tolerance according to IEC 61508 relating to ATEX | 0 |
| ● for auxiliary and control contacts with screw-type terminals | 0.8 ... 1.2 N·m |
| ● for control circuit finely stranded with core end processing | 2x (0.25 ... 1.5 mm²) |
| PFHD with high demand rate according to EN 62061 relating to ATEX | 0.0000005 1/h |
| PFDavg with low demand rate according to IEC 61508 relating to ATEX | 0.008 |
| relative negative tolerance of the control supply voltage frequency | -10 % |
| relative positive tolerance of the control supply voltage frequency | 10 % |
| Safety Integrity Level (SIL) according to IEC 61508 relating to ATEX | SIL1 |
| inrush current peak at application of control supply voltage maximum | 7.5 A |
| Compliance with the substance restrictions according to RoHS directive | Since: 11.02.2019 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Dodecachloropentacyclo[12... > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Dodecachloropentacyclo[12.2.1.16,9.02,13.05,10]octadeca-7,15-diene (“Dechlorane Plus”™)covering any of its individual anti- and syn-isomers or any combination thereofBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Dicyclohexyl phthala... CAS-No. 84-61-7 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Dicyclohexyl phthalate (DCHP)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.2-methyl-1-(4-methyl... CAS-No. 71868-10-5 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-oneBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| duration of inrush current peak at application of control supply voltage | 20 ms |
| relative negative tolerance of the control supply voltage at AC at 50 Hz | -20 % |
| relative negative tolerance of the control supply voltage at AC at 60 Hz | -20 % |
| relative positive tolerance of the control supply voltage at AC at 50 Hz | 20 % |
| relative positive tolerance of the control supply voltage at AC at 60 Hz | 20 % |
| ● of back-up R fuse link for semiconductor protection usable up to 690 V | 3x3NE3340-8; Type of coordination 2, Iq = 65 kA |
| relative negative tolerance of the operating voltage at inside-delta circuit | -15 % |
| relative positive tolerance of the operating voltage at inside-delta circuit | 10 % |
| ● of full range R fuse link for semiconductor protection usable up to 690 V | 3NB3354-1KK26; Type of coordination 2, Iq = 65 kA |
| ● at AWG cables for control circuit finely stranded with core end processing | 2x (24 ... 16) |
| — usable for High Faults at inside-delta circuit up to 575/600 V according to UL | Type: Class J / L, max. 3000 A; Iq = 100 kA |
| — usable for Standard Faults at inside-delta circuit up to 575/600 V according to UL | Type: Class J / L, max. 3000 A; Iq = 85 kA |
| T1 value for proof test interval or service life according to IEC 61508 relating to ATEX | 3 s |
| General Product ApprovalEMCConfirmationFor use in hazardous locationsDeclaration of ConformityTest CertificatesMarine / ShippingType Test Certificates/Test ReportMarine / ShippingotherConfirmation | General Product Approval |
Product Description
Soft starters SIRIUS 200-480 V 1100 A, 24 V AC/DC spring terminals. Manufactured to order. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
