3RV2811-0BD10

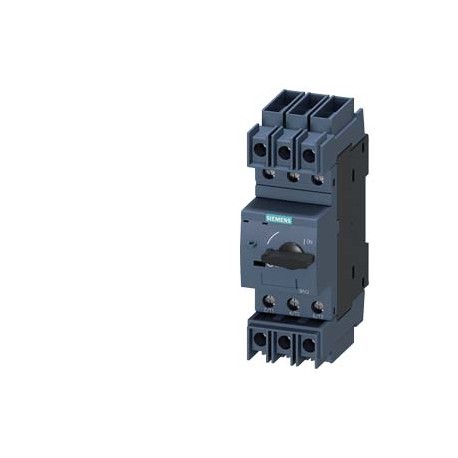

3RV2811-0BD10 SIEMENS Circuit breaker size S00 for transformer protection with approval circuit breaker UL 4..
$0.00USD
4532 in stock
Key Specifications
:VersionClassificationeClass627-37-04-09eClass7.127-37-04-09eClass827-37-04-09eClass927-37-04-09eClass9.127-37-04-09ETIM5EC000228ETIM6EC000228ETIM7EC000228ETIM8EC000228IDEA44850UNSPSC1439-12-15-21UNSPSC1539-12-16-01
EAN:4011209767744
UPC:662643922875
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-04-09eClass7.127-37-04-09eClass827-37-04-09eClass927-37-04-09eClass9.127-37-04-09ETIM5EC000228ETIM6EC000228ETIM7EC000228ETIM8EC000228IDEA44850UNSPSC1439-12-15-21UNSPSC1539-12-16-01 | |
| EAN | 4011209767744 |
| UPC | 662643922875 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R711 |
| Metal Factor | LAO----- |
| Product Group | 5332 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362010 |
| Product family | SIRIUS 3RV2 motor starter protectors |
| Net Weight (kg) | 0,436 Kg |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| Packaging Dimension | 55,00 x 191,00 x 110,00 |
| Product Description | Circuit breaker size S00 for transformer protection with approval circuit breaker UL 489, CSA C22.2 No.5-02 A-release 0.2 A N-release 4.2 A screw terminal Standard switching capacity |
| Product Lifecycle (PLM) | PM300:Active Product |
| Rated voltage (EF003977) | - |
| Export Control Regulations | AL : N / ECCN : N |
| Number of poles (EF001391) | 3 |
| Standard lead time ex-works | 70 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Motor drive optional (EF007386) | false |
| Motor drive integrated (EF006697) | false |
| Type of control element (EF006976) | Toggle |
| Degree of protection (IP) (EF005474) | IP20 |
| Article Number (Market Facing Number) | 3RV2811-0BD10 |
| Rated permanent current Iu (EF001389) | 0.2 |
| With under voltage release (EF007518) | false |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| With switched-off indicator (EF007006) | false |
| Overload release current setting (EF002336) | ['-', '-'] |
| Integrated earth fault protection (EF007296) | false |
| Complete device with protection unit (EF008906) | - |
| DIN rail (top hat rail) mounting optional (EF008904) | - |
| Region Specific PriceGroup / Headquarter Price Group | 41E / 41E |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | FALSE |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Position of connection for main current circuit (EF006671) | Other |
| Adjustment range undelayed short-circuit release (EF007131) | ['4.2', '4.2'] |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Adjustment range short-term delayed short-circuit release (EF007129) | ['-', '-'] |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (EF007048) | 100.0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2009 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
