3RV2121-4CA10

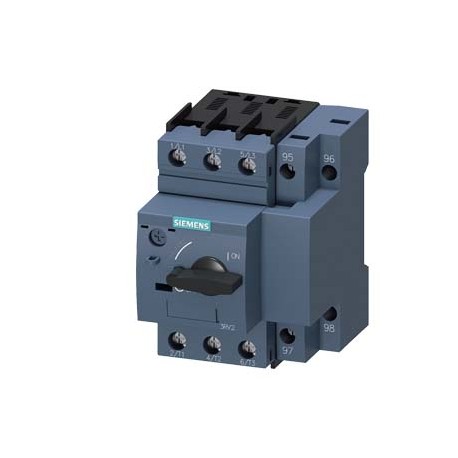

3RV2121-4CA10 SIEMENS Circuit breaker size S0 for motor protection, CLASS 10 with overload relay function A-..
$0.00USD
3357 in stock
Key Specifications
:VersionClassificationeClass627-37-04-01eClass7.127-37-04-01eClass827-37-04-01eClass927-37-04-01eClass9.127-37-04-01ETIM5EC000074ETIM6EC000074ETIM7EC000074ETIM8EC000074IDEA44845UNSPSC1439-12-15-21UNSPSC1539-12-16-01
EAN:4011209716438
UPC:662643923179
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-04-01eClass7.127-37-04-01eClass827-37-04-01eClass927-37-04-01eClass9.127-37-04-01ETIM5EC000074ETIM6EC000074ETIM7EC000074ETIM8EC000074IDEA44845UNSPSC1439-12-15-21UNSPSC1539-12-16-01 | |
| EAN | 4011209716438 |
| UPC | 662643923179 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R711 |
| Metal Factor | LBP----- |
| Product Group | 5333 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362090 |
| Product family | SIRIUS 3RV2 motor starter protectors |
| Net Weight (kg) | 0,422 Kg |
| Depth (EF000049) | 97.0 |
| Width (EF000008) | 65.0 |
| Country of origin | Germany |
| Height (EF000040) | 97.0 |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| Packaging Dimension | 72,50 x 108,00 x 104,50 |
| Product Description | Circuit breaker size S0 for motor protection, CLASS 10 with overload relay function A-release 16...22 A N-release 286 A screw terminal Standard switching capacity |
| Product Lifecycle (PLM) | PM300:Active Product |
| Export Control Regulations | AL : N / ECCN : N |
| Number of poles (EF001391) | 3 |
| Standard lead time ex-works | 70 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Switch off technique (EF007007) | Magnetic |
| Phase failure sensitive (EF007400) | true |
| Rated operating voltage (EF001435) | ['690', '690'] |
| Type of control element (EF006976) | Turn button |
| With thermal protection (EF006233) | thermal |
| Degree of protection (IP) (EF005474) | IP20 |
| Article Number (Market Facing Number) | 3RV2121-4CA10 |
| Rated permanent current Iu (EF001389) | 22.0 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Overload release current setting (EF002336) | ['16', '22'] |
| With integrated auxiliary switch (EF001387) | true |
| Rated operation power at AC-3, 230 V (EF007025) | 5.5 |
| Rated operation power at AC-3, 400 V (EF001364) | 11.0 |
| With integrated under voltage release (EF001390) | false |
| Region Specific PriceGroup / Headquarter Price Group | 41E / 41E |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Adjustment range undelayed short-circuit release (EF007131) | ['286', '286'] |
| Rated short-circuit breaking capacity lcu at 400 V, AC (EF007049) | 55.0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2009 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
