3RV2011-1JA40

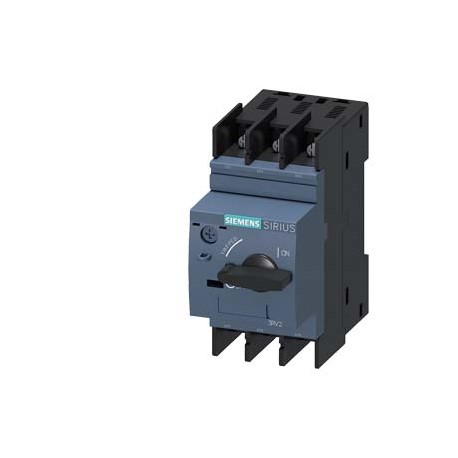

3RV2011-1JA40 SIEMENS Circuit breaker size S00 for motor protection, CLASS 10 A-release 7...10 A N release 1..
$0.00USD
4086 in stock
Key Specifications
:
EAN:4011209767102
UPC:662643924169
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209767102 |
| UPC | 662643924169 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 97 mm |
| width | 45 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 97 mm |
| B10 value | |
| Group Code | R711 |
| trip class | CLASS 10 |
| — upwards | 30 mm |
| ● at AC-3 | |
| Metal Factor | LAP----- |
| — forwards | 0 mm |
| ● at 400 V | gL/gG 50 A |
| ● at 500 V | gL/gG 40 A |
| ● at 690 V | gL/gG 40 A |
| Date5/12/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5332 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| — backwards | 0 mm |
| — downwards | 30 mm |
| Commodity Code | 85362090 |
| Product family | SIRIUS 3RV2 motor starter protectors |
| last modified: | 1/27/2022 |
| Net Weight (kg) | 0,380 Kg |
| operating power | |
| — at the side | 9 mm |
| ● rated value | 690 V |
| Depth (EF000049) | 97.0 |
| Width (EF000008) | 45.0 |
| fastening method | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715 |
| product function | |
| required spacing | |
| Country of origin | Germany |
| Height (EF000040) | 97.0 |
| Marine / Shipping | other |
| mounting position | any |
| operating voltage | |
| tightening torque | |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| failure rate [FIT] | |
| product brand name | SIRIUS |
| ● during storage | -50 ... +80 °C |
| Packaging Dimension | 49,00 x 102,00 x 102,00 |
| Product Description | Circuit breaker size S00 for motor protection, CLASS 10 A-release 7...10 A N release 130 A ring cable lug connection Standard switching capacity |
| ambient temperature | |
| operating frequency | |
| operational current | |
| product designation | Circuit breaker |
| ● at AC-3 maximum | 15 1/h |
| ● during operation | -20 ... +60 °C |
| ● during transport | -50 ... +80 °C |
| design of the product | For motor protection |
| ● for main contacts | M3 |
| Product Lifecycle (PLM) | PM300:Active Product |
| product type designation | 3RV2 |
| temperature compensation | -20 ... +60 °C |
| — at 230 V rated value | 2.2 kW |
| — at 400 V rated value | 4 kW |
| — at 500 V rated value | 5.5 kW |
| — at 690 V rated value | 7.5 kW |
| ● at 240 V rated value | 100 kA |
| ● at 400 V rated value | 100 kA |
| ● at 480 V rated value | 10 A |
| ● at 500 V rated value | 42 kA |
| ● at 600 V rated value | 10 A |
| ● at 690 V rated value | 4 kA |
| ● for 3-phase AC motor | |
| Export Control Regulations | AL : N / ECCN : N |
| Number of poles (EF001391) | 3 |
| ● ground fault detection | No |
| Standard lead time ex-works | 70 Day/Days |
| Surcharge for Raw Materials | None |
| design of screwdriver shaft | Diameter 5 to 6 mm |
| size of the circuit-breaker | S00 |
| size of the screwdriver tip | size 2 and Pozidriv 2 |
| ● for live parts at 400 V | |
| ● for live parts at 500 V | |
| ● for live parts at 690 V | |
| ● phase failure detection | Yes |
| Package size unit of measure | MM |
| — at 110/120 V rated value | 0.5 hp |
| — at 200/208 V rated value | 2 hp |
| — at 220/230 V rated value | 3 hp |
| — at 460/480 V rated value | 5 hp |
| — at 575/600 V rated value | 10 hp |
| ● for main current circuit | Ring cable lug connection |
| Substance Prohibitance (Date) | 10/01/2009 |
| type of electrical connection | |
| ● for single-phase AC motor | |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| For use in hazardous locations | Declaration of Conformity |
| design of the overload release | thermal |
| ● at AC at 240 V rated value | 100 kA |
| ● at AC at 400 V rated value | 100 kA |
| ● at AC at 500 V rated value | 42 kA |
| ● at AC at 690 V rated value | 6 kA |
| Switch off technique (EF007007) | Magnetic |
| operating frequency rated value | 50 ... 60 Hz |
| operational current rated value | 10 A |
| ● at AC-3 rated value maximum | 690 V |
| ● for grounded parts at 400 V | |
| ● for grounded parts at 500 V | |
| ● for grounded parts at 690 V | |
| design of the short-circuit trip | magnetic |
| proportion of dangerous failures | |
| ● at AC in hot operating state | 9.25 W |
| ● at AC-3 at 400 V rated value | 10 A |
| ● of the main contacts typical | 100 000 |
| ● of auxiliary contacts typical | 100 000 |
| Phase failure sensitive (EF007400) | true |
| Rated operating voltage (EF001435) | ['690', '690'] |
| Type of control element (EF006976) | Turn button |
| With thermal protection (EF006233) | thermal |
| product extension auxiliary switch | Yes |
| relative humidity during operation | 10 ... 95 % |
| yielded mechanical performance [hp] | |
| Degree of protection (IP) (EF005474) | IP00 |
| display version for switching status | Handle |
| surge voltage resistance rated value | 6 kV |
| Article Number (Market Facing Number) | 3RV2011-1JA40 |
| Rated permanent current Iu (EF001389) | 10.0 |
| ● for auxiliary and control circuit | ring terminal lug connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● between main and auxiliary circuit | 400 V |
| reference code according to IEC 81346-2 | Q |
| number of poles for main current circuit | 3 |
| ● for main contacts for ring cable lug | 0.8 ... 1.2 N·m |
| product function short circuit protection | Yes |
| ● at AC in hot operating state per pole | 3.1 W |
| ● of the auxiliary and control contacts | M3 |
| mechanical service life (switching cycles) | |
| Overload release current setting (EF002336) | ['7', '10'] |
| With integrated auxiliary switch (EF001387) | false |
| design of the thread of the connection screw | |
| full-load current (FLA) for 3-phase AC motor | |
| number of CO contacts for auxiliary contacts | 0 |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| shock resistance according to IEC 60068-2-27 | 25g / 11 ms |
| power loss [W] for rated value of the current | |
| ● for auxiliary contacts for ring cable lug | 1.2 ... 0.8 N·m |
| ● with low demand rate according to SN 31920 | 50 % |
| Rated operation power at AC-3, 230 V (EF007025) | 2.2 |
| Rated operation power at AC-3, 400 V (EF001364) | 4.0 |
| electrical endurance (switching cycles) typical | 100 000 |
| ● with high demand rate according to SN 31920 | 5 000 |
| With integrated under voltage release (EF001390) | false |
| size of contactor can be combined company-specific | S00, S0 |
| outer diameter of the usable ring cable lug maximum | 7.5 mm |
| Region Specific PriceGroup / Headquarter Price Group | 41E / 41E |
| breaking capacity maximum short-circuit current (Icu) | |
| installation altitude at height above sea level maximum | 2 000 m |
| protection class IP on the front according to IEC 60529 | IP00 |
| Type of electrical connection of main circuit (EF006819) | Other |
| type of protection according to ATEX directive 2014/34/EU | Ex II (2) GD |
| Adjustment range undelayed short-circuit release (EF007131) | ['130', '130'] |
| arrangement of electrical connectors for main current circuit | Top and bottom |
| breaking capacity operating short-circuit current (Ics) at AC | |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| response value current of instantaneous short-circuit trip unit | 130 A |
| Rated short-circuit breaking capacity lcu at 400 V, AC (EF007049) | 100.0 |
| certificate of suitability according to ATEX directive 2014/34/EU | DMT 02 ATEX F 001 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2009 |
| product component removable terminal for auxiliary and control circuit | No |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| adjustable current response value current of the current-dependent overload release | 7 ... 10 A |
| maximum permissible voltage for safe isolation in networks with grounded star point | |
| design of the fuse link for IT network for short-circuit protection of the main circuit | |
| General Product ApprovalConfirmationKCFor use in hazardous locationsDeclaration of ConformityTest CertificatesUK Declaration of ConformityType Test Certificates/Test ReportSpecial Test CertificateMarine / ShippingMarine / ShippingotherRailwayConfirmationVibration and ShockConfirmation | General Product Approval |
